Investment Casting Equipment Technologies at Precisionvast

Discover advanced investment casting equipment and precision foundry technology at Precisionvast for high tolerance lost wax castings.

Precision Wax Pattern Creation and Tooling

The integrity of every cast component begins with the accuracy of the wax pattern. We provide specialized investment casting equipment engineered to produce dimensionally stable patterns that meet the rigorous standards of the aerospace, medical, and automotive sectors.

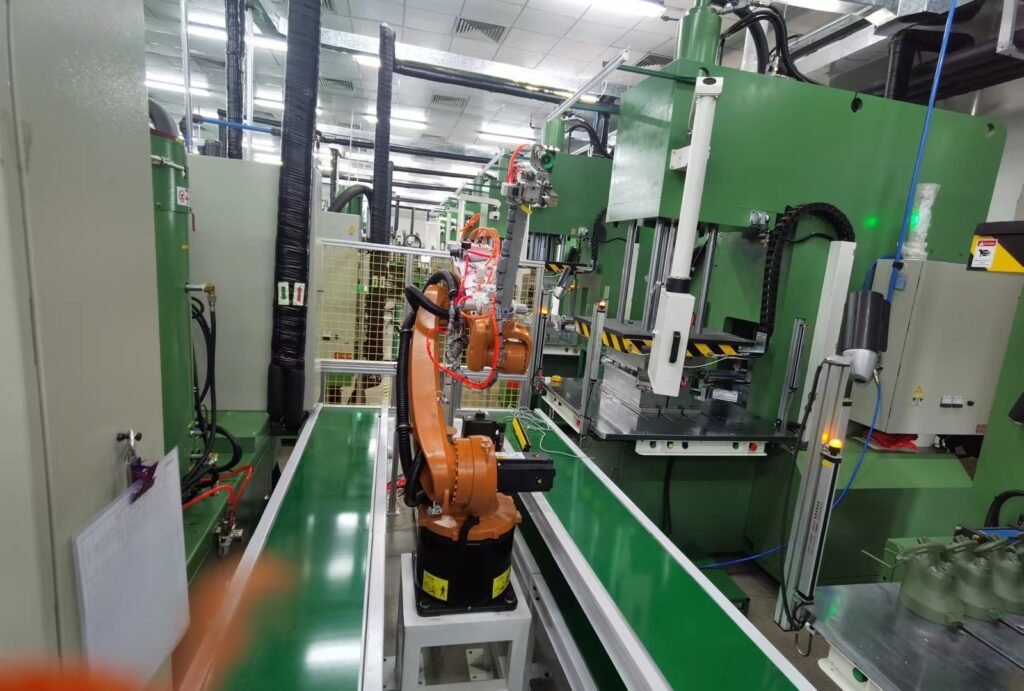

High-Performance Wax Injection Machines

Our wax injection machines are designed for high-volume repeatability and precision. By integrating advanced PLC controls, these units maintain optimal temperature and pressure to eliminate common defects like air entrapment or excessive shrinkage.

• Automated Wax Injectors: Features programmable cycles for consistent pattern density.
• C-Frame and Four-Column Wax Presses: Provides the necessary clamping force for large-scale lost wax casting equipment requirements.
• Precision Temperature Control: Ensures the wax injector maintains a constant viscosity for uniform mold filling.

CNC Wax Pattern Tooling for Complex Geometries

To handle intricate internal geometries and tight tolerances, we utilize high-grade CNC wax pattern tooling. Our mold-making process focuses on durability and thermal stability to ensure long-term production accuracy.

Equipment Type	Primary Function	Advantage
Wax Injection Molding Machine	Pattern formation	High-speed, repeatable cycles
Automated Assembly Machines	Tree building	Reduced labor and breakage
Multi-Cavity CNC Dies	Mass production	Lower per-part costs

Our investment casting machinery range includes everything from standalone wax press machines to fully automated cells, ensuring your foundry has the tools to produce complex, near-net-shape patterns with zero deviation.

Ceramic Shell Building Systems and Automation

We know that the shell is the backbone of a successful pour. Our ceramic shell building systems are engineered to deliver the precision needed for high-stakes industrial parts. By integrating robotic shell making arms, we eliminate the human error often found in manual dipping, ensuring a uniform coating every single time. This level of consistency is critical when working with the various metals commonly used in investment casting, as the shell must withstand specific thermal stresses without failing.

Automated Slurry Tanks and Coating Consistency

A solid automated investment casting line relies on maintaining the perfect slurry consistency. Our equipment is designed to handle the grit of a 24/7 foundry environment while maintaining tight tolerances.

• Variable-Speed Slurry Tanks: Constant agitation prevents settling and ensures a homogeneous mix.
• Rainfall Sanders: Precise stucco application provides optimal shell strength and permeability.
• Climate-Controlled Drying: Focused airflow systems speed up turnaround times without risking mold cracks.

High-Precision Foundry Equipment for Scalability

For shops looking to scale, moving away from manual dipping is the only way to stay competitive in the United States market. We focus on high precision foundry equipment that reduces waste and improves the surface finish of the final part.

Equipment Type	Key Feature	Benefit
Robotic Arm	6-Axis Motion	Uniform coating on complex, deep-cavity geometries
Slurry Tank	Viscosity Monitoring	Stable chemical composition for every batch
Automated Conveyor	Indexed Movement	Controlled drying cycles to prevent shell delamination

By utilizing a professional-grade ceramic shell building system, you ensure that your molds are robust enough for heavy alloys while remaining precise enough for delicate aerospace or medical components.

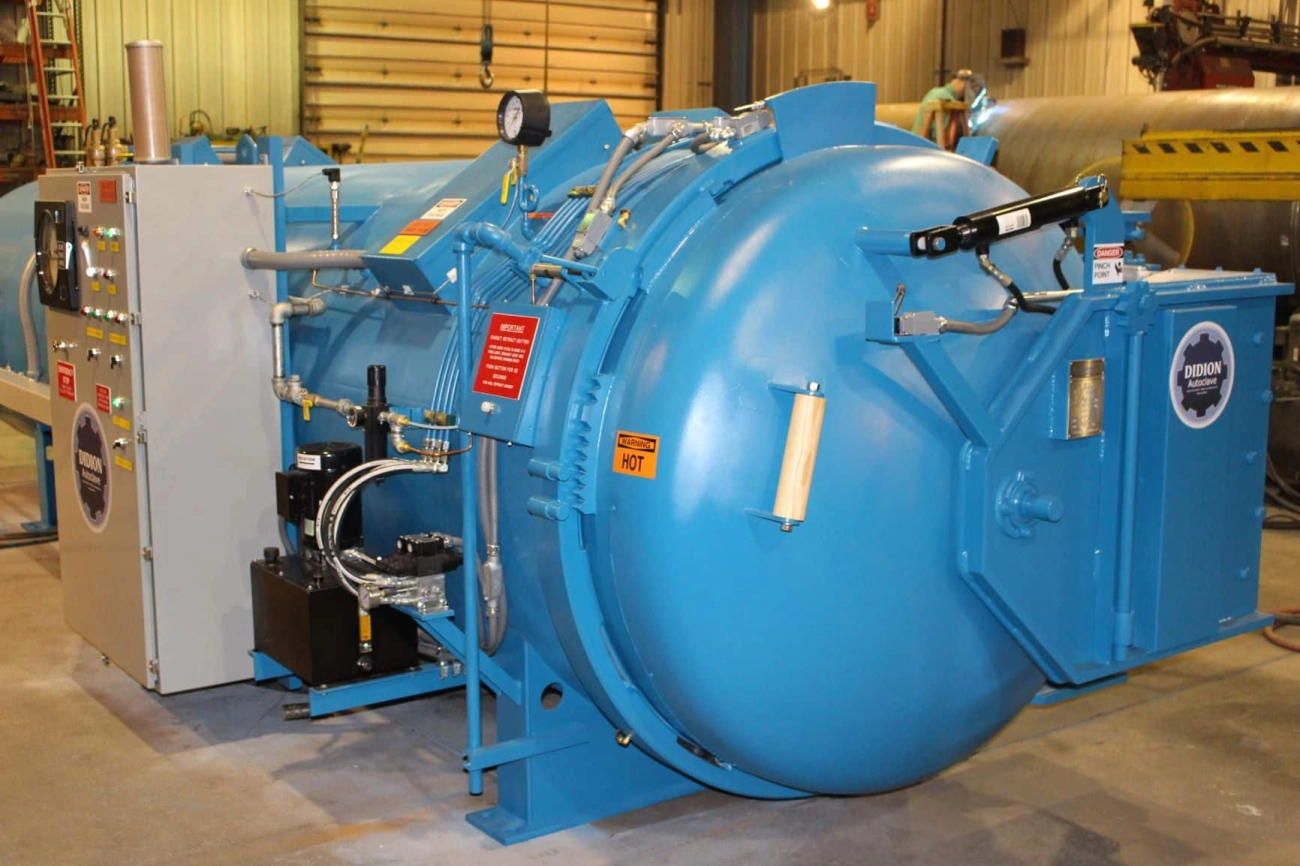

High-Pressure Dewaxing and Mold Preheating Systems

I understand that the integrity of the ceramic shell is everything in this business. To ensure defect-free molds, we rely on high-pressure dewaxing autoclaves that use saturated steam to melt the wax out quickly. By equalizing the pressure, we prevent the wax from expanding and cracking the shell, which is a common headache in lower-end setups. This specialized investment casting equipment is the backbone of a scrap-reduction strategy.

Flash-Fire Systems and Thermal Prep

Once the bulk of the wax is recovered, we move to flash-fire systems. These units are designed to reach intense temperatures almost instantly, burning off any microscopic residue while strengthening the ceramic bond. This stage is vital for maintaining the strict tolerances required for high-performance cast aluminum properties and complex steel alloys.

• Steam Autoclaves: Feature quick-opening doors and automated cycles for maximum safety and wax recovery.
• Flash-Fire Furnaces: Eliminate shell “shell-out” defects by rapidly heating the mold to its vitrification point.
• Energy Efficiency: Our modern dewaxing autoclave units are insulated to retain heat, cutting down on utility costs for US foundries.

---

Key Equipment Benefits

Equipment Type	Primary Function	Impact on Quality
High-Pressure Autoclave	Bulk wax removal	Prevents shell cracking and allows wax recycling.
Flash-Fire Oven	Residual burnout	Ensures a clean cavity for zero-inclusion pours.
Preheating Furnace	Thermal stabilization	Reduces thermal shock when the molten metal hits the mold.

Properly preheated molds are non-negotiable for achieving thin-walled geometries. We focus on systems that offer precise atmospheric control, ensuring every mold is bone-dry and thermally stable before it reaches the pouring station.

Precision Melting and Pouring Technologies

We rely on high-end investment casting equipment to manage the critical transition from molten metal to solid part. To handle the complex chemistry of high-performance alloys, our facility utilizes specialized vacuum induction melting (VIM) furnaces. This setup is non-negotiable for parts that require zero contamination and maximum fatigue strength.

Advanced Pouring for Superior Integrity

• Vacuum Induction Melting (VIM): A vacuum induction melting furnace is the gold standard for aerospace casting. By removing oxygen, we eliminate oxidation and hydrogen pick-up that can weaken the metal.
• Counter-Gravity Pouring: We implement counter-gravity pouring to draw molten metal upward into the shell. This technique significantly reduces turbulence and prevents slag or surface impurities from entering the mold.
• Induction Control: Our high precision foundry equipment allows for exact temperature regulation, ensuring consistent grain structures across every production run.

While some high-volume commercial projects are better suited for structural die casting, our melting and pouring tech is specifically tuned for the exotic metals and thin-walled geometries that define premium investment casting. We maintain total control over the melt to ensure every component performs exactly as engineered.

Post-Casting Finishing and Heat Treatment Investment Casting Equipment

Once the metal has solidified, the final steps of the process determine the structural integrity and surface quality of the part. We utilize specialized investment casting equipment designed to transition parts from raw molds to finished, high-performance components. Our facility relies on automated knockout systems that use high-frequency vibration and pneumatic power to strip away the ceramic shell quickly, protecting the delicate geometries of the underlying metal.

Automated Knockout and Surface Finishing

Efficient shell removal is non-negotiable for high-volume production. By integrating high precision foundry equipment into our finishing line, we reduce manual labor and ensure a consistent finish across every batch.

• Vibratory Knockout Machines: High-impact systems that shatter the ceramic shell in seconds.
• Abrasive Blasting Cabinets: Automated grit and bead blasting for a clean, uniform surface profile.
• Gate and Riser Removal: Precision plasma cutting or high-speed circular saws for clean detachment.

Multi-Purpose Heat Treatment Lines

To achieve specific mechanical properties, our investment casting machinery includes advanced thermal processing units. Whether it is normalizing, annealing, or case hardening, our multi-purpose heat treatment lines provide the exact thermal cycles needed. This stage is vital when processing heat-resistant metals for industrial applications to ensure the parts can withstand extreme operational environments.

Equipment Type	Function	Benefit
Atmosphere Furnaces	Controlled heating to prevent oxidation	Superior surface chemistry
Quenching Tanks	Rapid cooling in oil, water, or polymer	Increased hardness and strength
Stress Relieving Ovens	Gradual cooling to remove internal tension	Dimensional stability

Proper finishing and thermal processing are what separate a standard part from a high-performance component. By mastering the secrets of stainless steel investment casting, we ensure that every finished piece meets the rigorous standards of the U.S. industrial market.

Advanced Digital Tools for Investment Casting Equipment

We’ve integrated high-end digital workflows into our investment casting machinery to slash lead times and eliminate guesswork. By using CAE simulation in casting, we can visualize fluid flow and solidification before a single drop of metal is poured. This “virtual foundry” approach identifies potential porosity or shrinkage issues early, which is essential when working with specialized materials like best heat resistant metals for high temperature applications.

SLA 3D Printing for Rapid Prototyping

For projects requiring extreme speed or complex geometries that traditional CNC wax pattern tooling can’t easily handle, we utilize SLA 3D printing for prototyping. This allows us to move from a CAD file to a castable pattern in hours rather than weeks, bypassing the need for initial wax injection machines.

• Reduced R&D Costs: Skip expensive permanent tooling during the design and testing phases.
• Optimized Gating Systems: CAE tools refine the pouring process to ensure maximum density and structural integrity.
• Unmatched Design Freedom: 3D printing enables intricate lattice structures and undercuts that are nearly impossible to achieve with standard lost wax casting equipment.
• Faster Market Entry: Transition from digital concepts to physical precision casting tools with minimal lag time.

By combining these digital assets with our physical investment casting machinery, we provide a seamless bridge between complex engineering and high-volume production.

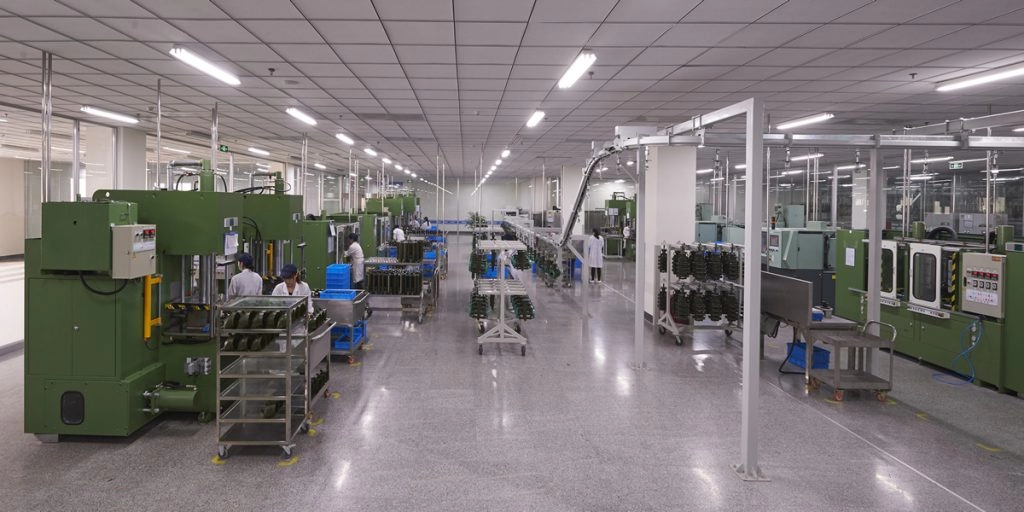

Quality Assurance and Investment Casting Equipment

We don’t leave precision to chance. Our investment casting equipment lineup includes a dedicated suite of inspection tools designed to meet the rigorous demands of the US aerospace, defense, and medical industries. Ensuring every part is “spec-perfect” is how we maintain our reputation for reliability.

Precision Metrology and Testing

We utilize advanced CMM inspection equipment to validate complex geometries against original CAD data. This ensures that even the most intricate parts fall within your required tolerances. For internal integrity, our X-ray testing for castings identifies subsurface porosity or inclusions that the naked eye simply can’t see.

• Coordinate Measuring Machines (CMM): High-speed automated probing for 100% dimensional verification.
• Non-Destructive Testing (NDT): Digital X-ray and fluorescent penetrant inspection (FPI) to catch structural flaws.
• Material Validation: We consistently analyze physical properties of heat-resistant alloys to ensure the metal chemistry matches your exact performance needs.

Compliance and Standards

Operating as a high precision foundry equipment provider means adhering to the gold standards of manufacturing. Our inspection protocols are built around ISO9001 compliance, providing the full traceability and documentation our domestic partners expect.

Inspection Type	Equipment Used	Key Benefit
Dimensional	Bridge-style CMM	Guarantees tight tolerances
Structural	Digital Radiography (X-Ray)	Ensures defect-free internals
Chemical	Optical Emission Spectrometer	Confirms alloy composition

By integrating these quality checkpoints directly into our production flow, we eliminate the risk of late-stage failures and keep your projects on schedule.

Investment Casting Equipment FAQs: Automation, Costs, and Precision

We handle a lot of questions from partners looking to upgrade their foundries or start new lines. When you’re investing in investment casting machinery, you need to know exactly how the hardware impacts your bottom line and your part quality. Here are the most common queries we see regarding modern lost wax casting equipment.

Common Industry Questions

• Is an automated investment casting line worth the initial cost?
  Absolutely. While the upfront price for robotic shell making and automated assembly machines is higher, the ROI comes from a massive reduction in scrap rates. Automation ensures every ceramic layer is uniform, which is hard to replicate manually.
• How does SLA 3D printing for prototyping change the workflow?
  It bypasses the need for permanent CNC wax pattern tooling during the R&D phase. We use it to print patterns directly, allowing for rapid design tweaks without the lead time of cutting metal dies.
• What drives the price of a vacuum induction melting furnace?
  Cost is usually dictated by melt capacity and the level of vacuum control. If you are working with high-temperature alloy casting, a high-spec VIM furnace is non-negotiable for preventing oxidation.
• What kind of tolerances can I expect from high precision foundry equipment?
  With a well-calibrated wax injection molding machine and stable slurry conditions, we consistently see linear tolerances within ±0.003 to ±0.005 inches per inch.

Equipment Comparison & Performance

Equipment	Core Function	Impact on Quality
Wax Injector	Creates the initial pattern	Defines the base dimensional accuracy.
Dewaxing Autoclave	Removes wax via high-pressure steam	Prevents shell cracking and mold defects.
CMM Inspection Equipment	Dimensional verification	Ensures ISO9001 compliance for every batch.
X-ray Testing for Castings	Internal structural audit	Detects sub-surface porosity and inclusions.

Precision and Quality Control

We get asked frequently about maintaining tight tolerances over long production runs. The secret lies in the synergy between your precision casting tools and your inspection suite. To get a better sense of how these tools interact from start to finish, you can view a complete overview of the casting process to see where each piece of machinery fits.

Using CAE simulation in casting before we even power up the wax press machine allows us to predict shrinkage and thermal stress. This “digital twin” approach, combined with X-ray testing, ensures that the final product coming off our high precision foundry equipment meets the rigorous standards required by the aerospace and medical industries in the United States.
