Why Choose Titanium Investment Casting?

When we evaluate materials for mission-critical applications, the conversation often begins and ends with titanium. As engineers, we face the constant pressure of reducing mass without sacrificing structural integrity. Titanium investment casting provides the most efficient path to achieving near-net-shape components that survive environments where steel and aluminum simply fail.

Superior Strength-to-Weight Ratio

In the aerospace sector, every gram counts. Titanium offers a tensile strength comparable to many alloy steels but at approximately 57% of the weight. By utilizing Titanium Lost-Wax Casting, we produce complex geometries that optimize load paths, allowing for high-performance structural brackets and engine components that significantly reduce fuel consumption and increase payload capacity.

Exceptional Corrosion Resistance

Our titanium castings are virtually immune to environmental attack. Unlike stainless steel, which can suffer from pitting in chloride-rich environments, titanium forms a stable, protective oxide film instantaneously upon exposure to air or moisture.

• Marine Applications: Total resistance to saltwater and seafloor environments.
• Chemical Processing: Outstanding performance in highly acidic or alkaline media.
• Longevity: Reduced lifecycle costs due to minimal maintenance and zero rust.

Medical Grade Biocompatibility

For the healthcare industry, titanium is the “gold standard.” It is non-toxic and non-allergenic, but more importantly, it possesses unique osteointegration properties, allowing bone to knit directly to the metal surface. We specialize in producing Biocompatible Titanium Parts for:

• Orthopedic joint replacements (hips, knees).
• Dental implants and root structures.
• High-precision surgical instrumentation.

---

Material Spotlight: Grade 5 vs. Commercially Pure (CP)

Choosing the right alloy is critical for metallurgical integrity. We typically focus on two primary categories:

Property	CP Titanium (Grade 2)	Grade 5 Alloy ($Ti6Al4V$)
Composition	99%+ Pure Ti	90% Ti, 6% Al, 4% V
Tensile Strength	~480 MPa	~895 MPa (and higher)
Ductility	High (Excellent formability)	Moderate
Best For	Chemical tanks, heat exchangers	Aerospace Grade Casting, engine parts
Corrosion Resistance	Highest	Exceptional

For most high-stress industrial applications, $Ti6Al4V$ Grade 5 Alloy is our recommendation due to its superior mechanical properties and heat-treatable nature. However, for applications requiring maximum corrosion resistance and formability, Commercially Pure options remain a staple in our foundry.

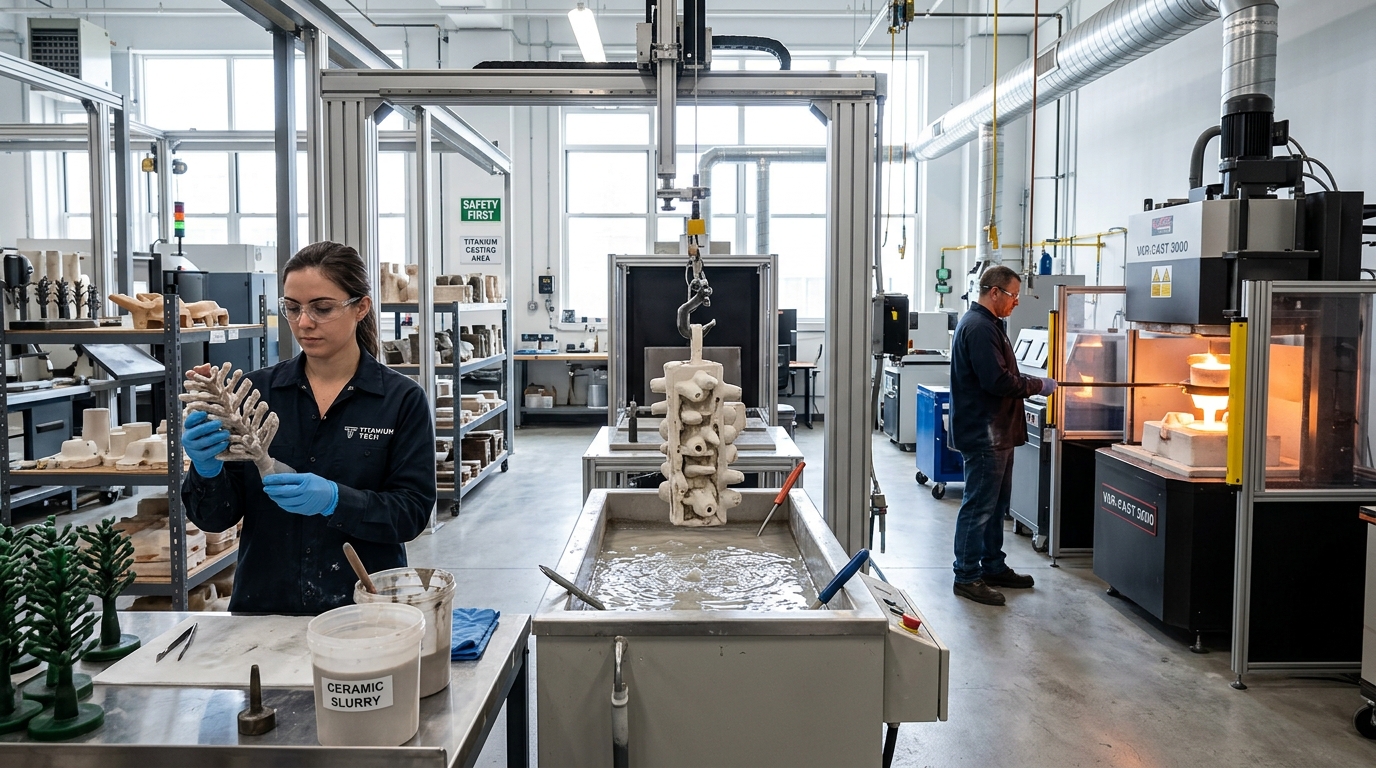

The PrecisionVast Technical Workflow: From Digital Twin to Pour

We don’t leave the success of your titanium investment project to chance. Our workflow integrates advanced digital modeling with high-vacuum foundry physics to ensure every part meets the strictest aerospace and medical standards.

CAE Casting Simulation & Digital Twins

Before we even touch a drop of molten metal, we run full Computer-Aided Engineering (CAE) simulations. By creating a digital twin of the mold, we can visualize the fluid dynamics and thermal gradients of the pour. This allows us to:

• Predict and prevent common defects in titanium investment casting like porosity or shrinkage.
• Optimize gating systems for a smooth, laminar flow.
• Ensure structural integrity in complex geometries.

In-House Tooling and Rapid Prototyping

Speed is everything in the US market. We operate a dedicated In-House Tooling Workshop where we design and manufacture proprietary wax injection dies. For R&D phases or low-volume runs, we utilize SLA 3D printing to create high-precision wax patterns, bypassing traditional tooling costs and cutting weeks off the development cycle. Understanding these investment casting tooling techniques is key to reducing your time-to-market.

Vacuum Induction Melting (VIM)

Titanium is highly reactive; if it touches oxygen or nitrogen while molten, the part is ruined. We utilize Vacuum Induction Melting (VIM) to maintain a pristine environment.

Process Step	Technology Used	Benefit to Customer
Pattern Creation	SLA 3D Printing / Wax Injection	Faster R&D and precision patterns
Mold Simulation	CAE Software	Eliminates internal defects before casting
Melting	Vacuum Induction Melting (VIM)	Prevents atmospheric contamination
Centrifugal Casting	High-Speed Rotation	Ensures complete filling of thin-walled parts

By combining Near-Net-Shape Casting accuracy with a controlled vacuum environment, we deliver titanium investment components that require minimal secondary machining, saving you both material costs and processing time. Our focus on Vacuum Induction Melting (VIM) ensures that alloys like $Ti6Al4V$ Grade 5 maintain their superior mechanical properties without interstitial contamination.

Precision Capabilities and Titanium Investment Tolerances

We focus on delivering near-net-shape casting results that minimize the need for expensive, time-consuming CNC work. In the world of titanium investment, hitting the mark the first time isn’t just a goal—it’s our standard. We handle everything from tiny, intricate medical components to heavy-duty structural brackets for defense and aerospace.

Dimensional Accuracy & Standards

Our foundry operates with a “precision first” mentality, strictly adhering to ISO 8062 and ICI (Investment Casting Institute) international standards. Whether you are dealing with titanium lost-wax casting for a prototype or a high-volume production run, we maintain tight control over shrinkage and geometry to ensure every part fits your assembly perfectly.

• Linear Tolerances: Standard ±0.005 inch per inch, with tighter options available for critical zones.
• Surface Quality: Exceptional cast finishes that significantly reduce friction and material fatigue.
• Complex Geometries: Capability to cast thin-walled sections down to 0.040″ (1mm) without compromising strength.

To get a better handle on the specifics of what we can achieve, check out our complete guide on investment casting tolerances.

Production Envelope

We’ve scaled our precision metal foundry to accommodate a wide variety of part sizes and weight requirements:

Part Category	Typical Weight Range	Common Applications
Small Precision	0.01 – 5 lbs	Surgical tools, dental implants, sensors
Medium Structural	5 – 45 lbs	Fuel manifolds, pump housings, brackets
Large Components	Up to 150 lbs	Turbine housings, structural airframe parts

By utilizing high-grade titanium sponge processing and advanced vacuum technology, we ensure the metallurgical integrity of every part. Our workflow is designed to give you the most efficient path from a digital file to a finished, high-performance component.

❌ INTERNAL(13)

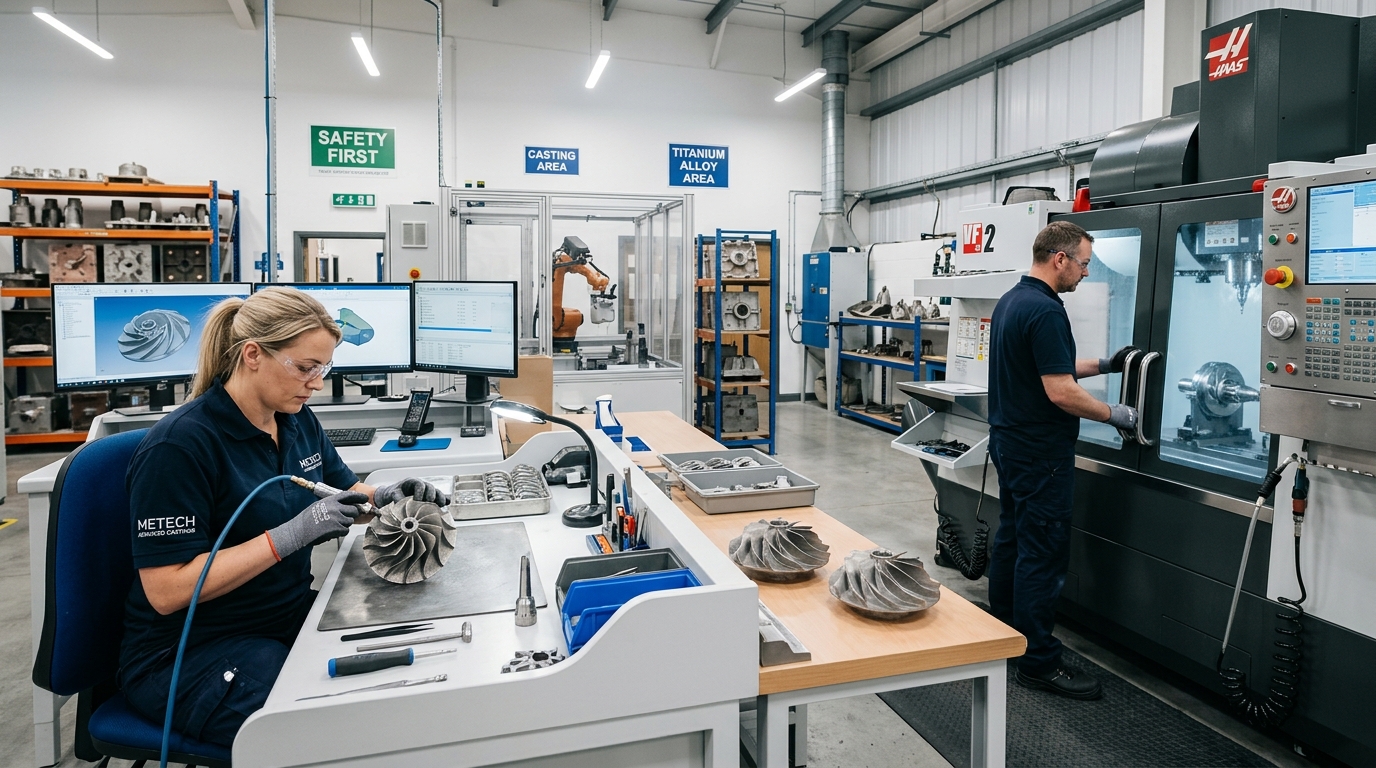

Turnkey Solutions for Titanium Investment Parts

We don’t just provide a raw casting; we deliver finished, ready-to-use components. Our vertically integrated workflow ensures that every titanium investment project meets your exact specifications without the hassle of managing multiple vendors. By handling everything from the initial pour to the final finish, we maintain strict control over quality and lead times.

Precision CNC Machining

While our castings offer excellent near-net shapes, certain critical interfaces require extreme accuracy. We utilize advanced CNC centers to achieve:

• Micron-level tolerances for high-stakes aerospace and medical applications.
• Complex geometry refinement for functional surfaces.
• Precision-drilled holes, threading, and ground finishes.

Heat Treatment & Metallurgical Tuning

To reach the peak mechanical performance of alloys like Ti6Al4V, we perform specialized in-house heat treatments. Mastering these processes is essential for understanding heat-resistant metals and how they behave under extreme thermal and mechanical stress.

• Annealing: Relieves internal stresses induced during the casting process.
• Ageing: Significantly increases hardness and tensile strength for high-load structural parts.

Professional Surface Finishing

We provide a variety of surface treatments to improve both the aesthetics and the functional longevity of your parts:

• Anodizing: Increases corrosion resistance and is often used for color-coding medical tools.
• Pickling & Passivation: Removes surface oxidation and contaminants to ensure a clean, biocompatible finish.
• Bead Blasting: Delivers a uniform, matte texture that eliminates surface imperfections.

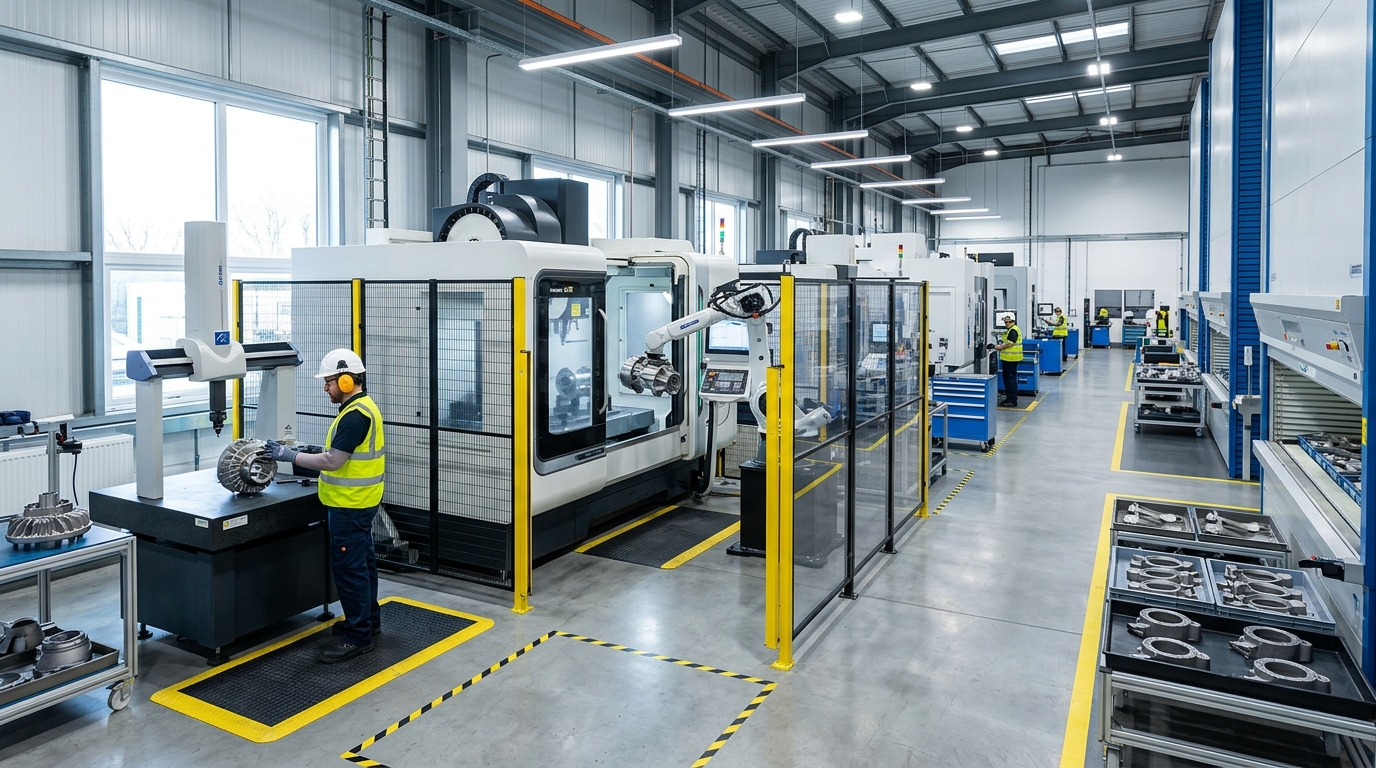

Industry Applications for Titanium Investment Castings

We deliver high-performance components to sectors where material integrity is the difference between success and failure. By leveraging the titanium investment process, we produce complex geometries that meet the rigorous standards of the global market.

Aerospace & Defense

Weight reduction is the primary driver for our Aerospace Grade Casting solutions. We help manufacturers shave pounds off their designs without sacrificing structural safety.

• Turbine Blades & Vanes: Capable of handling high-velocity airflow and intense heat.
• Structural Housings: Rugged, lightweight protection for defense systems and avionics.
• Fuel Delivery Components: Cast with precision to prevent fatigue and leaks in high-vibration environments.

Medical & Healthcare

Our facility produces Biocompatible Titanium Parts that are essential for modern medicine. Because titanium is non-toxic and non-allergenic, it is the premier choice for permanent internal applications.

• Orthopedic Implants: High-strength, precision-cast joints and bone plates.
• Dental Hardware: Small, high-tolerance roots and abutments.
• Prosthetics: Lightweight structural components that improve patient mobility and comfort.

Marine, Oil & Gas

For subsea and chemical processing, we provide parts that simply do not rust. Titanium’s natural oxide layer provides a level of protection that stainless steel cannot match in saltwater or acidic environments.

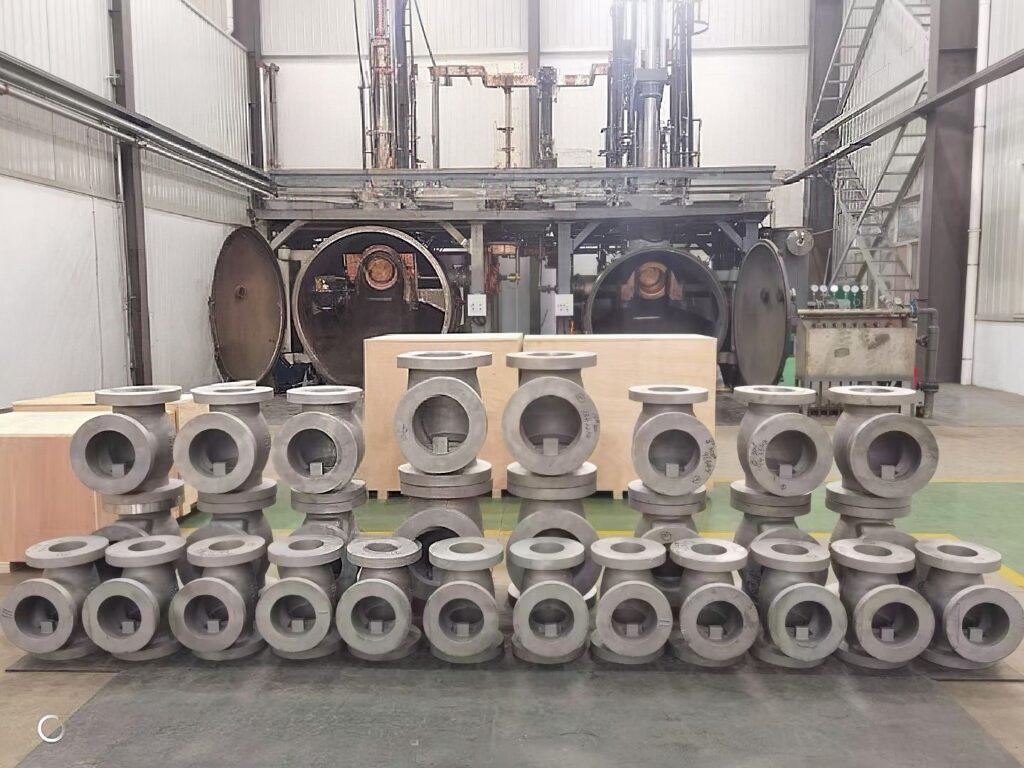

• Subsea Valves & Actuators: Reliable performance in high-pressure ocean depths.
• Chemical Pumps: Resistant to aggressive acids and industrial fluids.
• Energy Infrastructure: Critical components for offshore platforms. To ensure these parts meet exact sealing requirements, we often perform precision CNC machining on critical mating surfaces after the casting process is complete.

Titanium Investment Casting: Frequently Asked Questions

We know that switching to titanium investment casting involves technical questions regarding performance and cost. Here are the answers to the most common queries we receive from our partners.

What is the difference between Grade 2 and Grade 5 titanium casting?

The choice usually comes down to strength versus ductility:

• Grade 2 (Commercially Pure): This is the go-to for maximum corrosion resistance. It is highly weldable and commonly used in marine or chemical processing.
• Grade 5 ($Ti6Al4V$): This is an alpha-beta alloy and the “workhorse” of the industry. We use Grade 5 when a project requires an incredible strength-to-weight ratio and high-temperature stability. Understanding what are heat-resistant metals and their industrial importance helps in choosing $Ti6Al4V$ for demanding aerospace environments.

Why does titanium investment casting require a vacuum environment?

Titanium is extremely “hungry” for oxygen, nitrogen, and hydrogen when molten. If cast in the open air, the metal would instantly absorb these gases, leading to a brittle “alpha case” layer and internal defects. We utilize Vacuum Induction Melting (VIM) to ensure the melt remains pure, resulting in a high-integrity aerospace grade casting.

What are the typical lead times for a custom titanium project?

Timeline varies based on complexity, but a standard window looks like this:

• Tooling & Wax Injection Dies: 4–6 weeks.
• Sample Production: 2–3 weeks.
• Mass Production: 6–10 weeks depending on volume and NDT requirements.
• Note: We can often shave weeks off the R&D phase by using SLA 3D printing for wax patterns.

How does investment casting compare to CNC machining for titanium?

While CNC machined titanium castings are often the final step for critical tolerances, starting with a near-net-shape casting is significantly more efficient:

Feature	Investment Casting	Full CNC Machining
Material Waste	Minimal (Near-net-shape)	High (Up to 80% scrap)
Complexity	Excellent for internal cavities	Limited by tool reach
Cost at Scale	Lower per unit	Higher per unit
Lead Time	Longer setup	Faster for prototypes

By choosing titanium investment, we help you reduce the “buy-to-fly” ratio, ensuring you aren’t paying for expensive titanium sponge only to turn it into floor chips during machining. Every batch we produce is backed by a Material Test Report (MTR) for total peace of mind.

Start Your Titanium Investment Project

We’ve streamlined our onboarding to get your project moving without the typical industry friction. As a dedicated Titanium OEM Manufacturer, we focus on turning your specs into high-performance components with speed and accuracy.

Streamlined RFQ Process

To get a precise quote for your titanium investment needs, we generally require the following data:

• 3D CAD Models: Send your designs in STEP, IGES, or Parasolid formats.
• Material Specs: Clearly state the alloy required, such as Ti6Al4V Grade 5 Alloy or Commercially Pure (CP) grades.
• Estimated Volume (EAV): This helps us optimize the Investment Casting Tooling for your specific production run.
• Quality Requirements: Note any specific NDT testing, tolerance standards, or specialized surface finishes required for your application.

Global Logistics and Compliance

Shipping reactive metal components across borders requires the same precision as the casting process itself. We manage the entire logistics chain, ensuring that every batch from our ISO 9001 Certified Foundry meets international compliance and quality standards.

• Full Traceability: We provide a detailed Material Test Report (MTR) with every delivery to verify elemental composition and mechanical properties.
• Customs & Compliance: We handle the necessary export documentation to ensure your parts arrive without delay, regardless of your global location.
• Protective Packaging: All parts are secured in specialized packaging to prevent damage to delicate Near-Net-Shape Casting surfaces during international transit.
