The Role of Automation in Modern Investment Casting
Is your production line struggling with inconsistent parts or slow lead times? We know the frustration. For a long time, investment casting was considered a “black art,” relying heavily on the individual skill of the worker. While we value craftsmanship, the modern market demands speed, precision, and absolute repeatability. That is why we have fully embraced automation in casting process workflows.
At Precision Vast, we are moving beyond traditional methods and stepping into Foundry Industry 4.0. By integrating robotics and data analytics, we transform what was once a labor-intensive environment into a smart foundry manufacturing hub. This isn’t just about replacing hands with machines; it is about eliminating the variables that cause defects.
How automation redefines our output:
- Consistency: Robots don’t get tired. Whether it’s the first shell or the thousandth, the process remains identical.
- Precision: Automated systems handle complex geometries that are difficult for human hands to replicate perfectly every time.
- Efficiency: We reduce cycle times significantly, getting products to you faster without cutting corners.
We view automation not as a replacement for human expertise, but as the ultimate tool for our engineers to deliver the highest standard of casting available in the US market.
Why Automate? Solving the “Three Ds” of the Foundry
In the manufacturing world, we often talk about the “Three Ds” that drive the need for robotics: Dull, Dirty, and Dangerous. Traditional investment casting, specifically the manual shell-building phase, hits all three of these hard. It is repetitive, messy work that often requires operators to lift heavy trees in environments filled with chemical slurries and ceramic dust. By integrating automation in the casting process, we remove skilled workers from these hazardous conditions and place them in supervisory roles where their expertise matters more.
Foundry safety automation isn’t just about compliance; it is about operational continuity. When we deploy robotic cells for dipping and sanding, we eliminate the physical strain and exposure risks associated with manual processing. This shift directly impacts the bottom line by stabilizing the workforce and ensuring 24/7 uptime.
Beyond safety, the biggest advantage is consistency. Humans get tired, but robots do not. A manual operator might vary the dip angle or speed at the end of a long shift, leading to inconsistent shell thickness. Automation solves this by executing the exact same motion every time, leading to significant casting defect reduction. This level of repeatability is critical for maintaining high standards, much like how premium high-temperature alloys ensure consistent results in demanding aerospace and industrial applications.
The Impact of Automating the “Three Ds”:
- Dull: Eliminates repetitive tasks like dipping and draining, freeing up staff for quality assurance.
- Dirty: Keeps operators away from direct contact with ceramic slurries and stucco sands.
- Dangerous: Removes the risk of repetitive strain injuries and exposure to heavy lifting.
Key Stages of Automation in the Investment Casting Workflow
We don’t just automate for the sake of technology; we do it to lock in quality. By integrating automation in the casting process, we remove variability from the most critical steps of production. Here is how we handle the heavy lifting on the foundry floor to ensure every part meets spec.
Automated Wax Injection
The foundation of a perfect casting is a perfect pattern. We utilize robotic wax injection systems to fill dies with absolute precision. Unlike manual operation, where operator fatigue can lead to inconsistent pressure or dwell times, our automated presses monitor every variable in real-time.
- Consistent Dimensions: Every wax pattern comes out identical, ensuring tight tolerances downstream.
- Cycle Speed: We can produce patterns significantly faster without sacrificing surface detail.
- Complex Geometries: Automation handles intricate cores and slides that are difficult for human hands to manage repeatedly.

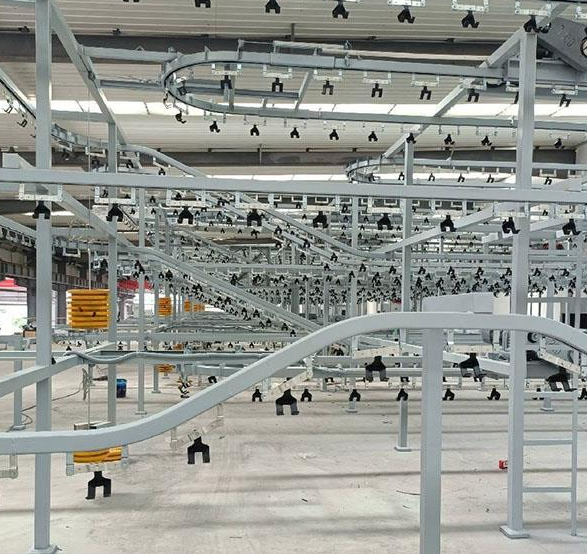

Robotic Shell Building (The Dipping Process)

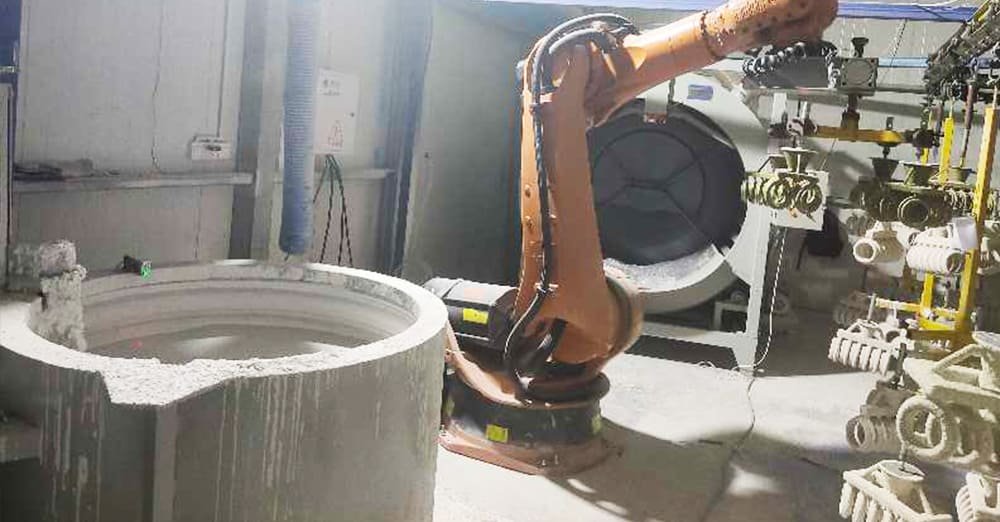

Shell building is physically demanding and requires strict adherence to drying times and rotation angles. We use automated shell building systems to manage the dipping and stuccoing of wax clusters. A robotic arm grips the sprue and executes a programmed dipping sequence, ensuring the ceramic slurry covers every crevice with uniform thickness.
This uniformity is non-negotiable. If a shell has a weak spot due to uneven coating, it will fail during the pour. This reliability is essential, especially when we are handling the intense heat requirements involved in carbon steel casting. The robot never gets tired, ensuring the hundredth shell is just as robust as the first.
3D Printing & Rapid Prototyping (Patternless Casting)
For low-volume orders or initial testing, we often skip the expensive metal tooling entirely. Using 3D printed wax patterns, we can go from a CAD file to a cast part in days rather than weeks.
This rapid prototyping casting method allows us to test designs and verify geometry before committing to hard tooling. It is a massive advantage for clients who need to iterate quickly or require complex internal channels that traditional injection molding cannot achieve. We essentially print the wax, mount it, and move straight to the shell room.
Integrating Casting with CNC Automation
Real automation in the casting process extends beyond the shell room and directly into post-processing. When we utilize robotic systems to create consistent, high-quality shells, we significantly reduce the burden on the machine shop. A precise cast means less material to remove, which is vital when dealing with tough alloys found in steel casting basics and common applications.
Why integration matters for your bottom line:
- Precision Handoffs: CNC machining integration becomes seamless when the incoming cast parts have tight tolerances. If the shell is perfect, the casting is perfect, and the CNC machine knows exactly what to expect.
- Robotic Gate Removal: Automated cutting systems can easily locate gates and risers because the casting geometry is repeatable. This eliminates dangerous manual grinding and improves safety.
- Reduced Cycle Time: By getting closer to net shape through controlled shell building, we cut down on machining time and tool wear.
This level of connectivity is what drives Foundry Industry 4.0, turning isolated manufacturing steps into a single, fluid production line. We focus on ensuring the initial shell build is flawless so that downstream automation runs without a hitch.
Data-Driven Quality Control (Industry 4.0)
In the modern foundry, automation in casting process goes beyond just robotic arms moving shells; it is about intelligence and traceability. We integrate Foundry Industry 4.0 principles directly into our control architecture, shifting from reactive fixes to proactive process management. By utilizing advanced PLC-based systems and HMI (Human Machine Interface) panels, we monitor critical variables in real-time, ensuring that every shell meets precise specifications before metal is ever poured.
Smart Foundry Manufacturing Capabilities
Our automated systems eliminate the guesswork often associated with manual operations. Instead of relying on operator intuition, we use data to drive consistency and casting defect reduction.
- Real-Time Slurry Monitoring: We automatically track and adjust slurry viscosity and temperature to ensure optimal coating thickness.
- Environmental Control: Our drying chambers regulate humidity and airflow, logging dew point data to prevent shell cracking.
- Process Traceability: Every batch is logged, allowing for complete historical data review if issues arise later during hardness testing protocols or final inspection.
Automated Quality Inspection
Integrating data logging allows for a seamless transition into automated quality inspection. By maintaining strict control over the shell building parameters, we significantly reduce the scrap rate associated with air entrapment or poor adhesion. This level of smart foundry manufacturing ensures that the physical properties of the final cast align perfectly with the intended design.
For manufacturers focused on high-performance materials, understanding the link between process control and material integrity is vital. You can see how rigorous control affects final outcomes in our overview of cast steel production properties. Automation ensures these properties are achieved consistently, cycle after cycle.
The Business Case: ROI for Our Clients
Investing in automation in the casting process isn’t just about buying robots; it is about securing the future of your foundry. We know that for manufacturing leaders in the United States, the decision comes down to the numbers. Moving from manual dipping to a fully automated shell room delivers a tangible Return on Investment (ROI) by attacking the biggest cost centers in investment casting: labor, scrap, and time.
When dealing with high-value components, such as those using titanium aluminum alloys, a single scrapped part due to air entrapment or poor shell coverage significantly impacts profit margins. Our VAST (Vacuum Assisted Shell Technology) directly addresses this by ensuring perfect slurry penetration, drastically lowering scrap rates compared to traditional methods.
Where the Savings Come From
We see our clients achieve ROI through four main channels:
- Scrap Reduction: By eliminating human variability and using vacuum assistance, we prevent common defects like air bubbles in blind holes. This is critical when working with expensive heat-resistant metals where material waste is costly.
- Labor Optimization: Smart foundry manufacturing allows you to reallocate skilled labor away from hazardous, repetitive dipping tasks to higher-value roles. Our robotic cells run 24/7 without fatigue, solving labor shortage issues.
- Cycle Time Compression: Our integrated environmental drying chambers are optimized to dry shells faster and more evenly than open-air racks, significantly shortening lead times.
- Material Efficiency: Precision control over slurry viscosity and robotic draining ensures consistent shell thickness, reducing excess material usage.
By integrating Foundry Industry 4.0 principles, our systems provide the data needed to predict maintenance and track quality, ensuring that your capital equipment pays for itself through consistent, high-volume output.
Frequently Asked Questions About Casting Automation
Does automation increase the cost of casting?
While the initial capital investment for a robotic shell room or VAST system is higher than manual setups, the long-term cost per unit decreases significantly. We find that automation in casting process drives ROI through three main avenues:
- Labor Independence: Reducing reliance on skilled labor in hazardous environments lowers payroll and training costs.
- Scrap Reduction: Precision consistency means fewer rejected parts.
- Throughput: Systems designed for 24/7 operation drastically shorten lead times compared to manual shifts.
How does robotic shell building improve quality?
Robotic investment casting eliminates the variability inherent in human handling. Our robots follow precise, programmed paths to ensure uniform slurry coating and stucco application every single time.
Beyond standard robotics, our proprietary VAST (Vacuum Assisted Shell Technology) takes quality a step further. By introducing a vacuum during the dipping process, we remove air pockets and ensure slurry penetrates complex geometries and blind holes. This directly leads to casting defect reduction, ensuring that the final metal pour is free of inclusions or surface imperfections often caused by poor shell construction.
Can automation handle low-volume orders?
Absolutely. Modern Foundry Industry 4.0 solutions are designed for flexibility, not just mass production. Our systems utilize advanced PLC controls and HMI interfaces that allow operators to switch “recipes” or dipping profiles quickly. This makes automated shell building systems highly effective for high-mix, low-volume manufacturing environments, allowing foundries to maintain high-volume casting consistency even on smaller, custom batches. For more details on how technology is shifting foundry operations, you can explore our latest industry insights.
