When it comes to investment casting, material selection can make or break your casting results. If you pick the wrong materials, the performance and cost-effectiveness of your castings could be compromised.

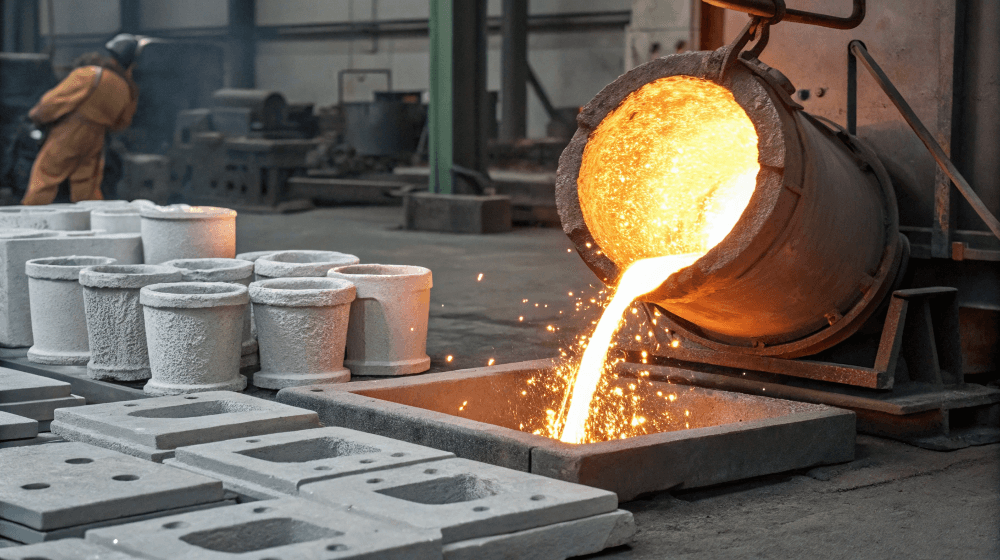

Investment casting is the process of creating detailed and accurate metal parts using a mold. Choosing the right material for this process is crucial to ensure strength, durability, and functionality in the final product.
Now, let’s dive into why material selection is such a pivotal aspect of the investment casting process. It goes beyond just picking a material that looks good on paper – it’s about understanding how it will perform under the extreme conditions of the casting process.
1. What Are Investment Casting Materials?
Investment casting materials are the metals and alloys used to produce parts with high precision and complexity. These materials determine the mechanical properties, finish, and durability of the final product.
Why is material selection so important?
The choice of materials affects not just the strength and durability of the casting but also its aesthetic finish, cost-effectiveness, and ability to meet design specifications. Different metals and alloys offer unique benefits, which is why finding the right material for a specific application is critical.
Material Types Used in Investment Casting
There are various types of materials used in investment casting, such as stainless steel, aluminum, bronze, and even more specialized alloys. Each material comes with its own set of advantages. For instance, stainless steel offers durability and resistance to corrosion, while aluminum is often chosen for its lightweight properties.
Factors Affecting Material Selection
The choice of material is affected by several factors, including the casting method, required material properties, and application of the final product. Material strength, thermal properties, and ease of machining are all key considerations during material selection.
| Material Type | Common Applications | Key Advantages |
|---|---|---|
| Stainless Steel | Aerospace, medical | Corrosion resistance, strength |
| Aluminum | Automotive, industrial | Lightweight, cost-effective |
| Bronze | Marine, electronics | Durability, resistance to corrosion |
2. Why Is Material Selection Crucial for Investment Casting?
Material selection is critical for ensuring that the final product meets performance standards and withstands the stresses it will face during its service life. A poor choice of material can lead to product failure, increased production costs, or even safety issues.
Material selection is the first step in the casting process that influences the integrity of the final part.
Choosing the wrong material can result in a casting that is too brittle or too soft, potentially compromising the product’s ability to handle stresses or extreme conditions.
What Makes Material Selection So Important?
Material properties such as tensile strength, heat resistance, and corrosion resistance all need to align with the product’s intended use. For example, parts used in aerospace must be made from materials that can withstand high temperatures and heavy stress, while marine components require materials that are resistant to corrosion from saltwater.
Quality Control and Material Testing
Once a material is selected, it is important to test and validate it. Rigorous quality control measures, such as tensile strength tests and impact testing, ensure that the material will perform as expected. This process helps manufacturers avoid costly errors and ensures that the final casting meets all quality standards.
| Material Property | Stainless Steel | Aluminum | Bronze |
|---|---|---|---|
| Tensile Strength | High | Medium | High |
| Heat Resistance | Excellent | Good | Excellent |
| Corrosion Resistance | Excellent | Poor | Excellent |
3. What Types of Materials Are Used in Investment Casting?
Investment casting uses a variety of materials depending on the end use of the product. Some of the most common materials used in investment casting are stainless steel, aluminum, and various alloys.
Different materials are used for different industries and applications, and each material offers unique benefits.
For instance, high-temperature alloys are often used for industrial gas turbines, while medical components may be cast from corrosion-resistant stainless steel.
Stainless Steel in Investment Casting
Stainless steel is one of the most commonly used materials in investment casting because of its excellent strength, toughness, and resistance to corrosion. It’s ideal for producing parts in industries like aerospace, automotive, and medical, where performance is crucial.
Aluminum for Lightweight Castings
Aluminum is another widely used material in investment casting. Known for its lightweight and excellent heat conductivity, aluminum is a popular choice for automotive and aerospace applications, where reducing weight is a priority.
Other Specialty Alloys Used
Aside from stainless steel and aluminum, there are also specialized alloys used in investment casting, such as cobalt and nickel-based alloys. These materials are chosen for their ability to withstand extreme temperatures and harsh environments, making them ideal for industries like gas turbines and defense.
| Material | Common Uses | Benefits |
|---|---|---|
| Stainless Steel | Aerospace, medical | Corrosion resistant, strong |
| Aluminum | Automotive, aerospace | Lightweight, cost-effective |
| Cobalt Alloys | High-temperature parts | Excellent heat resistance |
4. What is the Role of Alloying Elements in Investment Casting?
Alloying elements play a critical role in enhancing the properties of the base material used in casting. These elements, such as carbon, nickel, and chromium, are added to metals to improve their performance.
Alloying elements can significantly alter the mechanical and thermal properties of a material, making it more suitable for specific applications.
For example, adding chromium to steel improves its resistance to oxidation and corrosion, making it perfect for use in harsh environments.
Examples of Common Alloying Elements
- Nickel: Improves the toughness and resistance to corrosion.
- Chromium: Increases resistance to oxidation and enhances hardness.
- Molybdenum: Improves the strength and toughness of steel.
Benefits of Alloying Elements
Alloying elements allow manufacturers to tailor materials for specific needs. For example, aerospace components may require high-strength materials with excellent resistance to high temperatures, which is achieved by adding alloys like nickel and cobalt.
| Alloying Element | Effect on Material | Common Uses |
|---|---|---|
| Nickel | Toughness, corrosion resistance | Aerospace, industrial |
| Chromium | Hardness, oxidation resistance | Automotive, marine |
| Molybdenum | Strength, toughness | High-performance parts |
5. How Do Foundries Select the Right Material?
The material selection process at a foundry is influenced by several factors, including the product’s intended use, the performance requirements, and the casting method.
Foundries carefully evaluate a variety of factors before selecting materials to ensure the final product will meet quality standards.
These factors include cost considerations, the material’s availability, and its ability to handle the stresses it will face in service.
Factors to Consider in Material Selection
When selecting a material, foundries must consider:
- The mechanical properties required (strength, toughness, etc.)
- The environmental conditions the part will face (heat, moisture, etc.)
- The required manufacturing process (casting method, machining, etc.)
Material Performance and Durability
In many cases, the material must not only meet the required strength and durability standards but also perform well over the part’s entire service life. This means considering factors like wear resistance, corrosion resistance, and temperature stability.
| Factor | Consideration | Example Materials |
|---|---|---|
| Mechanical Properties | Strength, toughness | Steel, Titanium |
| Environmental Resistance | Corrosion, temperature | Stainless Steel, Aluminum |
| Manufacturing Process | Casting ease, machining | Aluminum, Steel |
6. How Does the Casting Process Affect Material Selection?
The casting process itself plays a significant role in determining which materials should be used. Different casting methods, such as shell molding, die casting, and sand casting, each have specific requirements in terms of material performance.
The process can dictate the material choice based on its ability to flow into molds, solidify without defects, and withstand temperature variations during casting.
For example, some materials may be better suited for certain casting techniques due to their melting points, fluidity, and solidification behavior.
Different Casting Methods and Material Selection
- Shell Molding: Materials that can maintain strength at high temperatures are ideal for shell molding, such as stainless steel or certain alloys.
- Die Casting: For die casting, materials like aluminum and zinc are commonly used due to their fluidity and low melting points.
- Sand Casting: Sand casting can accommodate a variety of materials, but it is often used for metals with lower melting points, such as aluminum, brass, and bronze.
Impact of Temperature and Cooling Rate
Materials that can handle temperature fluctuations without cracking or deforming are often selected for casting methods that involve high heat. Similarly, materials with rapid solidification properties are chosen to reduce defects in the final cast.
| Casting Method | Ideal Materials | Characteristics |
|---|---|---|
| Shell Molding | Stainless Steel, Alloys | High strength, heat resistance |
| Die Casting | Aluminum, Zinc | Low melting points, fluidity |
| Sand Casting | Aluminum, Brass, Bronze | Versatility, ease of casting |
7. What Are the Advantages of Using Steel in Investment Casting?
Steel is one of the most widely used materials in investment casting due to its strength, durability, and ability to be shaped into intricate designs.
Steel offers exceptional performance in a variety of industries, especially where strength, heat resistance, and corrosion resistance are paramount.
From aerospace components to industrial machinery parts, steel’s versatility makes it a go-to material for many investment casting applications.
High Strength and Durability
Steel has high tensile strength, making it suitable for components subjected to mechanical stress. It is commonly used in industries like aerospace, automotive, and construction, where failure would have serious consequences.
Corrosion Resistance and Longevity
Certain grades of steel are resistant to corrosion, making them ideal for parts exposed to harsh environmental conditions. Stainless steel, for example, is highly resistant to oxidation and corrosion, making it perfect for marine and chemical processing industries.
| Property | Steel | Stainless Steel | Carbon Steel |
|---|---|---|---|
| Tensile Strength | High | High | Moderate |
| Corrosion Resistance | Moderate | High | Low |
| Durability | High | High | Moderate |
8. How Is Aluminum Used in Investment Casting?
Aluminum is a lightweight, versatile material used in investment casting for a variety of applications, particularly in industries where weight reduction is a priority.
Aluminum’s unique properties, such as its low density and excellent thermal conductivity, make it ideal for applications where performance and weight are crucial.
Aluminum casting is widely used in automotive and aerospace components, where reducing weight can lead to better fuel efficiency and performance.
Lightweight and Cost-Effective
One of aluminum’s biggest advantages is its low weight. For industries like automotive, this is a major benefit as it helps reduce the overall weight of the vehicle and improve fuel efficiency.
Thermal and Electrical Conductivity
Aluminum has excellent thermal and electrical conductivity, making it ideal for components used in heat exchangers, electrical systems, and machinery. Its ability to dissipate heat quickly also makes it suitable for high-temperature applications.
| Property | Aluminum | Zinc | Magnesium |
|---|---|---|---|
| Weight | Lightweight | Moderate | Light |
| Conductivity | High | Moderate | High |
| Durability | Moderate | Low | Moderate |
9. What Other Materials Are Emerging in Investment Casting?
With the rapid advancement of material science, new materials are continuously being introduced into the field of investment casting. These materials often offer superior performance, such as enhanced durability, heat resistance, and even sustainability.
Emerging materials in investment casting are often designed to meet the demands of high-performance industries like aerospace, automotive, and medical.
These innovations can lead to lighter, stronger, and more cost-effective castings.
New High-Performance Alloys
New alloys, such as titanium-based and cobalt alloys, offer higher strength and better resistance to extreme temperatures. These materials are used in applications like gas turbine components and medical implants.
Sustainable Materials
Environmental concerns are leading to the development of eco-friendly materials for casting. Recycled metals and bio-based materials are being explored as alternatives to traditional casting materials.
| Material | Advantages | Common Uses |
|---|---|---|
| Titanium Alloys | Strength, heat resistance | Aerospace, medical |
| Cobalt Alloys | Extreme heat resistance | Gas turbines, medical |
| Recycled Metals | Sustainability | Automotive, manufacturing |
10. What Are the Challenges of Using High-Performance Materials in Investment Casting?
While high-performance materials offer superior qualities, they come with certain challenges in the investment casting process. These materials often require specific conditions, equipment, and expertise to work with.
High-performance materials can be more difficult to cast, as they require precise handling and specialized knowledge to ensure the casting is flawless.
These materials may also be more expensive, adding to the overall cost of the project.
Specialized Equipment and Handling
High-performance materials, such as titanium and cobalt alloys, require specific casting equipment. The melting points of these materials are significantly higher, which can present challenges during the casting process.
Cost Implications
The cost of high-performance materials can be prohibitive, especially when dealing with rare metals or alloys. In some cases, manufacturers may need to weigh the benefits of using such materials against their high costs.
| Material | Challenges | Solutions |
|---|---|---|
| Titanium Alloys | High melting point | Specialized furnaces |
| Cobalt Alloys | Expensive | Improved material sourcing |
| Recycled Metals | Contamination risks | Advanced purification |
11. What Impact Does Material Quality Have on the Casting Outcome?
Material quality is one of the most important factors in determining the success of an investment casting project. Low-quality materials can result in defects, failures, and compromised performance in the final product.
The integrity of the material used directly influences the final product’s strength, finish, and functionality.
It’s essential to ensure that the selected materials meet the required standards for the specific application.
Importance of Material Purity
Materials with impurities can lead to defects in the casting, such as porosity or cracking. Ensuring the material is pure and free of contaminants is critical to achieving a high-quality casting.
Testing and Certification
Quality testing is a key part of the material selection process. Manufacturers often perform tests like tensile strength tests, microstructure analysis, and hardness tests to ensure the material meets the necessary specifications.
| Material Quality | Impact on Casting Outcome | Testing Methods |
|---|---|---|
| High Quality | Strong, durable, reliable | Tensile, hardness, impact testing |
| Low Quality | Defects, failure | Visual inspection, chemical analysis |
12. What Testing Methods Ensure Material Quality in Investment Casting?
To ensure that the material meets the required specifications, several testing methods are employed. These methods evaluate the material’s strength, durability, and resistance to stress, heat, and corrosion.
Testing is essential to verify that the selected material can perform well during casting and throughout the part’s lifecycle.
Without proper testing, manufacturers may face costly failures and delays.
Common Material Tests
- Tensile Strength Test: Measures the material’s ability to withstand tension.
- Hardness Test: Assesses the material’s resistance to deformation.
- Impact Test: Tests how the material reacts to sudden forces.
Non-Destructive Testing (NDT) Methods
Non-destructive testing methods like ultrasonic testing and X-ray inspection allow manufacturers to assess material integrity without damaging the material.
| Test Method | Purpose | Application |
|---|---|---|
| Tensile Strength | Measure resistance to tension | Steel, Titanium |
| Hardness Testing | Measure resistance to deformation | Aluminum, Steel |
| Impact Testing | Assess material response to sudden force | Aerospace, automotive |
13. How Do Material Costs Affect Investment Casting Projects?
Material costs are a critical factor in determining the overall cost of an investment casting project. High-performance materials can significantly increase project costs, especially when rare metals are involved.
The cost of materials can affect the final pricing of the cast parts, which is especially important in highly competitive industries.
Manufacturers need to carefully balance material costs with performance requirements to stay within budget.
Balancing Cost and Performance
In some cases, manufacturers may opt for a material that offers a good balance between performance and cost, rather than using the highest-performing material available.
Strategies for Cost Reduction
- Material Substitution: Using alternative materials that offer similar properties but at a lower cost.
- Optimizing Casting Techniques: Improving casting techniques to reduce waste and material usage.
| Strategy | Effectiveness | Examples |
|---|---|---|
| Material Substitution | Cost-effective | Aluminum for steel |
| Optimizing Techniques | Cost-saving | Using sand casting for low-cost materials |
14. How Do Environmental Factors Affect Material Selection for Investment Casting?
Environmental factors, such as temperature, humidity, and the exposure to corrosive elements, can all influence material selection. Materials need to be chosen based on how well they can perform under these conditions.
Selecting materials that can withstand environmental challenges ensures the longevity and reliability of the final product.
For example, materials used in outdoor applications must be able to handle exposure to moisture and varying temperatures.
Temperature Resistance
Materials used in high-temperature environments, such as gas turbines, must be able to resist thermal shock and maintain their strength under extreme conditions.
Corrosion Resistance
Parts exposed to moisture or chemicals need to be made from materials that can withstand corrosion, such as stainless steel or specialized alloys.
| Environmental Factor | Effect on Material Choice | Suitable Materials |
|---|---|---|
| Temperature | Resistance to heat | Titanium, Inconel |
| Humidity | Resistance to corrosion | Stainless Steel |
15. What Are the Future Trends in Investment Casting Materials?
The future of investment casting materials is focused on achieving higher performance, greater sustainability, and cost-effectiveness. Ongoing research and development are leading to innovative materials that meet the demands of modern industries.
Emerging trends suggest a shift toward lightweight, high-strength materials that are both cost-effective and environmentally friendly.
New alloys and advanced manufacturing techniques are helping industries like aerospace, automotive, and medical to meet the growing need for advanced components.
Innovations in Material Science
As material science continues to evolve, manufacturers are discovering new ways to improve the performance of cast materials, such as by incorporating nanotechnology or using recycled metals.
Eco-Friendly Materials
Sustainability is becoming more important in the casting industry. Recycled metals and bio-based materials are gaining popularity as eco-friendly alternatives to traditional materials.
| Trend | Description | Examples |
|---|---|---|
| Lightweight Alloys | Strong yet lightweight | Aluminum, Magnesium |
| Eco-Friendly Materials | Sustainable and recyclable | Recycled steel, bio-based materials |
Conclusion
Choosing the right investment casting materials is crucial for the performance and longevity of the final product. Understanding the different types of materials, the importance of alloying elements, and the material selection process ensures that the final casting will meet performance standards, reduce costs, and improve overall quality. For manufacturers, selecting the right material is not just about technical specifications – it’s about creating the most reliable and efficient solution for your specific needs.
FAQ Section
- Q1: What is investment casting material?
Investment casting material refers to the metals and alloys used in the casting process to create precise parts, with a focus on materials that offer specific mechanical properties and performance characteristics. - Q2: How does material selection impact investment casting?
Material selection impacts casting strength, durability, and performance. Choosing the right material ensures that the final product meets application needs while optimizing cost and functionality. - Q3: What types of materials are used in investment casting?
Common materials include stainless steel, aluminum, bronze, and high-performance alloys like cobalt and nickel. Each material has unique benefits suited for specific industries. - Q4: Why is steel commonly used in investment casting?
Steel is widely used for its strength, durability, and resistance to corrosion. It is versatile, making it suitable for a variety of industrial applications, including aerospace and medical industries. - Q5: What are the future trends in investment casting materials?
Future trends include advancements in alloy technologies, greater use of sustainable materials, and innovations in heat-resistant materials for high-performance applications. These developments will help meet the growing demands of industries like aerospace and automotive.
