Precision Lathe MC: Engineered for High-Volume Accuracy

When you are running a high-volume shop, the biggest worries are clear: tool chatter, holding tight tolerances over long shifts, and structural flexing during aggressive cuts. We engineered our lathe mc lineup to tackle these exact floor challenges. Our core vision is to deliver a high-rigidity platform that handles complex, tight-tolerance components day in and day out without breaking a sweat.

Heavy-Duty Cast-Iron Bed Platform

To eliminate the harmonic vibration that ruins surface finishes and destroys carbide inserts, our lathe mc turns utilize a true heavy-duty cast-iron bed.

• Premium Meehanite Castings: Provides superior dampening characteristics compared to standard welded frames.
• Vibration Absorption: Absorbs structural stress during heavy, interrupted cutting cycles.
• Geometric Alignment: Maintained over decades of operation under high thermal loads.

Primary Industrial Applications

This lathe mc platform is configured specifically for high-demand US industrial sectors requiring multi-sided component profiling and flawless execution.

• Long Shafts & Cylindrical Parts: Superior concentricity retention across extended workpieces.
• Precision Fasteners: High-repeatability threading and boring for critical defense and automotive applications.
• Complex Profiling: Seamless integration of multi-axis turning and milling on a single machine center.

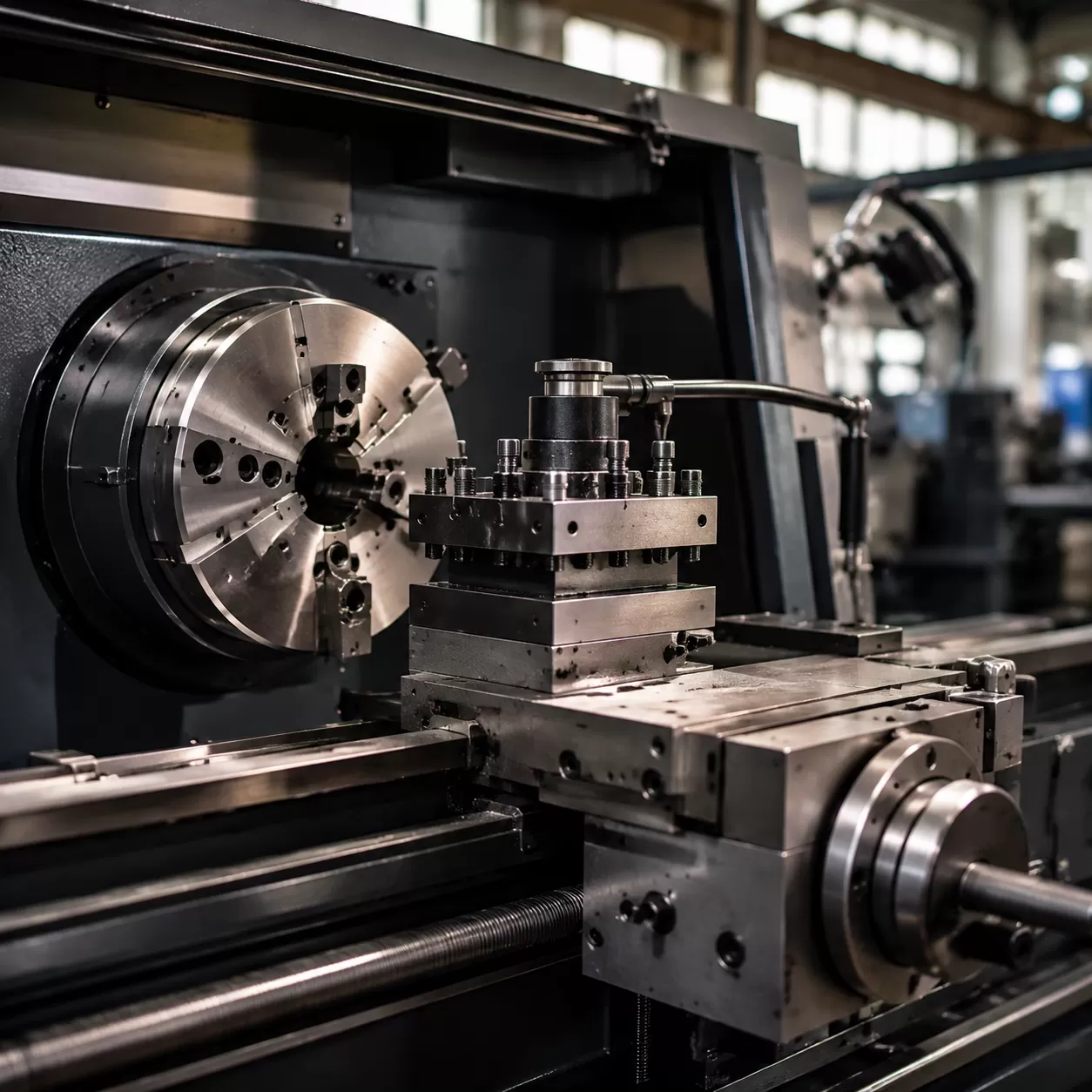

Core Machine Architecture & Structural Rigidity of the Lathe MC

At precisionvast, we build our lathe machine center lineup on a foundation of unyielding stability. The physical structure of a multi-axis CNC lathe determines its ability to hold tight tolerances under heavy cutting loads. We engineer every machine base to handle aggressive machining cycles while dampening the harmonic vibrations that ruin surface finishes.

Heavy-Duty Bed Design

Choosing the right platform is the first step in optimizing your shop floor production:

• Slant-Bed CNC Lathe Configurations: Designed with a 30-degree or 45-degree angular bed to facilitate rapid chip evacuation and easy operator access. This setup is ideal for high-volume production where chip buildup can stall cycle times.
• Flat-Bed Turning Machine Designs: Engineered for massive, extended workpieces like large shafts and heavy industrial rollers. The wide footprint provides maximum weight distribution and structural support for oversized stock.

Guideways & Axis Movement

We balance speed and load capacity by utilizing two distinct guideway technologies based on your specific application needs:

Guideway Type	Best For	Key Advantage
Linear Roller Guideways	High-speed, high-precision indexing	Minimal friction, faster rapid traverse speeds, and crisp response times.
Hardened & Ground Box Ways	Heavy-duty, interrupted cutting	Maximum vibration dampening and extreme structural load capacity for deep cuts.

Thermal Stability Engineering

Friction creates heat, and heat causes structural growth that compromises accuracy during 24-hour run cycles. To counteract this, our headstock structures feature a symmetrical design equipped with integrated heat-dissipating fins. We pair this with isolated cooling circuits that actively stabilize the temperature of the headstock and main casting. This thermal balancing keeps your X and Z-axis positioning dead-on from the first morning part to the end of the midnight shift.

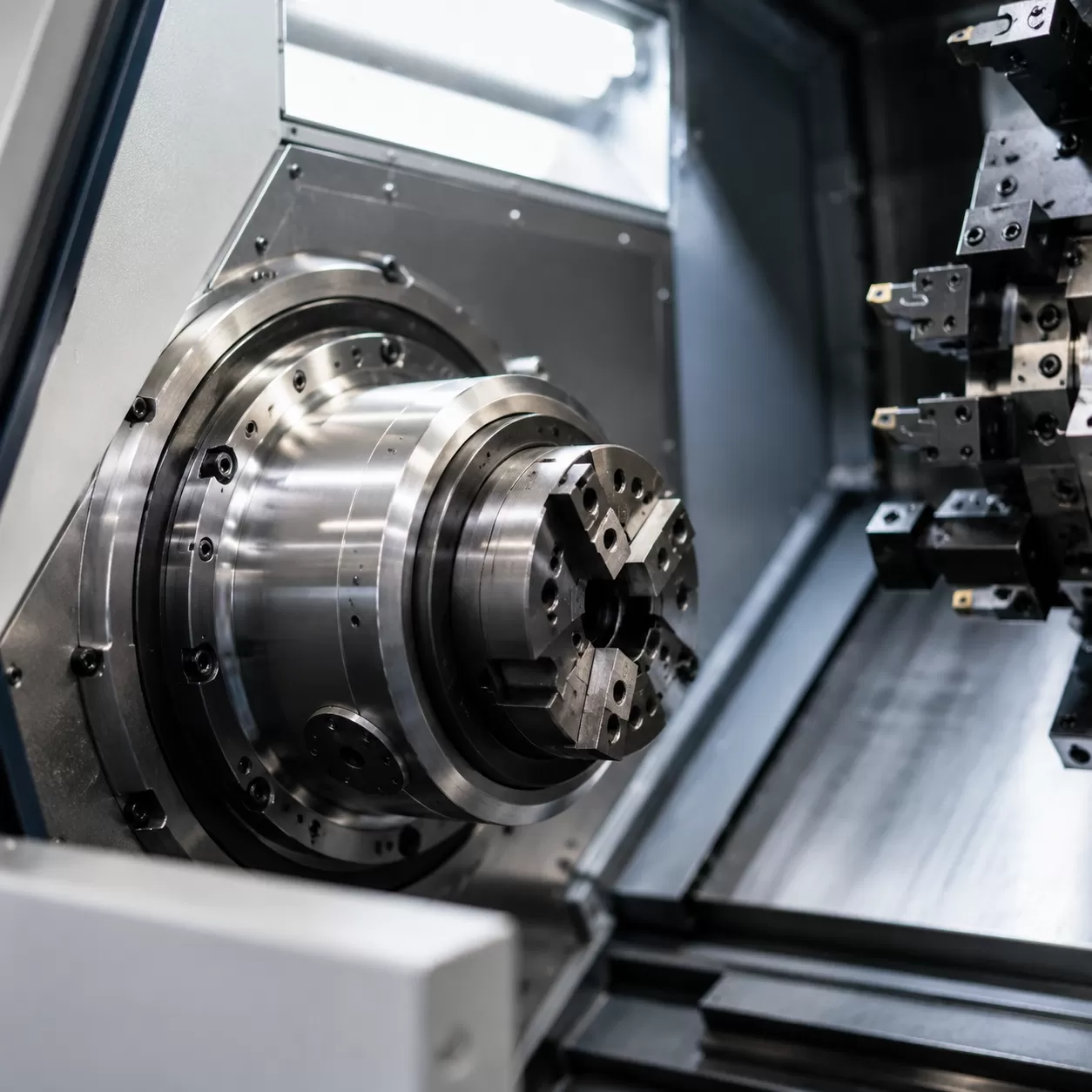

Spindle Technology & Power Delivery in Our Lathe MC

The spindle is the heart of any lathe MC, dictating how fast, deep, and accurately you can cut. We engineer our spindle systems to deliver maximum torque and thermal stability, ensuring your shop maintains non-stop production with zero downtime.

High-Torque Main Spindle & Drive Systems

Every precision lathe MC we build features a dynamically balanced, cartridge-style main spindle. Supported by high-precision angular contact bearings, this setup absorbs massive radial and axial forces during heavy setups. Driven by variable speed AC inverter drives, the system delivers seamless, consistent power across broad RPM bands. This means you get the raw grunt needed for heavy roughing cuts at low speeds, and the vibration-free stability required for mirror-like surface finishes at high speeds.

Workholding Flexibility & Sub-Spindle Integration

To keep material moving, our systems feature large through-bore capacities optimized for standard hydraulic 3-jaw self-centering chucks or quick-change collet systems. This flexibility makes bar feeder integration completely effortless for automated runs.

For true done-in-one efficiency, we offer dual-spindle configurations. The integrated sub-spindle allows for automated back-working part transfers, grabbing the workpiece and machining the secondary side without ever stopping the primary production cycle.

---

Spindle Performance Specifications

Feature	Specification / Capability	Operational Advantage
Spindle Design	Cartridge-style with angular contact bearings	Eliminates runout and absorbs heavy cutting loads
Drive System	Variable speed AC inverter	Smooth power delivery across all RPM bands
Workholding	Hydraulic 3-jaw chuck / Custom collet systems	Fast clamping and seamless bar feeder integration
Sub-Spindle Option	Synchronous part transfer	Eliminates manual flips and secondary setups

Our industrial turning machinery is designed specifically to handle tough materials while maintaining tight tolerances over long shifts. By pairing a high-precision spindle with advanced workholding options, these turning centers maximize throughput for any high-volume machine shop.

Tool Turret & Multi-Axis Processing Capabilities

Our lathe MC platforms are built to eliminate secondary operations by packing massive processing versatility into a single setup. By combining fast tool indexing with precise multi-axis synchronization, these machines handle everything from simple turning to complex milling right on the main line.

Servo-Driven Tool Turret

The heart of the cutting zone relies on a high-speed, servo-driven indexing turret. Configured to accommodate anywhere from 8 to 24 tool stations, this system utilizes heavy-duty hydraulic block clamping to ensure absolute rigidity. You get lightning-fast tool changes under 0.2 seconds, minimizing non-cutting time during high-volume production runs.

Live Tooling & C-Axis Capabilities

Transform your multi-axis CNC lathe into a complete machining center with true driven-tool stations. Our live tooling integration paired with a fully interpolating C-axis allows your shop to handle:

• Side milling and slotting
• Off-center cross-drilling
• Rigid tapping operations

By performing these tasks on the primary spindle, you drop finished parts off the machine without manually moving them to a separate mill.

Multi-Axis Interpolation

For highly complex part geometries, we offer advanced 3-axis, 4-axis, and 5-axis synchronous control setups. This deep level of CNC coordination enables smooth helical milling, complex profiling, and angular features. It gives US job shops the flexibility to quote intricate aerospace or medical components with complete confidence in part accuracy and cycle efficiency.

CNC Control Intelligence & Software Ecosystem

Our lathe MC platforms are built with intuitive, high-intelligence control ecosystems designed to streamline your shop floor workflow. We strip away the unnecessary complexity, giving your operators direct, real-time command over every multi-axis CNC lathe operation.

Industry-Standard Control Panels

The operator interface features an ergonomic control panel that balances advanced processing power with everyday usability.

• Real-Time Toolpath Simulation: Operators can visually verify part geometries and check for potential crashes before a single chip is cut.
• Responsive Touch Navigation: Streamlined menus ensure fast setup times and fewer keystrokes.

Programming & G-Code Compatibility

This precision lathe MC series offers seamless integration into your existing shop infrastructure. It provides full, native execution of standard industrial G-code instructions. Whether you program conversational paths at the machine or post-process complex toolpaths through major CAD/CAM software, the control reads the data flawlessly, avoiding data translation errors.

Automated Tool Monitoring Systems

To protect your investment and maintain tight tolerances during unattended or lights-out operations, our Computer Numerical Control lathe software includes pro-active monitoring tools:

• Integrated Tool Setters: Automatically register tool geometry and update offsets in seconds.
• Wear Compensation Programming: Automatically adjusts tool positions to counteract gradual insert wear over long production cycles.
• Load Monitoring Protection: Constantly tracks spindle and axis motor loads, instantly halting the machine if a tool breaks to prevent costly damage to the workpiece or the machine structure.

Technical Specifications: Lathe MC Capability Matrix

We build our precision lathe MC systems to handle the most demanding production schedules. Below are the core technical specifications defining the capacity, power, and micron-level accuracy of our industrial turning machinery.

Capacity & Machining Envelope

Our lathe machine center configurations offer generous swing and length capacities to accommodate a wide variety of cylindrical parts and shafts.

Parameter	Specification Range
Maximum Swing Over Bed	500 mm – 720 mm
Maximum Turning Diameter	360 mm – 450 mm
Maximum Turning Length	500 mm – 1,250 mm
Chuck Size Options	8-inch / 10-inch / 12-inch

Spindle Performance Range

Every high-precision spindle we engineering is optimized for both heavy metal removal and fine surface finishing.

• Spindle Speed Spectrum: 3,500 to 5,000 RPM variable spectrum
• Spindle Bore Diameters: 65 mm to 90 mm for versatile bar stock capacity
• Main Motor Power: 15 kW / 22 kW high-torque AC inverter drives

Axis Accuracy & Tolerance Metrics

We validate every multi-axis CNC lathe to ensure strict repeatability under continuous 24-hour run cycles.

• X/Z Axis Positioning Accuracy: $pm$0.003 mm (Micron-level precision)
• X/Z Axis Repeatability: $pm$0.002 mm
• Rapid Traverse Rate (X/Z): 30 m/min / 36 m/min

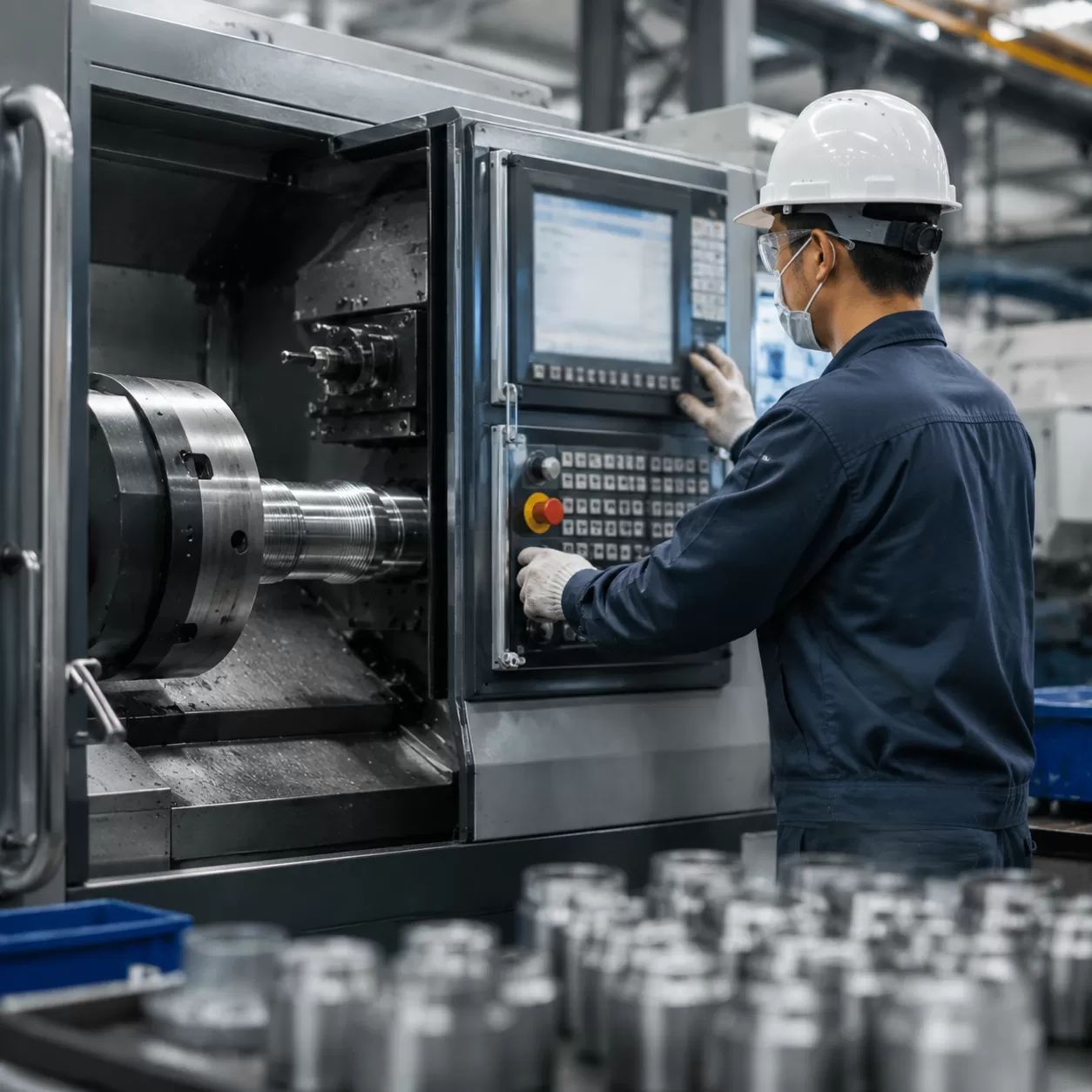

Real-World Applications of the Lathe MC

Our precision lathe MC systems deliver the uncompromising accuracy and structural rigidity required by North America’s most demanding industrial sectors. From high-volume automotive production to tight-tolerance medical manufacturing, these multi-axis CNC lathe centers handle complex geometries in a single setup.

Here is how our industrial turning machinery performs across key American infrastructure sectors:

Automotive Engineering

High-volume automotive production demands absolute concentricity and repeatable accuracy. The lathe MC platforms we build efficiently process high-strength materials into critical driveline and engine parts:

• Driveshafts & Axles: Maintaining exact geometric tolerances over extended lengths.
• Input Pins & Gear Blanks: Achieving flawless surface finishes to minimize friction.
• Balancing Components: Eliminating micro-deviations to prevent high-speed vibration.

Aerospace Components

Aerospace manufacturing requires extreme precision when machining advanced, heat-resistant superalloys. Our CNC turning center setups provide the thermal stability necessary for complex aerospace parts:

• Titanium Engine Components: Flawless turning of thin-walled rings and casings without material distortion.
• Custom Structural Fittings: Rigid machining of tough alloys to meet ultra-tight aerospace tolerances.
• Landing Gear Fasteners: Deep-hole boring and heavy threading on high-tensile materials.

Medical Devices

The medical sector relies on micro-precision manufacturing where component failure is not an option. Our precision lathe MC setups provide the high-speed processing needed for intricate medical hardware:

• Surgical Implants: Machining biocompatible titanium and PEEK with exceptional surface finishes.
• Bone Pins & Screws: High-precision micro-turning and synchronized threading.
• Orthopedic Tools: Multi-axis profiling of complex surgical instruments without secondary manual finishing.

Energy & Infrastructure

Heavy industry demands a heavy-duty horizontal lathe capable of handling massive workpieces and aggressive cutting cycles. For these rugged environments, our turning centers excel at:

• Oilfield Extraction Shafts: High-torque deep-hole boring through hardened steel grades.
• Heavy-Duty Piping & Valves: Large-diameter threading and precise taper turning for high-pressure systems.
• Power Generation Rotors: Machining large-scale components utilizing optimized carbon steel precision castings to ensure long-term structural integrity under extreme operational stress.

Why Choose a PrecisionVast Lathe MC?

At PrecisionVast, we build industrial turning machinery designed to maximize your shop’s uptime and profitability. We control every step of our manufacturing process, ensuring our equipment stands up to the heavy workloads of United States machine shops. From our advanced casting methods to our final accuracy checks, we deliver reliable performance that protects your bottom line.

Strict Quality Control Assurance

Every lathe MC we build undergoes a rigorous validation process before it ever leaves our floor. We don’t take shortcuts on accuracy because we know your customers demand tight tolerances.

• Laser Interferometer Validation: We inspect every linear axis to guarantee micron-level positioning accuracy.
• Dynamic Ball-Bar Testing: This process verifies the true circularity and geometric alignment of the machine during simultaneous multi-axis movement.
• Heavy Cast Structural Integrity: Our machines utilize robust structural bases designed to eliminate harmonic vibrations. For shops utilizing specialized cast components, understanding raw material integrity is crucial; you can review our guide on how to verify the quality of carbon steel castings to see how we maintain high standards.

Optimized Lifecycle ROI

Investing in a PrecisionVast CNC turning center means investing in long-term reliability. We lower your total cost of ownership by eliminating the weak points that cause unplanned plant downtime.

ROI Advantage	What It Means for Your Shop
Global Component Traceability	We use premium, easily sourceable mechanical and electrical parts.
Reduced Maintenance Costs	High-precision spindle bearings and hardened ways require less frequent replacement.
Extended Tool Life	Rigid machine architecture minimizes tool chatter, saving you thousands in carbide inserts.

Turnkey Production Support

We don’t just ship a multi-axis CNC lathe to your loading dock and wish you luck. Our specialized field application engineers provide complete, hands-on support to get your production line running immediately.

1. On-Site Installation: We handle the physical setup and leveling to ensure optimal structural geometry.
2. Foundational Alignment Calibration: Our team calibrates the spindle, turret, and tailstock under real-world shop conditions.
3. Comprehensive Programming Training: We train your operators on G-code execution, tool monitoring, and CAD/CAM post-processor integration to maximize efficiency from day one.

Auxiliary Equipment & Factory Automation Options for Your Lathe MC

To maximize the ROI of your lathe MC, standard manual operations won’t cut it for high-volume American manufacturing. We engineer our advanced CNC turning center platforms with modular automation options designed to support continuous, lights-out production and minimize manual labor.

Automated Bar Feeders & Collectors

For shops running extended production cycles, we offer full integration packages for automatic bar feeders. These systems allow your multi-axis CNC lathe to run completely unattended through the night by feeding raw stock seamlessly into the spindle.

High-Pressure Coolant Delivery

Managing heat and chip packing is critical when machining tough materials. Our metalworking lathe machine configurations support high-pressure through-spindle coolant systems that drastically improve tool life and part quality.

• 20-Bar Setup: Ideal for standard brass, aluminum, and mild steel turning.
• 70-Bar Setup: Engineered for proactive chip breaking in gummy or hard materials like titanium and stainless steel.
• Benefits: Delivers faster heat dissipation, eliminates chip nesting, and extends carbide insert life.

Part Catchers & Conveyor Systems

Keeping the work area clean and parts moving is essential for maintaining tight tolerances over long shifts. Our automation suite handles part unloading and waste management without pausing the primary cutting cycle.

Automation Component	Equipment Function	Production Benefit
Automatic Part Catcher	Mechanical arm unloads finished components from the sub-spindle.	Prevents part damage and allows continuous cycling.
Chain-Type Chip Conveyor	Motorized conveyor continuously removes metal chips from the machine bed.	Eliminates manual cleanout downtime and maintains thermal stability.
Parts Conveyor Belt	Moves finished pieces outside the machine enclosure to a collection bin.	Organizes completed inventory for easy operator sorting.

By upgrading your lathe machine center with these auxiliary systems, you transform a standard turning machine into a fully autonomous production cell tailored for modern industrial demands.

Service, Maintenance, and Parts Support for Your Lathe MC

Keeping your lathe MC running at peak performance requires more than just heavy-duty engineering—it demands a rock-solid support ecosystem. We back our industrial turning machinery with comprehensive service programs designed to eliminate unexpected downtime and maximize your shop’s productivity.

---

Preventative Maintenance Programs

Routine care is the backbone of machine longevity. We provide clear, scheduled maintenance protocols tailored to high-volume production environments:

• Fluid Filtration: Scheduled checks and replacements of hydraulic fluids and cooling system filters to prevent contamination.
• Axis Calibration: Regular laser calibration to ensure micron-level positioning accuracy over extended run cycles.
• Geometric Alignment: Periodic geometric checks to maintain precise alignment between the spindle, turret, and tailstock.

Comprehensive Warranty Framework

Every precision lathe MC we ship comes backed by our dependable factory warranty. We protect your investment so you can focus on production:

• Structural Warranty: Multi-year coverage on the heavy-duty cast-iron bed and base structures.
• Controller Protection: Dedicated warranty coverage for the CNC control panel and internal electronics.
• Extended Plans: Customizable extended warranty options available to match your specific operational risk management needs.

Rapid Spare Parts Logistics

When a component wears out, every minute of downtime cuts into your bottom line. Our North American regional inventory centers ensure you get the parts you need without waiting on international shipping:

Replacement Category	Stocked Components	Delivery Target
Mechanical Core	Replacement spindles, linear roller guideways, box ways	Next-day shipping available
Tooling & Actuation	Servo-driven tool turrets, hydraulic cylinders, chuck parts	In-stock regional inventory
Electrical Systems	CNC controllers, AC inverter drives, axis motors	Express courier dispatch

Frequently Asked Questions (FAQs) About Lathe MC

What does MC stand for on a CNC lathe turning center?

On a computer numerical control lathe, MC stands for Machining Center or Milling Capability. When you see a machine designated as a lathe MC, it means the system is not just limited to traditional turning. It is a true hybrid CNC turning center equipped with a driven tool turret and a programmable C-axis, combining both lathe operations and milling machine capabilities into a single, high-efficiency platform.

How does live tooling expand the capabilities of a lathe MC?

Integrating a live tooling turret onto a precision lathe MC completely transforms your production workflow. Instead of dropping off a turned part to be moved to a standalone milling machine, live tooling allows the turret to hold powered instruments like drills, taps, and end mills. This enables side milling, cross-drilling, off-center tapping, and complex profiling directly on the primary spindle line, eliminating secondary setups, reducing labor costs, and maintaining perfect part concentricity.

What is the core structural difference between slant-bed and flat-bed lathe machines?

The fundamental difference lies in the bed geometry, which dictates rigidity and ergonomics:

• Slant-Bed CNC Lathe: Features an angular bed design (typically 30° or 45°). This architecture is built for high-volume production because it allows chips and heavy coolant flows to fall straight through to the conveyor. It also offers shorter structural loops, which maximizes rigidity and thermal stability during aggressive cuts.
• Flat-Bed Turning Machine: Features a traditional horizontal bed parallel to the ground. This setup is preferred for massive, heavy-duty horizontal lathe applications, such as turning extra-long shafts or oversized oilfield pipes, providing exceptional support for heavy workpieces.

For shops dealing with ultra-tough alloys, pairing a rigid slant-bed frame with tough tooling components—similar to how premium aerospace manufacturers choose resilient raw materials like those explored in our overview of Ti64 titanium properties—ensures the frame holds tight tolerances over long production runs.
