Die casting aluminum is a widely used manufacturing process that produces complex and high-precision metal parts. This method, which uses molten aluminum injected into molds, offers significant advantages over other methods of casting. In this article, we will take a detailed look at the die casting aluminum process, its benefits, and its various applications across industries. Whether you’re considering die casting aluminum for your next project or are simply curious about its workings, this guide will provide you with all the information you need.
1. Introduction to Die Casting Aluminum
Die casting aluminum is a versatile and cost-effective manufacturing technique that involves pouring molten aluminum into a mold under high pressure. This process creates parts that are strong, durable, and highly precise, making it ideal for a wide range of industries such as automotive, aerospace, and electronics. The benefits of die casting aluminum are clear, but understanding the technical aspects of the process can provide a deeper insight into why it’s such a popular choice.
But here’s the kicker: die casting aluminum is not just about efficiency—it’s also about versatility. From intricate, complex parts to simple ones, aluminum can be cast into nearly any shape. This makes it a preferred material for products that require both strength and aesthetic appeal.
To begin, die casting aluminum involves melting aluminum alloys, which are then injected into molds under high pressure. Once cooled and solidified, these molds are removed, revealing the final product. The precision and consistency of the process ensure high-quality parts, making it ideal for industries that demand precision.

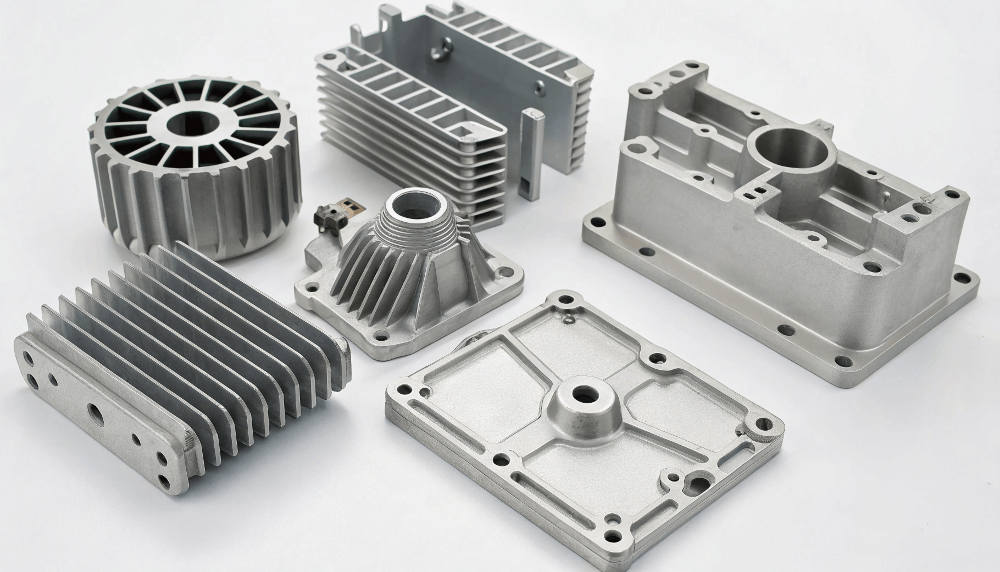

With the ability to produce complex shapes with thin walls, die casting aluminum is favored for producing parts that are lightweight yet strong. So, why is it so widely used? The answer lies in its combination of cost-effectiveness, flexibility, and the inherent properties of aluminum.
2. The Die Casting Process Explained
The die casting process is a sophisticated and efficient way of manufacturing parts with high precision. It begins with the creation of a mold, which is typically made of steel and is designed to withstand high temperatures. The mold is placed in a die casting machine, and molten aluminum is injected into the mold at high pressure.
The first key step in the process is preparing the aluminum. Aluminum alloys, commonly used for die casting, are heated until they become molten. Once the aluminum is in liquid form, it’s injected into the mold under extreme pressure. This high-pressure injection ensures that the molten aluminum fills all the cavities of the mold, ensuring a precise and consistent final product.
Ready for the good part? Once the molten aluminum has cooled and solidified, the mold is opened, and the finished part is removed. This process can be repeated as needed to create high volumes of identical parts.
One of the main advantages of die casting is that it can produce parts with very thin walls, making it a great option for lightweight applications. Additionally, the process allows for complex shapes to be produced, which would be difficult or impossible with other methods like sand casting.
Table: Die Casting Process Overview
| Step | Description |
|---|---|
| Preparation | Aluminum alloys are heated to molten form |
| Injection | Molten aluminum is injected into the mold under pressure |
| Cooling | The molten aluminum solidifies in the mold |
| Removal | The mold is opened, and the finished part is removed |
3. Benefits of Die Casting Aluminum
Die casting aluminum has become the go-to process for producing strong, lightweight parts with excellent dimensional accuracy. But what makes this process so appealing? Let’s dive into the key benefits.
One of the biggest advantages of die casting aluminum is the material itself. Aluminum is naturally corrosion-resistant, which makes it a perfect choice for products exposed to harsh conditions. The strength-to-weight ratio of aluminum is another advantage—it provides the strength of heavier metals without the added weight.
This is where it gets interesting: the precision that die casting offers allows for tight tolerances, which is critical for industries like aerospace, where even the smallest discrepancy can lead to serious issues. Additionally, the speed and efficiency of the process make it cost-effective, particularly for high-volume production.
Finally, die casting aluminum is incredibly energy-efficient. The quick solidification of aluminum minimizes the need for additional heating or cooling, saving on energy costs and reducing the environmental impact.
Table: Benefits of Die Casting Aluminum
| Benefit | Description |
|---|---|
| Strength-to-weight ratio | Aluminum is strong yet lightweight |
| Precision | High accuracy with tight tolerances |
| Corrosion resistance | Aluminum naturally resists corrosion |
| Energy efficiency | Reduced energy usage during the process |
4. Die Casting Aluminum vs. Other Methods
When considering die casting aluminum, it’s essential to understand how it compares to other methods of casting. In this section, we’ll compare die casting with two common methods: sand casting and permanent mold casting.
But here’s the kicker: While sand casting is excellent for creating large parts, it can’t achieve the same level of precision as die casting. In sand casting, a mold is created by packing sand around a pattern. The result is typically less precise and may require additional machining to meet required specifications.
On the other hand, permanent mold casting involves pouring molten aluminum into a steel mold, similar to die casting. However, permanent mold casting typically uses gravity rather than pressure to fill the mold, making it less efficient for high-volume production. Die casting, with its high-pressure injection, can produce parts much faster, with more consistent results.
Why choose die casting aluminum? The main reason is its ability to produce parts with complex shapes, thin walls, and high precision—all in a much faster timeframe compared to other methods.
Table: Die Casting vs. Other Methods
| Method | Advantages | Disadvantages |
|---|---|---|
| Die Casting | High precision, complex shapes, fast production | Higher initial mold costs |
| Sand Casting | Great for large parts, low mold costs | Lower precision, additional machining required |
| Permanent Mold Casting | High precision, better for low volumes | Slower production, not ideal for high volumes |
5. Aluminum Alloys Used in Die Casting
Aluminum alloys play a significant role in die casting, as the choice of alloy affects the strength, durability, and performance of the final product. The most commonly used alloys for die casting are 380, 383, and 413, but there are several others that may be chosen based on specific requirements.
What’s the real story? The alloy selected depends on the application. For example, the 380 alloy is commonly used for general-purpose die casting. It offers a good balance between strength and castability, making it ideal for applications like automotive parts and industrial machinery. On the other hand, 413 alloy is chosen when higher strength and heat resistance are needed.
Another important consideration is the environmental factors in which the die-cast part will be used. Aluminum alloys with higher amounts of silicon offer better wear resistance and improved casting fluidity, while alloys with higher copper content are more suitable for applications where strength is crucial.
Table: Common Aluminum Alloys for Die Casting
| Alloy Code | Composition | Common Uses |
|---|---|---|
| 380 | 9% Si, 3% Cu | Automotive parts, industrial machinery |
| 383 | 10% Si, 3% Cu | General-purpose die casting |
| 413 | 5% Cu, 2.5% Si | Aerospace parts, high-temperature applications |
| Al-Si | High Si content | Wear-resistant components |
6. Die Casting Aluminum for High-Precision Parts
In industries where high precision is non-negotiable, aluminum die casting offers significant advantages. Precision casting is essential in sectors such as aerospace, electronics, and automotive, where even small deviations can lead to costly errors.
Ready for the good part? Die casting aluminum allows manufacturers to achieve tight tolerances and fine detail in even the most complex designs. This is particularly important when it comes to creating components like engine parts, sensor housings, and brackets that require exact measurements.
The high-pressure nature of the process ensures that molten aluminum fills every cavity of the mold, resulting in consistent parts with minimal need for post-production machining. This precision reduces scrap material and increases production efficiency, ultimately lowering costs and production time.
Table: Applications of Precision Die Casting Aluminum
| Industry | Applications | Benefits |
|---|---|---|
| Aerospace | Engine parts, brackets | High precision, lightweight, durable |
| Automotive | Engine blocks, transmission cases | Strength, cost-effective mass production |
| Electronics | Sensor housings, connectors | Compact, reliable, complex designs |
| Industrial Machinery | Gearboxes, pump components | Wear-resistant, high-performance components |
7. The Role of Molds in Die Casting Aluminum
Molds are a critical component of the die casting process. The design and material of the mold directly affect the quality of the final product. Molds for die casting aluminum are typically made from high-strength steel to withstand the high pressure and temperatures of the molten aluminum.
What’s the real story here? Molds are expensive, but they are designed for longevity. A well-maintained mold can produce thousands of identical parts, making it a worthwhile investment for high-volume production. The accuracy and detail of the mold are crucial to ensuring that the aluminum fills all the cavities and creates the desired shape.
Table: Mold Material Comparison
| Material | Advantages | Disadvantages |
|---|---|---|
| Steel | Durable, withstands high temperatures | High initial cost |
| Aluminum | Lighter, less expensive | Wears out faster than steel |
| Copper | Good heat conductivity | Expensive, less durable than steel |
8. Challenges in Die Casting Aluminum
Like any manufacturing process, die casting aluminum comes with its own set of challenges. Some of the most common issues include porosity, air entrapment, and shrinkage. These issues can lead to defects in the final product, affecting the quality and strength of the part.
But here’s the kicker: while these problems are common, they are also preventable. With the right techniques and quality control, manufacturers can minimize these challenges. For example, controlling the temperature of the aluminum and using degassing methods can help reduce porosity. Similarly, using high-quality molds and improving the cooling process can prevent shrinkage.
9. Die Casting Aluminum in Automotive Industry
Die casting aluminum is widely used in the automotive industry for manufacturing lightweight and durable parts. Aluminum’s strength and resistance to corrosion make it the ideal choice for many vehicle components, including engine blocks, wheels, and transmission cases.
Ready for the good part? Die casting aluminum helps automotive manufacturers meet stringent weight and safety regulations. Lightweight parts contribute to better fuel efficiency and performance, while aluminum’s strength ensures that the parts can withstand the stresses of everyday use.
Table: Die Cast Aluminum Automotive Parts
| Part | Material Used | Benefits |
|---|---|---|
| Engine blocks | 380 Aluminum Alloy | Lightweight, durable |
| Transmission cases | 383 Aluminum Alloy | Corrosion-resistant, strong |
| Wheels | 413 Aluminum Alloy | Lightweight, cost-effective |
10. Die Casting Aluminum in Aerospace Industry
The aerospace industry relies heavily on die casting aluminum to produce lightweight, strong components for aircraft. Aluminum die casting allows for the creation of complex and high-precision parts required for engines, fuselage, and landing gear.
What’s the real story here? Die casting aluminum allows aerospace manufacturers to produce parts that meet the rigorous performance standards necessary for flight. The high strength and durability of aluminum, combined with the precision of the die casting process, make it the material of choice for this demanding industry.
Table: Die Cast Aluminum Aerospace Components
| Component | Material Used | Benefits |
|---|---|---|
| Engine components | 413 Aluminum Alloy | High strength, heat resistance |
| Fuselage parts | 380 Aluminum Alloy | Lightweight, corrosion-resistant |
| Landing gear components | Al-Si Alloy | Durability, shock absorption |
11. Die Casting Aluminum in Electronics Industry
Aluminum die casting plays a key role in the electronics industry, where it is used to create enclosures, housings, and connectors. Aluminum’s ability to dissipate heat makes it ideal for protecting sensitive electronic components.
Here’s where it gets interesting: die-cast aluminum enclosures help electronic devices run efficiently by preventing overheating. These enclosures also provide protection from dust, moisture, and physical damage, making them a popular choice in consumer electronics like smartphones, computers, and gaming consoles.
Table: Die Cast Aluminum Electronics Applications
| Application | Material Used | Benefits |
|---|---|---|
| Smartphone enclosures | 380 Aluminum Alloy | Durability, heat dissipation |
| Laptop housings | 383 Aluminum Alloy | Lightweight, sturdy |
| Gaming consoles | 413 Aluminum Alloy | Corrosion-resistant, compact |
12. Die Casting Aluminum in Consumer Goods
Aluminum die casting isn’t just limited to industrial applications. It’s also found in consumer goods like kitchen appliances, hardware, and even toys. Aluminum’s versatility allows it to be molded into intricate designs that are both functional and aesthetically appealing.
But here’s the kicker: die casting aluminum in consumer products doesn’t just enhance function—it also adds a premium look and feel. Whether it’s a designer appliance or a high-end piece of hardware, aluminum die casting elevates the product’s appearance and durability.
Table: Die Cast Aluminum in Consumer Goods
| Product | Material Used | Benefits |
|---|---|---|
| Kitchen appliances | 380 Aluminum Alloy | Heat resistance, durability |
| Hardware tools | 383 Aluminum Alloy | Lightweight, corrosion-resistant |
| Toys | 413 Aluminum Alloy | Safe, durable, intricate designs |
13. Sustainability in Die Casting Aluminum
Sustainability is increasingly important in today’s manufacturing world, and die casting aluminum is no exception. The process itself is energy-efficient, and aluminum is highly recyclable, making it an environmentally friendly choice for manufacturing.
Ready for the good part? Aluminum’s recyclability means that die-cast parts can be reused, reducing the need for raw materials and lowering the carbon footprint. By recycling aluminum, manufacturers not only save on costs but also contribute to reducing waste and conserving resources.
Table: Sustainability in Die Casting Aluminum
| Sustainability Factor | Description |
|---|---|
| Recyclability | Aluminum can be easily recycled |
| Energy efficiency | Quick cooling reduces energy consumption |
| Low waste | Minimal scrap material produced during casting |
14. Future of Die Casting Aluminum
The future of die casting aluminum looks promising, with innovations on the horizon. Technological advancements are enhancing the precision and efficiency of the process, while the demand for lightweight materials in industries like automotive and aerospace continues to rise.
What’s next? The integration of 3D printing with die casting aluminum is one such development that could revolutionize the industry. By combining the speed and precision of die casting with the flexibility of 3D printing, manufacturers will be able to create more complex designs in less time and at a lower cost.
Table: Future Trends in Die Casting Aluminum
| Trend | Description |
|---|---|
| 3D printing integration | Combining 3D printing with die casting |
| Automation | Increased automation for faster production |
| New alloys | Development of new aluminum alloys |
15. Conclusion
Die casting aluminum is a highly efficient and versatile method for producing complex, durable parts. With its numerous advantages, including high precision, cost-effectiveness, and environmental benefits, it’s no wonder that industries such as automotive, aerospace, and electronics rely heavily on aluminum die casting.
In conclusion, the future of die casting aluminum is bright, with ongoing advancements in technology and sustainability driving the process forward. If you’re considering die casting for your next project, understanding the process and its benefits will help you make the best choice for your manufacturing needs.
FAQ Section
Q1: What is die casting aluminum?
Die casting aluminum is a process that involves injecting molten aluminum into a mold under high pressure to produce parts that are strong, precise, and complex in design.
Q2: How does die casting work?
The process begins by melting aluminum alloys, which are then injected into a mold under high pressure. After cooling and solidifying, the mold is opened, revealing the final product.
Q3: What are the advantages of die casting aluminum?
Die casting aluminum offers benefits like lightweight yet strong parts, corrosion resistance, and high precision. It’s also energy-efficient, making it ideal for mass production.
Q4: Can die casting aluminum be used in the automotive industry?
Yes, die casting aluminum is widely used in the automotive industry for manufacturing lightweight and durable parts like engine blocks, transmission cases, and wheels.
Q5: How sustainable is die casting aluminum?
Die casting aluminum is sustainable due to the recyclability of aluminum and the energy-efficient nature of the process. It reduces waste and lowers carbon emissions when recycled properly.
