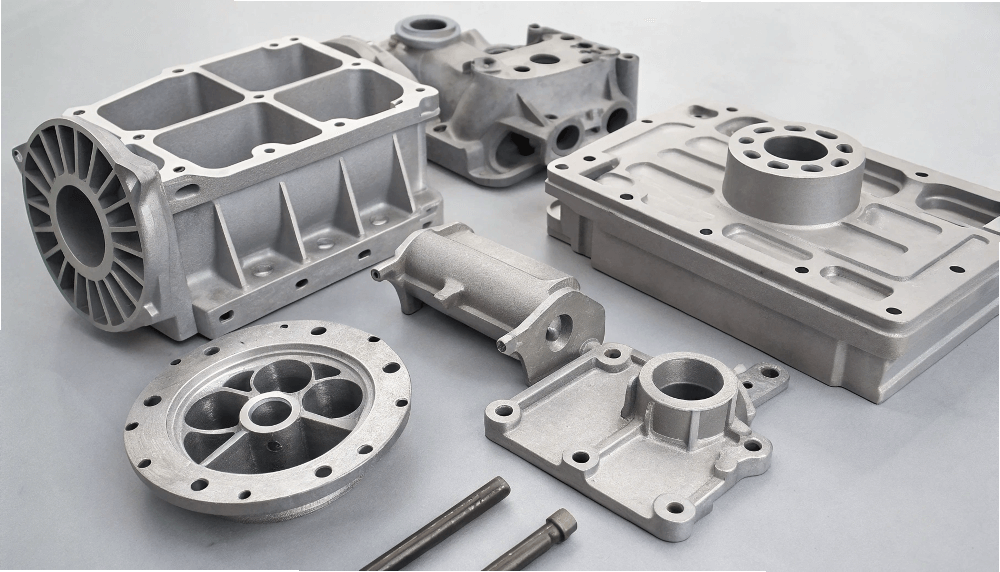

Sand casting aluminum is one of the most widely used methods in manufacturing for producing complex and durable aluminum parts. This process allows manufacturers to create products for industries ranging from automotive to aerospace. In this article, we will dive deep into the sand casting aluminum process, its advantages, challenges, and its role in various manufacturing sectors. By the end, you will have a comprehensive understanding of how this technique is applied in modern manufacturing.
1. What is Sand Casting Aluminum?
Sand casting aluminum involves creating molds from sand, which are then filled with molten aluminum to form various parts. The process dates back thousands of years, making it one of the oldest known methods for metalworking. But here’s the kicker: despite its age, it remains one of the most effective techniques for producing aluminum parts today. Sand casting is highly adaptable, making it suitable for a wide range of applications, from small-scale prototypes to large production runs.
The process starts with creating a mold, typically made from fine sand and a binder. The binder holds the sand particles together to form a solid structure that can withstand the high temperatures of molten aluminum. Once the mold is prepared, molten aluminum is poured into the cavity and allowed to cool and harden. After cooling, the mold is broken away, leaving behind the finished part. The simplicity of this process allows for great flexibility in design, but also comes with its own set of challenges, which we will cover later.
Key Features of Sand Casting Aluminum:
- Cost-effective, especially for small runs.
- Flexible and capable of producing complex shapes.
- Ideal for large, low-volume production runs.
| Advantage | Description |
|---|---|
| Cost-effective | Low material costs and simple mold-making process |
| Flexibility | Can create complex shapes not possible with other methods |
| Large-scale production | Suitable for large volumes of castings |
2. How Does the Sand Casting Process Work for Aluminum?
The sand casting process for aluminum follows a series of steps that ensure a high-quality casting. First, a pattern of the desired shape is created, typically made from a material like wax, which will eventually be removed from the mold. This pattern is then placed in a container filled with a sand mixture, which will form the mold. After packing the sand tightly around the pattern, the mold is hardened using heat or pressure.
Once the mold is ready, molten aluminum is poured into it. The aluminum is heated to temperatures exceeding 1,200°F to ensure it is in a liquid state before pouring. After pouring, the mold is left to cool, allowing the aluminum to solidify in the shape of the desired part. Once the part has cooled, the sand mold is removed, leaving the finished aluminum casting.
Key Considerations:
- Mold material choice impacts the final product’s quality.
- Proper cooling time is necessary to avoid defects such as cracking or porosity.
- Temperature control is critical for ensuring uniform casting.
| Step | Process Description |
|---|---|
| Pattern Creation | A pattern is made of the shape to be cast |
| Mold Formation | The pattern is surrounded by sand to create the mold |
| Pouring | Molten aluminum is poured into the mold cavity |
| Cooling | Allowing the molten metal to cool and solidify |
| Mold Removal | Breaking the mold away to reveal the finished part |
3. What Are the Advantages of Sand Casting Aluminum in Manufacturing?
Sand casting aluminum offers numerous advantages in manufacturing, which is why it remains a top choice for creating durable parts. First and foremost, it is a cost-effective method, especially when producing small quantities of complex parts. It also allows manufacturers to work with a wide variety of aluminum alloys, making it versatile for different applications. Moreover, the ability to cast intricate and highly detailed parts makes it ideal for industries such as automotive, aerospace, and machinery.
Another significant advantage is the speed at which sand casting aluminum can be performed. Once the mold is prepared, the casting process itself is relatively fast, allowing for high production rates. Additionally, sand molds can be reused multiple times, reducing costs for manufacturers, making it an excellent choice for mass production of aluminum parts.
But here’s the real story: the process can be further optimized with technological advancements such as automated molding machines and improved sand materials, which enhance the overall efficiency and precision of the process.
Advantages of Sand Casting:
- Low cost for small to medium production runs.
- High versatility with various alloys.
- Quick turnaround time and high production rates.
| Advantage | Description |
|---|---|
| Cost-effective | Cheap mold material and labor costs for small runs |
| Versatile | Can be used for different aluminum alloys and shapes |
| Speed | Faster than other casting methods with higher production rates |
4. What Are the Key Components in Sand Casting Aluminum?
Sand casting aluminum relies on several key components to ensure the success of the casting process. The most essential component is the mold, typically made from a mixture of sand and a binder. The binder is crucial in holding the sand particles together, allowing the mold to withstand the molten aluminum without breaking apart. Another vital component is the pattern, which serves as a model for the mold. The material of the pattern can vary, but commonly used materials include wax, metal, or even plastic.
The final component of the process is the molten aluminum itself. Aluminum is favored for its low melting point, which makes it easier to work with compared to other metals. Its ability to be easily molded into intricate shapes makes it ideal for sand casting. When the aluminum cools and hardens, it retains the shape of the mold and becomes the finished casting.
Essential Components of Sand Casting:
- Sand and binder: form the mold structure.
- Pattern: a model of the part to be cast.
- Aluminum alloy: the metal that is melted and poured into the mold.
| Component | Description |
|---|---|
| Sand and Binder | Forms the mold that holds the molten aluminum |
| Pattern | A replica of the final part used to create the mold |
| Aluminum Alloy | The molten metal used in the casting process |
5. What Types of Aluminum Alloys are Best for Sand Casting?
When it comes to sand casting aluminum, the choice of aluminum alloy plays a pivotal role in the final properties of the casting. Different alloys offer varying characteristics, such as strength, durability, and resistance to corrosion. Common aluminum alloys used in sand casting include A356, A380, and 356. These alloys are favored for their excellent castability, low cost, and suitability for high-stress applications.
A356 aluminum, for example, is known for its good strength-to-weight ratio and is commonly used in the aerospace and automotive industries. A380 aluminum, on the other hand, is widely used in applications that require good casting flow and strength, making it ideal for automotive components such as engine blocks.
What’s the real story? By selecting the right aluminum alloy for your casting, you can greatly enhance the performance of your final product, ensuring it meets the specific needs of the industry you’re targeting.
Common Aluminum Alloys for Sand Casting:
- A356: Used in automotive and aerospace applications for lightweight, durable parts.
- A380: Ideal for parts requiring good casting flow and strength.
- 356: Popular in applications requiring high stress resistance.
| Alloy Type | Key Characteristics | Common Uses |
|---|---|---|
| A356 | Lightweight, good strength-to-weight ratio | Aerospace, automotive parts |
| A380 | Excellent casting flow, good strength | Engine blocks, pump housings |
| 356 | High stress resistance, excellent fluidity | Industrial machinery parts, automotive parts |
6. What Are the Challenges and Limitations of Sand Casting Aluminum?
While sand casting aluminum offers many benefits, it also comes with its set of challenges and limitations. One of the primary issues is the surface finish of the castings. Sand casting typically results in a rougher surface compared to other casting methods like die casting. This can require additional finishing steps, such as polishing or grinding, to achieve a smooth surface.
Another challenge is the potential for defects during the casting process. Common defects in sand casting include porosity, which occurs when gas bubbles are trapped in the casting, and shrinkage, which happens when the aluminum solidifies and contracts. These defects can be minimized with proper mold preparation and temperature control, but they are still a concern that manufacturers need to manage.
This is where it gets interesting: modern advancements in sand casting, such as the use of more advanced sand binders and automated processes, have significantly reduced these limitations, resulting in higher-quality castings.
Challenges of Sand Casting Aluminum:
- Surface roughness requires additional finishing.
- Defects like porosity and shrinkage can occur.
- Temperature control and mold preparation are critical.
| Challenge | Description | Solution |
|---|---|---|
| Surface Finish | Sand casting typically results in a rough finish | Additional polishing or grinding required |
| Defects | Issues like porosity and shrinkage can occur | Proper mold preparation and temperature control |
| Mold Preparation | Poor mold design can lead to defects | Use of automated systems and advanced sand binders |
7. How Do You Prepare for Sand Casting Aluminum?
Proper preparation is critical to ensure a successful sand casting aluminum process. The first step is the preparation of the pattern. The pattern is a replica of the final part and can be made from various materials, depending on the desired characteristics of the finished product. Once the pattern is created, the next step is the preparation of the sand mold. Sand is mixed with a binder and then packed around the pattern to form the mold. The mold must be compacted thoroughly to withstand the high temperature of the molten aluminum.
What’s the real story? The more meticulous the preparation, the better the final casting will be. Ensuring the sand is properly mixed and compacted, the pattern is well-formed, and the aluminum is at the right temperature can make all the difference in reducing defects and ensuring high-quality castings.
Preparation Steps:
- Create the pattern: a model of the final part.
- Prepare the sand mold: mix sand with binder and compact around the pattern.
- Ensure proper temperature control: heat the aluminum to the right temperature before pouring.
| Preparation Step | Process Description | Importance |
|---|---|---|
| Pattern Creation | Create a model of the final part | Ensures accurate final shape |
| Sand Mold Preparation | Mix sand with binder and compact it around the pattern | Forms the mold that holds the molten aluminum |
| Temperature Control | Heat the aluminum to the proper pouring temperature | Ensures optimal flow and solidification |
8. What Are Common Defects in Sand Casting Aluminum?
Even with the most careful preparation, defects can still occur in sand casting aluminum. One of the most common defects is porosity, which occurs when air or gas is trapped inside the casting, creating holes. These holes can weaken the part and affect its structural integrity. Another frequent issue is shrinkage, which happens when the aluminum cools and contracts, causing voids or cracks in the casting. Shrinkage can be minimized by using proper pouring techniques and ensuring the mold is heated adequately.
Ready for the good part? Advances in technology, such as the use of new materials and automated systems, have greatly reduced the occurrence of these defects, making sand casting aluminum more efficient and effective than ever before.
Common Defects in Sand Casting:
- Porosity: Trapped gas causes bubbles or holes in the casting.
- Shrinkage: Aluminum contracts as it cools, causing voids.
- Surface defects: Rough or uneven surfaces can require extra finishing work.
| Defect | Description | Solution |
|---|---|---|
| Porosity | Gas bubbles trapped in the aluminum | Improve mold preparation and temperature control |
| Shrinkage | Aluminum contracts as it solidifies | Proper mold design and pouring techniques |
| Surface Defects | Rough, uneven surfaces requiring finishing | Polishing or grinding post-casting |
9. How Do You Improve the Quality of Sand Cast Aluminum?
Improving the quality of sand cast aluminum parts starts with meticulous attention to the preparation and execution of the sand casting process. One of the most important steps is optimizing mold design. A well-designed mold ensures that the molten aluminum flows smoothly and fills all sections of the mold cavity, which reduces the risk of defects like shrinkage and cold shuts. By improving the mold design and ensuring that it is free from contaminants or flaws, manufacturers can significantly reduce defects and improve the overall quality of the final casting.
Temperature control during the pouring process is another critical factor. The molten aluminum must be at the right temperature to flow properly into the mold and form a solid casting. Pouring aluminum that is too hot or too cold can result in defects such as porosity or uneven cooling, which impacts the quality of the final product. Using advanced monitoring systems to track and regulate temperature during the casting process can help achieve better results.
The last step in improving quality is post-casting finishing. After the aluminum has solidified and the mold is removed, the surface of the casting is often rough or imperfect. By using finishing techniques like polishing, grinding, and sandblasting, manufacturers can improve the surface quality of the part. This not only enhances the appearance but also ensures that the part is free from sharp edges or irregularities that might affect its functionality.
Key Methods for Improving Sand Cast Aluminum Quality:
- Design and preparation of a high-quality mold.
- Proper temperature control during pouring.
- Post-casting finishing processes to refine surface quality.
| Method | Description | Benefits |
|---|---|---|
| Mold Optimization | Improving the mold design to ensure uniformity | Reduces defects like shrinkage and cold shuts |
| Temperature Control | Monitoring and adjusting the aluminum temperature | Ensures optimal flow and minimizes defects |
| Post-Casting Finishing | Polishing, grinding, or sandblasting to improve surface quality | Enhances the appearance and functionality |
10. How is Sand Casting Aluminum Used in the Automotive Industry?
The automotive industry is one of the largest consumers of sand cast aluminum parts, and for good reason. Sand casting offers manufacturers the flexibility to produce complex parts that are both durable and cost-effective. In the automotive sector, sand casting is particularly useful for making engine blocks, transmission housings, and other structural components that need to withstand high levels of stress.
One of the main reasons for sand casting’s popularity in the automotive industry is its ability to handle large, intricate parts. Unlike die casting, which is often limited to smaller parts, sand casting can accommodate much larger components. Furthermore, the process allows for the use of different aluminum alloys, which can be tailored to meet specific strength, weight, and durability requirements.
For example, automotive engine blocks made through sand casting can be engineered to be lighter than their iron counterparts, contributing to improved fuel efficiency. These parts can also be designed to have intricate internal passages and cooling channels that are necessary for optimal engine performance. Sand casting’s ability to produce these complex shapes makes it an ideal method for manufacturing automotive parts.
Applications of Sand Casting in Automotive:
- Engine blocks: Lightweight and durable aluminum engine components.
- Transmission housings: Complex parts that require precise molding.
- Brake components: Parts that require high strength and corrosion resistance.
| Automotive Part | Description | Benefits |
|---|---|---|
| Engine Blocks | Lightweight aluminum engine components | Improved fuel efficiency and durability |
| Transmission Housings | Complex parts with intricate shapes | High strength and precision molding |
| Brake Components | Brake parts made from sand-cast aluminum | Strength, corrosion resistance, and longevity |
11. How Does Sand Casting Aluminum Compare to Other Casting Methods?
When comparing sand casting aluminum to other casting methods, such as die casting or investment casting, each method has its own advantages and limitations. Sand casting is often favored for its versatility and cost-effectiveness, especially in producing complex shapes with low to medium production volumes. It is particularly useful for parts that do not require the fine tolerances offered by other casting methods.
Die casting, for example, offers better precision and is ideal for mass production of small, intricate parts, but it requires higher upfront tooling costs and may not be suitable for larger parts. In contrast, sand casting can be used to produce larger components at a lower cost, although the surface finish may not be as smooth as die-cast parts. Additionally, while investment casting provides the highest level of precision, it is also more expensive and time-consuming, making it less suitable for high-volume production.
What’s the kicker? Each casting method has its place in the manufacturing world, and the decision on which to use depends on factors like part size, complexity, and production volume. Sand casting remains an excellent option for manufacturers looking to produce high-quality parts without breaking the bank.
Comparison of Sand Casting with Other Methods:
- Sand casting: Great for large, complex parts at a lower cost.
- Die casting: Best for small, precise parts but higher cost.
- Investment casting: Highest precision but most expensive.
| Casting Method | Ideal Use Case | Pros | Cons |
|---|---|---|---|
| Sand Casting | Large, complex parts at low to medium volumes | Cost-effective, flexible, versatile | Surface finish may require extra work |
| Die Casting | Small, precise parts in large quantities | High precision, fast production | Expensive tooling and limited part size |
| Investment Casting | Small, highly intricate parts | Superior precision and surface quality | Expensive, slow production |
12. What Equipment is Needed for Sand Casting Aluminum?
For a successful sand casting aluminum operation, several types of equipment are required. The most essential tool is the molding machine, which is used to create the mold by packing sand around the pattern. There are various types of molding machines available, depending on the scale of production and the type of mold required. Some machines use a vibration method to compact the sand, while others use pressure to form the mold.
Another critical piece of equipment is the furnace, which is used to melt the aluminum. The furnace must be capable of reaching temperatures over 1,200°F to ensure the aluminum is in a molten state before pouring. Once the aluminum is melted, it is poured into the mold using a pouring system, which can be either manual or automated.
Lastly, cooling systems are necessary to ensure that the castings solidify correctly. The cooling process helps to prevent defects like shrinkage and warping, ensuring the final product meets quality standards. Depending on the part size and complexity, additional finishing tools such as sandblasters, grinders, and polishers may be used to refine the surface of the casting.
Key Equipment for Sand Casting Aluminum:
- Molding machines: for mold creation.
- Furnaces: for melting the aluminum.
- Pouring systems: for pouring molten aluminum into molds.
- Cooling systems: for solidifying the casting.
| Equipment | Description | Purpose |
|---|---|---|
| Molding Machines | Machines used to pack sand around the pattern | Create the mold for the aluminum casting |
| Furnaces | High-temperature furnaces to melt aluminum | Melt the aluminum to a molten state |
| Pouring Systems | Manual or automated systems for pouring aluminum | Pour molten aluminum into the mold cavity |
| Cooling Systems | Systems to control the cooling process of the cast | Ensure proper solidification and shape |
13. How Do You Scale Sand Casting Aluminum Production?
Scaling sand casting aluminum production involves expanding from small-scale to large-scale manufacturing without sacrificing quality. The first step in scaling up is investing in more advanced machinery. This might include automated molding machines, robotic arms for pouring, and improved cooling systems that increase efficiency and reduce the risk of human error. Automation plays a huge role in speeding up production and ensuring consistent quality across larger volumes.
Another important factor in scaling production is material sourcing. As production volume increases, manufacturers must ensure they can obtain enough raw materials (sand, aluminum alloys) at competitive prices. Working with reliable suppliers and maintaining strong relationships is crucial to ensuring a consistent and timely supply chain.
Cost-efficiency also becomes a key factor when scaling up production. While larger volumes reduce unit costs, the initial investment in machinery, tooling, and materials can be high. Manufacturers must carefully evaluate the cost-benefit ratio of scaling their operations and make strategic decisions regarding the expansion of their facilities.
Key Factors for Scaling Production:
- Investment in automation and improved machinery.
- Securing a steady supply of raw materials.
- Evaluating cost-efficiency and scaling benefits.
| Scaling Factor | Description | Key Consideration |
|---|---|---|
| Automation | Increasing automation to speed up the casting process | Reduces labor costs and improves consistency |
| Material Sourcing | Ensuring consistent supply of sand and aluminum alloys | Establish reliable supplier relationships |
| Cost-Efficiency | Evaluating cost-benefit ratio when scaling production | Balancing investment with production costs |
14. What Are the Environmental Impacts of Sand Casting Aluminum?
As with any manufacturing process, sand casting aluminum has its environmental considerations. The use of sand in the mold is not inherently harmful, but the binder materials used to hold the sand together can release pollutants during the casting process. Additionally, the high temperatures required to melt aluminum lead to energy consumption and CO2 emissions.
To mitigate these environmental impacts, many manufacturers are turning to more sustainable practices. For example, some have switched to using water-based binders that are less harmful to the environment. Others are exploring ways to recycle sand, reducing the need for new sand and minimizing waste. Modern technologies are also being employed to reduce energy consumption, such as using electric furnaces or heat recovery systems that recycle heat from the melting process.
What’s the kicker? By adopting environmentally-friendly practices, sand casting aluminum manufacturers can reduce their environmental footprint while still producing high-quality parts.
Environmental Impact Considerations:
- Energy consumption from melting aluminum.
- Use of binders that may release pollutants.
- Opportunities for recycling and waste reduction.
| Environmental Impact | Description | Mitigation Strategy |
|---|---|---|
| Energy Consumption | High energy usage to melt aluminum | Using electric furnaces and heat recovery systems |
| Binder Materials | Pollutants released by traditional binders | Switching to eco-friendly water-based binders |
| Waste Management | Sand waste and casting by-products | Recycling sand and reducing waste |
15. How Can I Get Started with Sand Casting Aluminum in My Workshop?
Getting started with sand casting aluminum in a workshop is more accessible than you might think. The first step is to set up a dedicated casting area with proper ventilation and safety equipment. You’ll need to invest in a furnace capable of reaching the necessary temperatures for melting aluminum. Additionally, investing in basic tools such as molding machines, sand mixers, and safety gear is crucial to ensuring a safe and effective workspace.
Once you have the necessary equipment, start by experimenting with small molds and simple aluminum parts. This will allow you to familiarize yourself with the process and troubleshoot any issues that arise. Over time, you can scale up your operation by refining your techniques and investing in more advanced equipment.
Lastly, always keep safety in mind. Molten aluminum is extremely hot and can cause serious burns if mishandled. Be sure to use heat-resistant gloves, face shields, and protective clothing at all times when working with molten metal.
Getting Started in Sand Casting Aluminum:
- Set up a dedicated casting area with necessary safety equipment.
- Invest in a furnace, molding machines, and sand mixers.
- Begin with small, simple molds before scaling up production.
| Equipment | Description | Key Consideration |
|---|---|---|
| Furnace | A high-temperature furnace for melting aluminum | Ensure it can reach temperatures above 1,200°F |
| Molding Machines | Machines for shaping the sand around the pattern | Invest in manual or automated machines |
| Safety Gear | Gloves, face shields, and protective clothing | Essential for handling molten aluminum |
FAQ Section
Q1: What is sand casting aluminum?
Sand casting aluminum is a process in which molten aluminum is poured into a mold made from sand. This process is used to create aluminum parts for various industries such as automotive and aerospace.
Q2: How does sand casting aluminum work?
The process begins by creating a mold from sand, followed by pouring molten aluminum into the mold cavity. After cooling, the mold is broken away to reveal the cast part.
Q3: What are the main advantages of sand casting aluminum?
Sand casting aluminum is cost-effective, versatile, and suitable for producing complex parts. It also allows for high production rates and works well with different aluminum alloys.
Q4: What are common defects in sand casting aluminum?
Common defects include porosity, shrinkage, and surface imperfections. These can be reduced with proper mold preparation, temperature control, and post-casting finishing.
Q5: What equipment is needed for sand casting aluminum?
Key equipment includes sand molding machines, melting furnaces, pouring tools, and cooling systems. Protective safety equipment is also necessary when handling molten aluminum.
