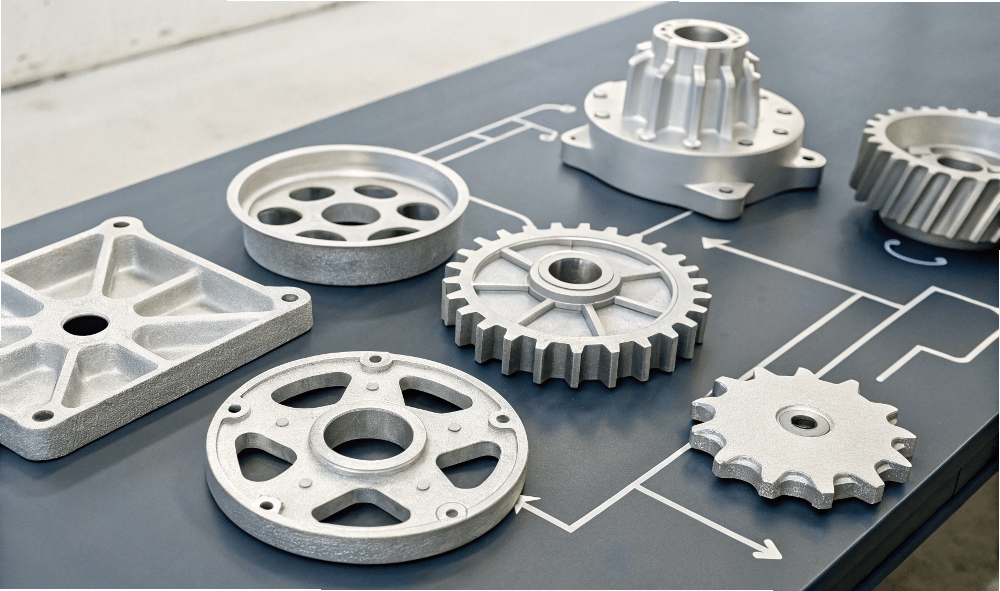

Aluminum sand casting is a crucial process used to create high-quality aluminum parts. It plays a significant role in various industries, from automotive to aerospace. If you’re looking to understand the ins and outs of aluminum sand casting, you’re in the right place. In this guide, we’ll break down the entire process, explain the key steps involved, and highlight the tools and techniques that make it successful. Ready to learn more? Let’s dive in!
1. What is the Aluminum Sand Casting Process?
The aluminum sand casting process is a method used to create aluminum parts by pouring molten aluminum into a sand mold. The mold is prepared by compacting sand around a pattern, which represents the final shape of the casting. After the aluminum cools and solidifies, the sand mold is removed, leaving behind the finished part. But here’s the kicker: this process is versatile and cost-effective, especially for producing complex shapes in large quantities.
The process has been around for centuries, and it continues to evolve with new technologies and materials. In the early days, sand casting was done by hand, but today, it involves advanced machinery that ensures better precision and faster production. This evolution has made aluminum sand casting one of the most widely used methods in industries such as automotive, aerospace, and construction.
Let’s take a closer look at the benefits of using aluminum sand casting.
| Stage | Description |
|---|---|
| Mold Preparation | Sand is mixed with binder and compacted around a pattern to create the mold. |
| Melting Aluminum | Aluminum is melted in a furnace to around 660°C (1220°F). |
| Pouring Aluminum | Molten aluminum is poured into the mold cavity. |
| Cooling | The aluminum cools and solidifies within the mold. |
| Mold Removal | After cooling, the sand mold is broken away, revealing the final part. |
2. Why is Sand Casting Used for Aluminum?
When it comes to aluminum parts, sand casting is often the go-to method. Why, you ask? Well, there are several key reasons. First and foremost, sand casting is incredibly cost-effective. The materials used in the process, primarily sand, are inexpensive, making it an ideal choice for large-scale production runs.
Moreover, sand casting can be used to produce very complex shapes that might be difficult or impossible to achieve with other casting methods. For example, intricate geometries, hollow sections, and detailed surface features are all achievable through sand casting. This flexibility makes it particularly appealing to industries like automotive, where precise and custom parts are required.
In addition, the aluminum alloy itself plays a role in the casting process. Aluminum is known for its excellent fluidity, making it easier to pour and fill molds. This, combined with the sand mold’s ability to handle high temperatures, ensures that the casting process produces strong and durable parts. But what really sets aluminum sand casting apart is its ability to achieve high precision and maintain good surface quality, all while keeping costs low.
Ready for the good part? Let’s dive deeper into how the process actually works.
| Benefit | Explanation |
|---|---|
| Cost-Effective | Low-cost materials and reusable sand make this method affordable for large runs. |
| Versatile Shapes | Can produce complex, intricate shapes that may be difficult to achieve with other methods. |
| Precision | Sand casting allows for high precision and good surface quality, ideal for custom parts. |
| Durability | Aluminum retains its strength and durability in the final casting. |
3. How Does the Aluminum Sand Casting Process Work?
The aluminum sand casting process involves several key steps, each crucial for ensuring the final product meets the desired specifications. Here’s a quick breakdown of the main stages involved:
- Step 1: Preparing the Mold
The first step is creating the mold. Sand is mixed with a binder to hold the shape, and the pattern of the part is placed inside the mold box. The sand is then compacted around the pattern, creating a cavity in the shape of the part. - Step 2: Melting the Aluminum
Once the mold is prepared, the next step is to melt the aluminum. Aluminum is heated to its melting point in a furnace, typically around 660°C (1220°F). The molten aluminum is then carefully poured into the mold cavity. - Step 3: Cooling and Solidifying
After the aluminum is poured into the mold, it is left to cool and solidify. This process can take anywhere from a few minutes to several hours, depending on the size and complexity of the part being cast. - Step 4: Removing the Mold
Once the aluminum has cooled and hardened, the mold is broken away, revealing the finished part. Any leftover sand is removed, and the part is cleaned and inspected.
This is where it gets interesting. While the basic process remains the same, there are many variations depending on the type of sand mold used, the size of the casting, and the intended application. The versatility of aluminum sand casting allows manufacturers to adapt the process to meet the unique requirements of each project.
| Step | Description |
|---|---|
| Mold Preparation | Sand and binder are mixed, and the pattern is placed inside the mold box. |
| Melting Aluminum | Aluminum is heated to around 660°C (1220°F) in a furnace. |
| Pouring Aluminum | Molten aluminum is poured into the mold cavity. |
| Cooling and Solidifying | Aluminum cools and solidifies, creating the part. |
| Mold Removal | The sand mold is broken away after cooling to reveal the part. |
4. What Are the Different Types of Sand Molds in Casting?
Not all sand molds are created equal. The type of sand used can significantly affect the outcome of the casting process. Let’s look at the main types of sand molds used in aluminum sand casting:
- Green Sand Molds
Green sand is a mixture of sand, clay, and water. It’s the most common type of mold used for aluminum sand casting due to its ease of use and cost-effectiveness. The term “green” refers to the fact that the mold is not hardened by heat, but is instead “wet” when used. - Shell Sand Molds
Shell sand casting uses a shell of fine sand and a binder material to create a more precise and detailed mold. The shell is typically heated to high temperatures to improve the mold’s durability and heat resistance. - No-Bake Sand Molds
No-bake molds use a chemical binder instead of water to harden the mold. These molds are ideal for creating larger, more complex parts that require a high level of precision.
The choice of mold material depends on factors like the size of the part, the complexity of the design, and the specific requirements of the casting process. It’s important to select the right mold material to achieve the best results.
| Mold Type | Features |
|---|---|
| Green Sand | Mixture of sand, clay, and water, commonly used and cost-effective. |
| Shell Sand | Uses fine sand and binder, produces detailed and precise molds. |
| No-Bake Sand | Chemical binder is used, suitable for larger and complex parts. |
5. How Are Molds Prepared for Aluminum Sand Casting?
Mold preparation is a critical step in the aluminum sand casting process. The quality of the mold directly impacts the quality of the final casting. So, how exactly are molds prepared?
First, the sand is mixed with a binder to create a strong, cohesive mixture. The binder holds the sand particles together and ensures that the mold retains its shape during the casting process. The sand is then packed into the mold box, with the pattern placed inside.
Once the mold is packed, it is compacted to ensure that it holds its shape when molten aluminum is poured into it. This is where the bucket brigade comes in: If the mold is too loose, the aluminum may not fill it properly, resulting in defects like misruns and cold shuts. Proper compaction is essential to achieving a high-quality mold that can withstand the heat of the molten aluminum.
For larger parts, the mold may need to be heated to improve its strength and heat resistance. The final step involves making sure that the mold cavity is free of debris and ready for pouring.
| Mold Preparation Step | Description |
|---|---|
| Sand Mixture | Sand is mixed with binder to create a cohesive mixture. |
| Compaction | Sand is compacted around the pattern to create a stable mold. |
| Heating (Optional) | For large parts, the mold is heated to improve durability. |
| Cavity Cleaning | The mold cavity is cleaned to ensure no debris is present. |
6. What Are the Tools and Equipment Used in Aluminum Sand Casting?
Aluminum sand casting requires a variety of tools and equipment to ensure that the process runs smoothly and efficiently. Here’s a rundown of the essential tools used in the process:
- Crucibles
Crucibles are used to melt aluminum. These containers can withstand high temperatures and hold molten metal until it’s ready to be poured into the mold. - Sand Molding Tools
These tools help create the mold cavity. They include sand rammers, which compact the sand, and mold boxes, which hold the sand and pattern during molding. - Pouring Equipment
Pouring molten aluminum requires careful control. Pouring ladles and automatic pouring machines are used to ensure that the molten aluminum is transferred into the mold without spills or splashes. - Sand Reclamation Equipment
Sand used in sand casting can be reused multiple times. Sand reclamation equipment helps clean and recycle used sand, reducing waste and lowering costs.
These tools are designed to make the sand casting process as efficient and precise as possible. But what’s the real story? The quality of the tools and equipment used can significantly impact the final casting quality.
| Tool Type | Purpose |
|---|---|
| Crucibles | Used for melting aluminum to its proper temperature. |
| Sand Molding Tools | Tools like sand rammers help compact the sand and shape the mold. |
| Pouring Equipment | Ladles and automatic machines control the pouring of molten aluminum. |
| Sand Reclamation | Recycles and cleans sand for reuse in the next casting cycle. |
7. How Is Aluminum Melted for Sand Casting?
Melting aluminum is one of the most critical steps in the sand casting process. The aluminum must be heated to the correct temperature in order to flow easily into the mold. But how exactly is aluminum melted for sand casting?
Aluminum is typically melted in an electric furnace or a gas-fired furnace. These furnaces are designed to maintain precise temperature control, which is essential for producing high-quality castings. The aluminum is heated to around 660°C (1220°F), which is the temperature at which it becomes molten.
It’s important to monitor the temperature closely to avoid overheating, which can lead to defects in the casting. Overheating can cause the aluminum to become too thin or burn, affecting the strength and durability of the final part. This is why temperature control is crucial during the melting process.
Once the aluminum reaches the proper temperature, it’s ready to be poured into the mold. Ready for the good part? Let’s talk about the common defects that can arise in aluminum sand casting.
| Furnace Type | Purpose |
|---|---|
| Electric Furnace | Provides precise control over temperature, ideal for melting aluminum. |
| Gas-Fired Furnace | Used for larger batches, providing a cost-effective melting solution. |
| Temperature Control | Crucial to avoid overheating and ensure proper pouring temperature. |
8. What Are the Common Defects in Aluminum Sand Casting?
Even the most experienced aluminum sand casting professionals can encounter defects during the process. Here are some of the most common defects that can arise:
- Shrinkage Cavities
These occur when the aluminum cools too quickly and leaves gaps in the casting. Shrinkage cavities can be prevented by controlling the cooling rate and ensuring that the mold is designed to allow for proper solidification. - Misruns and Cold Shuts
Misruns occur when the molten aluminum doesn’t completely fill the mold cavity. Cold shuts happen when two streams of molten aluminum fail to fuse properly. These defects are often caused by improper pouring techniques or incorrect mold design. - Porosity
Porosity occurs when gas is trapped in the casting, leading to holes or bubbles in the final part. This can be caused by the metal being poured too slowly or at the wrong temperature.
The good news? Many of these defects can be avoided by paying close attention to the mold preparation, pouring technique, and cooling process.
| Defect | Cause |
|---|---|
| Shrinkage Cavities | Occurs when aluminum cools too quickly, leaving gaps. |
| Misruns | Happens when molten aluminum doesn’t fully fill the mold. |
| Cold Shuts | When two streams of molten aluminum fail to fuse together. |
| Porosity | Trapped gas forms holes or bubbles in the part. |
9. How Do You Improve the Quality of Aluminum Sand Castings?
Improving the quality of aluminum sand castings involves several key factors. These include proper mold preparation, controlling the pouring speed, and post-casting treatments.
One of the most important steps in improving casting quality is mold preparation. If the mold is poorly compacted or improperly designed, defects like shrinkage cavities and misruns are more likely to occur. Proper compaction and precise mold design are essential for ensuring a smooth casting process.
Controlling the pouring speed and temperature is another crucial factor. Pouring molten aluminum too quickly or at the wrong temperature can lead to defects like cold shuts and porosity. By carefully controlling the pouring process, you can minimize these issues and produce higher-quality castings.
After the casting is complete, post-casting treatments like cleaning, heat treatment, and surface finishing can also help improve the quality of the final part. Heat treatment can strengthen the aluminum and improve its mechanical properties, while surface finishing ensures that the part meets aesthetic and functional requirements.
| Quality Improvement Method | Description |
|---|---|
| Proper Mold Preparation | Ensuring compacted molds reduce defects like misruns and shrinkage cavities. |
| Control Pouring Speed/Temperature | Proper control ensures aluminum fills the mold correctly without defects. |
| Post-Casting Treatments | Heat treatment and cleaning improve mechanical properties and surface finish. |
10. What Are the Benefits of Aluminum Sand Castings?
Aluminum sand casting offers several benefits that make it an attractive option for manufacturers. Here are just a few:
- Cost-Effectiveness
Aluminum sand casting is a relatively inexpensive method of producing parts, especially when compared to other casting methods like die casting. The materials used, such as sand and binders, are cheap and widely available. - Flexibility
Sand casting can be used to create parts of virtually any shape or size. Whether you need a small, intricate part or a large, robust component, aluminum sand casting can accommodate a wide range of designs. - Strength and Durability
Aluminum is a strong and lightweight metal, and when cast using the sand casting process, it retains these properties. Aluminum sand castings are ideal for applications that require durable, high-performance parts.
The combination of cost-effectiveness, flexibility, and durability makes aluminum sand casting a popular choice across various industries.
| Benefit | Explanation |
|---|---|
| Cost-Effectiveness | Low-cost materials make this process affordable for large runs. |
| Flexibility | Capable of producing complex and large parts. |
| Strength and Durability | Aluminum retains strength and durability, ideal for demanding applications. |
11. What Are the Limitations of Aluminum Sand Casting?
While aluminum sand casting offers many advantages, it does have its limitations. For one, the surface finish of sand castings is often not as smooth as that of die-cast parts. This is because the sand mold doesn’t offer the same level of precision as other casting methods.
Additionally, aluminum sand castings can suffer from dimensional inaccuracies. This is especially true for larger parts, where the sand mold may not hold its shape as well under the pressure of the molten aluminum. It’s also harder to achieve uniform thickness across the casting, especially for thin-walled sections.
Despite these limitations, many manufacturers choose aluminum sand casting because of its low cost and versatility. For certain applications, the trade-off in surface finish and dimensional accuracy is acceptable. It’s often used in industries where high precision is not the most critical factor but cost-effectiveness and production flexibility are more important.
When compared to other casting processes, aluminum sand casting falls short in the areas of speed and surface finish quality, but it shines in producing large, complex parts at a relatively low cost.
| Limitation | Explanation |
|---|---|
| Surface Finish | The surface finish is not as smooth as die casting. |
| Dimensional Accuracy | Parts can suffer from inaccuracies and uneven thickness, especially with larger castings. |
| Speed | Sand casting is slower than other methods like die casting, making it less ideal for high-volume production. |
12. How Do Aluminum Sand Castings Compare to Die Castings?
Aluminum sand casting and die casting are two popular methods for producing aluminum parts. Both methods have their strengths and weaknesses. So, how do they compare?
- Cost
Sand casting is generally less expensive than die casting. This makes it an attractive option for low-volume production runs. Die casting requires expensive molds and machinery, which can drive up the cost for smaller runs. - Precision
Die casting tends to produce parts with higher precision and a smoother surface finish. However, it is more expensive and requires more complex molds. In contrast, sand casting is more affordable but can result in less precise dimensions and rougher surfaces. - Production Volume
Die casting is better suited for high-volume production runs, while sand casting is more commonly used for low- to medium-volume production. The initial cost of creating a mold for die casting is higher, but the process becomes more cost-effective as production volumes increase.
| Feature | Aluminum Sand Casting | Aluminum Die Casting |
|---|---|---|
| Cost | Lower, ideal for low to medium volumes. | Higher due to expensive molds and machinery. |
| Precision | Lower precision and rougher finish. | High precision and smooth surface finish. |
| Production Volume | Best for low to medium volumes. | Best for high-volume production. |
13. What Are the Environmental Considerations in Aluminum Sand Casting?
Aluminum sand casting has its environmental challenges, but it also offers several opportunities for sustainable practices.
One of the main concerns is the disposal of sand. While sand can be reused for multiple casting cycles, it eventually needs to be replaced. Fortunately, many foundries now use sand reclamation systems to clean and reuse sand, reducing waste. This practice helps to minimize the environmental impact of sand disposal and makes the process more sustainable.
Energy consumption is another environmental consideration. The furnaces used to melt aluminum require a significant amount of energy, but advancements in energy-efficient technologies have helped to mitigate this issue. Using renewable energy sources in the melting process is another way to reduce the carbon footprint of aluminum sand casting.
Overall, aluminum sand casting is becoming increasingly sustainable, with many manufacturers implementing practices that reduce waste and energy consumption. As the industry evolves, more sustainable methods are likely to emerge, making it even more eco-friendly.
| Environmental Factor | Explanation |
|---|---|
| Sand Disposal | Sand can be reused, but eventually, reclamation is needed. |
| Energy Consumption | Melting aluminum requires high energy, but improvements are being made in energy efficiency. |
| Sustainability | Reclamation and energy-efficient methods are improving the environmental impact of the process. |
14. What Are the Common Applications of Aluminum Sand Casting?
Aluminum sand casting is used in a variety of industries, from automotive to aerospace. Here are some common applications:
- Automotive
Aluminum sand castings are used to produce engine blocks, transmission cases, and other critical parts in the automotive industry. The strength and durability of aluminum make it perfect for these high-demand components. - Aerospace
Lightweight and durable aluminum parts are essential in aerospace applications, and sand casting is often used to create components like aircraft engine parts, landing gear components, and structural elements. - Construction and Machinery
Aluminum sand casting is also used to produce parts for construction machinery, industrial equipment, and more. Its versatility makes it ideal for creating large, heavy-duty parts that need to withstand demanding environments.
The ability to produce high-quality, durable parts at a reasonable cost has made aluminum sand casting a popular choice across multiple industries.
| Industry | Application |
|---|---|
| Automotive | Engine blocks, transmission cases, and other critical automotive components. |
| Aerospace | Aircraft engine parts, landing gear, and structural elements. |
| Construction and Machinery | Large machinery parts that require durability and strength. |
15. How Does Aluminum Sand Casting Contribute to Modern Manufacturing?
Aluminum sand casting plays a vital role in modern manufacturing by enabling the production of high-quality, complex parts at a reasonable cost. The flexibility of the process allows manufacturers to create custom components that meet specific design requirements, while the low cost makes it accessible for small and medium-sized businesses.
Moreover, the use of aluminum—one of the most abundant and versatile metals—helps meet the growing demand for lightweight and durable materials in industries like automotive and aerospace. Aluminum sand casting has contributed to the development of advanced machinery, vehicles, and structures by providing a reliable and cost-effective method of producing parts.
Aluminum sand casting also helps modern manufacturers maintain a competitive edge by allowing them to quickly produce prototypes and custom parts without the high upfront costs associated with other casting methods.
| Contribution | Explanation |
|---|---|
| Cost-Effective Production | Allows small to medium businesses to produce custom parts without high upfront costs. |
| Lightweight Materials | Aluminum’s lightweight properties make it perfect for high-performance applications. |
| Flexibility in Design | Custom parts can be produced quickly to meet specific design requirements. |
FAQ Section
Q1: What is the aluminum sand casting process?
The aluminum sand casting process involves pouring molten aluminum into a sand mold, allowing it to solidify and form the desired shape. The mold is then broken away to reveal the finished part.
Q2: How does the aluminum sand casting process work?
The process consists of preparing the mold, melting the aluminum, pouring it into the mold, cooling and solidifying it, and finally removing the mold to reveal the casting.
Q3: What are the advantages of using sand casting for aluminum?
Sand casting is cost-effective, versatile, and can produce complex shapes. It’s widely used in industries like automotive, aerospace, and construction.
Q4: What types of molds are used in aluminum sand casting?
The most common types of molds are green sand molds, shell sand molds, and no-bake sand molds. Each type offers different advantages depending on the application.
Q5: How do you ensure the quality of aluminum sand castings?
Quality can be improved by properly preparing the mold, controlling the pouring speed and temperature, and using post-casting treatments like heat treatment and cleaning.
