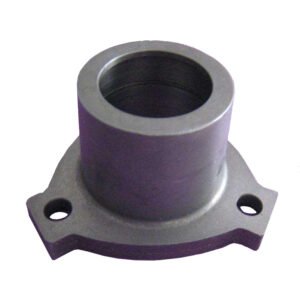

Carbon Steel Investment Casting Services

I choose carbon steel for your precision parts because it offers a unique combination of affordability and heavy-duty performance. In my 15 years of experience in the investment casting industry, I’ve found that carbon steel provides the structural integrity needed for demanding industrial environments while remaining easier to machine and heat treat than many high-alloy alternatives.

Material Properties: Strength and Ductility

Carbon steel is the workhorse of the lost wax carbon steel casting process. Its primary appeal lies in its adaptability:

• High Strength: Excellent load-bearing capabilities for structural components.
• Ductility: The ability to withstand deformation without fracturing, which is critical for safety-related parts.
• Wear Resistance: With proper heat treatment, these parts resist surface abrasion in mining and construction machinery.

Comparing Carbon Steel Variants

Not all precision carbon steel castings are created equal. I select the specific grade based on your part’s final application:

• Low Carbon Steel (e.g., AISI 1020): Offers great weldability and ductility; ideal for components that don’t require extreme hardness.
• Medium Carbon Steel (e.g., AISI 1045, WCB): The most common choice for custom carbon steel investment cast parts. It balances strength and ductility, making it perfect for valves and pump bodies.
• High Carbon & Alloy Steel (e.g., 4140): Used when extreme toughness and wear resistance are mandatory, such as in gears or heavy-duty fasteners.

Carbon Steel vs. Stainless Steel

When balancing cost and performance, carbon steel investment casting is often the more economical choice. While stainless steel offers superior corrosion resistance, carbon steel provides higher mechanical strength at a lower price point. For parts that will be painted, plated, or used in non-corrosive environments, carbon steel is the smarter investment for your budget.

Mechanical Properties of Common Grades

I utilize both silica sol investment casting and water glass methods to ensure these materials meet the strict ISO 8062 CT4 to CT6 tolerance standards. This allows me to deliver near net shape carbon steel parts that require minimal secondary machining, saving you both time and material costs.

Precision Lost Wax Carbon Steel Casting Process

We have spent over 15 years perfecting the lost wax carbon steel casting process to ensure every part meets the highest industrial standards. By using the silica sol method, we create near net shape carbon steel parts that require minimal secondary finishing, saving you time and reducing material waste.

Step-by-Step Production Walkthrough

Our workflow is designed for consistency and repeatability, ensuring that the first part is identical to the ten-thousandth.

• Wax Pattern Injection: High-precision aluminum molds are used to create exact wax replicas of your component.
• Tree Assembly: Individual patterns are attached to a central wax runner to create a “casting tree.”
• Ceramic Shell Building: The tree is dipped into a specialized slurry and coated with refractory sand. We repeat this multiple times to build a durable shell.
• Dewaxing: The shell is placed in a steam autoclave where the wax melts out, leaving a hollow cavity.
• Pouring: We melt the specific carbon steel grade in an induction furnace and pour it into the pre-heated ceramic shell.
• Knockout & Cleaning: Once cooled, the shell is vibrated off, and the custom carbon steel investment cast parts are cut from the tree and shot-blasted.

Technical Capabilities and Tolerances

Precision is the core of our business. We strictly adhere to ISO 8062 CT5-CT6 standards for linear tolerances, ensuring that complex geometries remain accurate across large production runs. Understanding the 4 types of carbon steel casting parts allows our engineers to optimize the mold design based on the specific cooling rates of the material.

Our facility is equipped to handle everything from tiny, intricate fasteners to heavy-duty structural components. By maintaining tight control over the shell-building environment and the pouring temperature, we eliminate common defects like porosity and shrinkage, providing a reliable foundation for your critical equipment.

Our Technical Specs and Carbon Steel Grades

We maintain strict control over every detail of your carbon steel investment casting projects to ensure they meet the highest industrial standards. Our technical capabilities allow us to produce precision carbon steel castings ranging from 0.01kg to 100kg with dimensions from 5mm up to 1000mm. We specialize in a variety of grades, providing the perfect balance of strength and machinability for your specific application.

Standard Dimensional Tolerances and Surface Quality

Precision is the core of our carbon steel foundry services. We deliver near-net-shape components that minimize the need for secondary processing.

• Casting Tolerances: We adhere to ISO 8062 CT4 to CT6 standards.
• Machining Precision: Our CNC facility achieves tight tolerances up to ±0.005mm.
• Surface Finish: Standard surface roughness ranges from Ra 3.2 μm to 6.3 μm, ensuring a professional look and feel for all carbon steel casting parts.

In-House Testing and Quality Assurance

To guarantee material integrity, we perform rigorous testing on-site. We don’t just ship parts; we ship documented quality.

• Chemical Analysis: We use advanced Spectrometers to verify the exact alloy composition of every heat.
• Mechanical Testing: We conduct tensile, hardness, and impact testing to confirm durability.
• Non-Destructive Testing (NDT): We utilize X-ray and Magnetic Particle Inspection (MPI) to identify internal defects or surface cracks before the parts leave our floor.

ISO 9001 Certification and Compliance

Our facility is ISO 9001:2015 certified, reflecting our commitment to consistent quality management. We follow strict inspection protocols and maintain full material traceability for every batch. Whether you need parts for high-pressure valves or heavy-duty construction machinery, our compliance with international standards ensures your components perform reliably in the field. This disciplined approach to quality is why we remain a trusted partner for global export markets.

Secondary Services for Your Carbon Steel Investment Casting Parts

We provide a full suite of secondary operations to ensure your custom carbon steel investment cast parts arrive ready for immediate assembly. While the raw casting provides the shape, our finishing services provide the exact performance and precision your project requires.

Professional Heat Treatment Options

To get the most out of your material, we offer several heat treated carbon steel castings options to modify hardness, strength, and ductility:

• Annealing & Normalizing: We use these to soften the metal for better machinability and to relieve internal stresses.
• Quenching & Tempering: This process is vital for parts needing high strength and impact resistance, balancing hardness with toughness.

Precision CNC Machining and Finishing

When your design calls for tolerances tighter than standard casting limits, our in-house machining shop takes over. We deliver precision carbon steel castings that meet your exact blueprints through:

• CNC Milling and Turning: High-speed equipment for bores, threads, and critical mating surfaces.
• Surface Preparation: Options include sandblasting, pickling, and specialized coatings to prevent corrosion and improve aesthetics.

Prototyping and Expert Tooling Design

We help you move from concept to production faster with our rapid prototyping services. By utilizing 3D-printed wax patterns and expert tooling design, we catch potential issues early. This ensures that every carbon steel investment casting we produce is optimized for both manufacturability and long-term durability in the field.

Applications for Carbon Steel Investment Casting

We provide precision carbon steel castings that stand up to the toughest environments. Because carbon steel is both versatile and cost-effective, it is the primary choice for heavy-duty industrial components across the United States. Understanding the benefits of using carbon steel in investment casting helps our clients choose the right material for their specific mechanical and environmental requirements.

Automotive and Transportation

In the automotive sector, durability is non-negotiable. We produce high-strength custom carbon steel investment cast parts designed to handle constant stress, heat, and vibration.

• Gears and Brackets: Critical for drivetrain stability and engine support.
• Shafts and Connecting Rods: Precision-engineered for high-load performance and longevity.

Oil, Gas, and Fluid Control

For pressure-containing equipment, the lost wax carbon steel casting process provides the structural integrity needed to prevent leaks and withstand extreme pressure.

• Valve Bodies: Cast to strict industrial standards to ensure safety in flow control.
• Pump Housings and Impellers: Optimized for internal fluid dynamics and superior wear resistance.

Construction and Mining Equipment

Heavy machinery requires parts that can take a beating. Our carbon steel investment casting services provide the impact resistance needed for demanding field work.

• Wear Parts: Excavator teeth, bucket components, and liners.
• Structural Components: Heavy-duty brackets, hinges, and supports for large-scale machinery.

General Industrial and Specialized Uses

Beyond heavy machinery, we support various specialized markets with precision lost wax carbon steel solutions that require high accuracy and smooth surface finishes.

• Firearm Parts: Frames, triggers, and internal components requiring tight tolerances.
• Agriculture: High-wear plow tips, fasteners, and crank components.
• Pipe Fittings: Reliable elbows, tees, and connectors for industrial plumbing and irrigation.

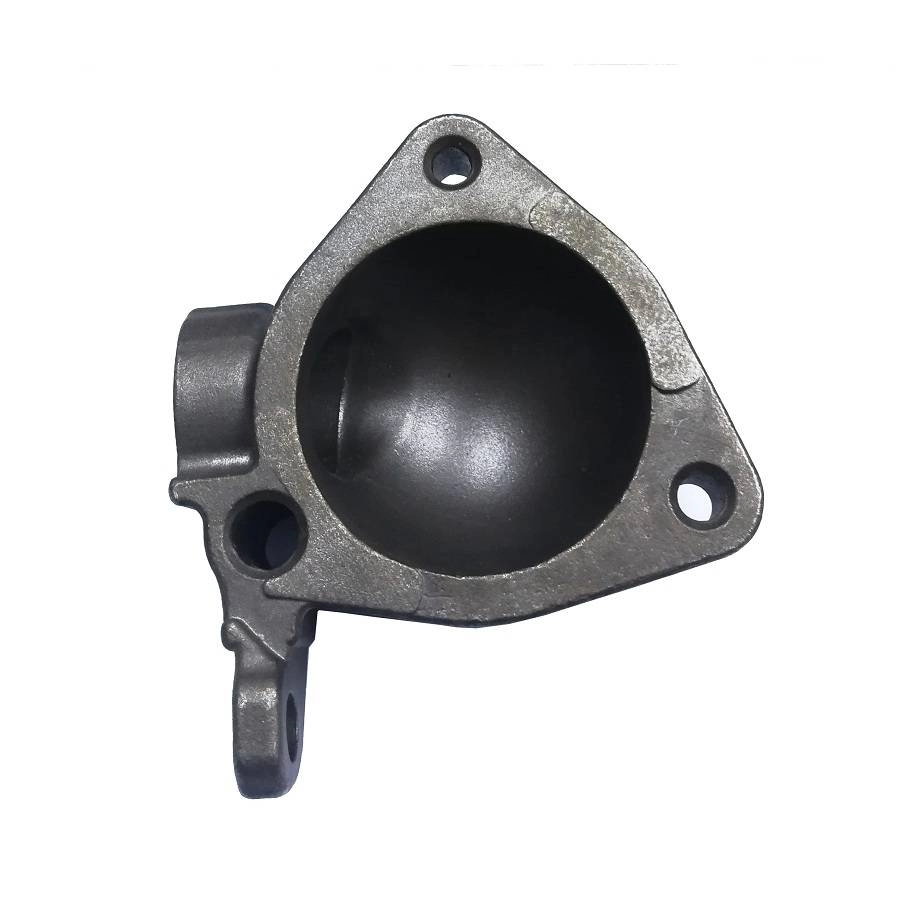

Quality Control for Carbon Steel Investment Casting

We don’t leave quality to chance. My team follows a strict, zero-defect philosophy to ensure every carbon steel investment casting meets your exact blueprints. From the initial melt to the final shipment, we maintain full control over the manufacturing environment to eliminate variables that lead to casting defects.

Strict Inspection and Material Traceability

Traceability is the backbone of our quality management system. We track every batch of raw material used in our carbon steel foundry services to ensure chemistry matches the required grade, such as WCB or AISI 1045. Knowing how to source wholesale carbon steel castings with verified material integrity is what sets us apart from high-volume, low-quality shops.

• Chemical Analysis: Every heat is tested via Spectrometer to verify elemental composition.
• Dimensional Checks: We use CMM and precision gauges to maintain ISO 8062 CT4-CT6 standards.
• Mechanical Testing: In-house labs conduct tensile, hardness, and impact testing.
• Non-Destructive Testing (NDT): We offer X-ray, Magnetic Particle Inspection (MPI), and Liquid Penetrant Testing to detect internal porosity or surface cracks.

Our Commitment to Defect-Free Delivery

We treat your project with the same precision we apply to our own tools. Our ISO 9001:2015 certified facility ensures that every precision carbon steel casting is inspected multiple times before it leaves our floor.

• 100% Visual Inspection: Every part is checked for surface finish quality (Ra 3.2 to 6.3 μm).
• Full Documentation: We provide material certificates and inspection reports with every delivery.
• Error Proofing: Our 15+ years of experience allows us to anticipate and prevent common casting issues like shrinkage or inclusions.

By integrating advanced testing with a localized understanding of US industrial standards, we deliver lost wax carbon steel casting components that are ready for immediate assembly or final machining.

Common Questions About Carbon Steel Foundry Services

When you are planning a project involving carbon steel investment casting, clear timelines and cost expectations are vital for your supply chain. We focus on providing transparent answers to help you move from design to finished part without surprises.

MOQs and Production Lead Times

We accommodate both specialized low-volume runs and high-capacity mass production. While Minimum Order Quantities (MOQs) depend on the part’s complexity and size, we remain flexible to support your growth.

• Tooling/Sampling: Typically takes 3 to 4 weeks to create the wax injection molds and provide first-article samples.
• Mass Production: Generally requires 4 to 6 weeks after sample approval, depending on the volume and any required secondary CNC machining or heat treatment.

Investment Casting vs. Sand Casting

Choosing the right method is about balancing cost and quality. While sand casting is often cheaper for massive, simple shapes, our precision carbon steel castings offer significant advantages:

• Surface Finish: We achieve Ra 3.2 μm to 6.3 μm, which is much smoother than the rough finish of sand casting.
• Tolerances: Our lost wax process hits ISO 8062 CT4 to CT6 standards, often eliminating the need for expensive secondary machining.
• Detail: We can cast thin walls and intricate geometries that sand molds simply cannot hold.

Key Factors Influencing Project Pricing

Several variables determine the final quote for your custom carbon steel investment cast parts:

• Material Grade: Standard carbon steels like WCB or AISI 1020 are more cost-effective than specialized alloy steels. Understanding the properties of high-temperature alloys versus standard carbon steel can help you decide if you are over-specifying for your application.
• Part Complexity: Intricate designs require more labor during the wax assembly and ceramic shell stages.
• Weight and Size: We handle parts from 0.01kg up to 100kg. Larger parts require more raw material and larger ceramic shells.
• Secondary Operations: In-house heat treatment, precision machining to ±0.005mm, and surface coatings (like powder coating or plating) will impact the total unit price.
