Custom Ductile Iron Casting Services With CNC Machining

Description

Custom ductile iron casting services with CNC machining, ASTM grades, ISO certified quality and one stop solutions for durable industrial components.

Ductile Iron Casting Specifications

I focus on delivering high-performance nodular cast iron that meets the most demanding industrial requirements. By controlling the magnesium inoculation process, I ensure superior graphite nodularity, giving our castings the strength of steel combined with the excellent machinability of iron.

International Material Standards

I manufacture to various global specifications, ensuring your parts are interchangeable and compliant with international projects.

Key Mechanical Properties

• Tensile Strength: Optimized for high-pressure environments, ensuring the spheroidal graphite (SG) iron resists structural failure.
• Yield Strength: I maintain strict control over the pearlitic matrix to ensure components withstand high loads without permanent deformation.
• Ductility & Elongation: Unlike gray iron, my ductile iron castings offer significant stretching capabilities, providing a safety buffer against sudden brittle fractures.

Custom Alloying for Extreme Environments

I offer specialized chemical compositions to match your specific operating conditions:

• Low-Temperature Impact: I utilize ferritic ductile iron grades to maintain toughness in sub-zero climates, preventing cracks in Arctic or high-altitude applications.
• High-Wear Resistance: By adjusting the manganese and chromium content, I produce castings with increased surface hardness for mining and construction equipment.
• Corrosion Resistance: Custom silicon and nickel additions are available for enhanced stability in chemically aggressive environments.

Advanced Ductile Iron Casting Processes & Capabilities

Our ductile iron foundry leverages specialized molding technologies to produce high-integrity nodular cast iron components. We focus on delivering near-net-shape casting results that significantly reduce secondary machining time and material waste. By integrating modern industrial casting techniques, we ensure every part meets the strict durability and performance requirements of the North American market.

Our Core Casting Methods

• Resin Sand Casting: Best for large, complex geometries requiring a superior surface finish and high dimensional stability.
• Pre-coated Sand Casting (Shell Mold Casting): The preferred method for small to medium parts requiring tight tolerances and intricate detail.
• Green Sand Casting: A highly cost-effective, high-volume solution for heavy-duty industrial components.

Technical Capacity & Specs

We maintain strict control over the magnesium inoculation process to guarantee optimal graphite nodularity across all ductile iron castings. Our proven foundry processes allow us to pour parts that handle extreme pressure and structural loads with ease.

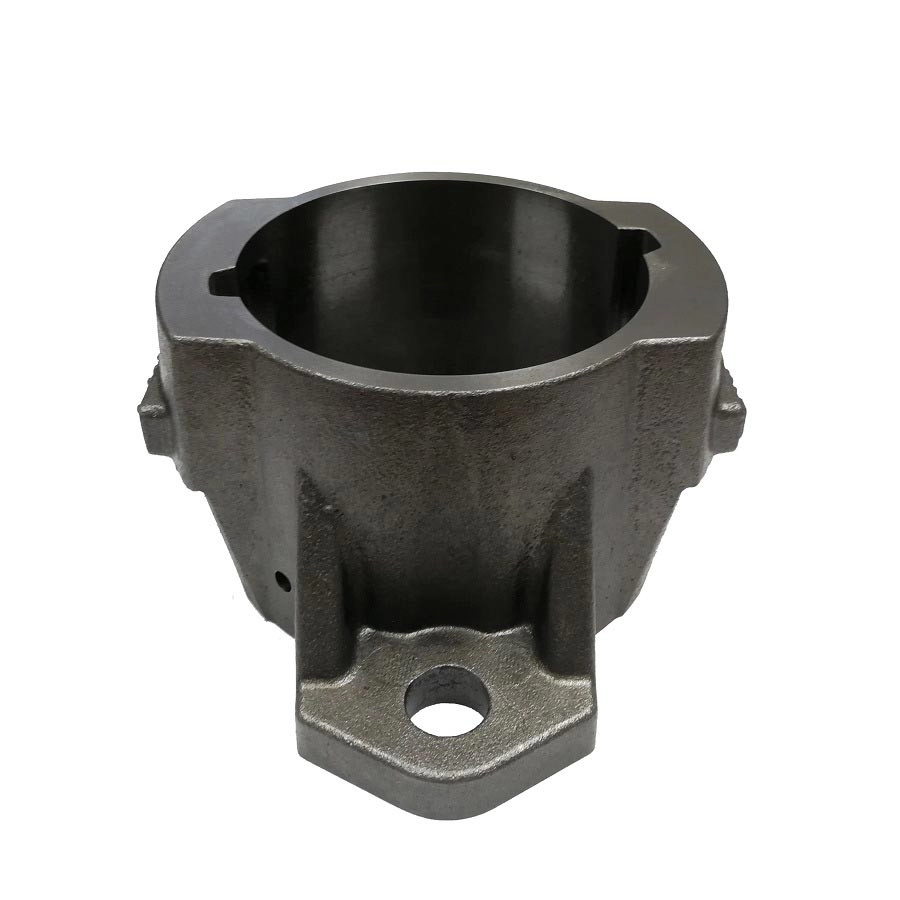

Integrated CNC Machining & Secondary Operations

We provide more than just raw pours. To deliver a complete near-net-shape casting solution, our facility integrates full-scale CNC machining. This allows us to transform high-quality Spheroidal Graphite (SG) iron into machined casting components that are ready for immediate assembly upon arrival at your plant. By handling everything under one roof, we tighten the supply chain and maintain strict accountability over the final dimensions.

High-Precision Machining Capabilities

Our machine shop is optimized for the unique characteristics of ductile iron casting, ensuring we hit tight tolerances according to ISO 2768 standards.

• Precision Turning & Milling: Multi-axis equipment for complex geometries and smooth surface finishes.
• Boring & Drilling: High-accuracy hole placement and internal diameter finishing for hydraulic and mechanical interfaces.
• Tapping & Threading: Standard and custom threading for secure component integration.

---

Custom Heat Treatment Services

To achieve the perfect balance of tensile strength vs. ductility, we offer specialized heat treatments. These processes allow us to modify the pearlitic or ferritic matrix of the iron to meet your specific application needs.

By utilizing these advanced secondary operations, we ensure your precision-machined parts meet the rigorous demands of the U.S. industrial market. We focus on eliminating the “extra step” for our clients, providing finished products that match your 2D and 3D technical drawings exactly.

Quality Control & Inspection Protocols

We take a zero-compromise approach to the quality of every ductile iron casting that leaves our foundry. Reliability for us is a measurable metric, strictly verified through advanced laboratory testing and high-precision measurement.

Chemical & Physical Verification

Our process begins with a chemical analysis using an Optical Emission Spectrometer to analyze every melt. We ensure the magnesium inoculation is precise, achieving the specific graphite nodularity required for superior strength. To confirm the mechanical integrity of our nodular cast iron, we perform:

• Tensile & Yield Strength Testing: Ensuring the part handles the required working load without failure.
• Brinell Hardness Testing: Verifying the pearlitic matrix or ferritic structure meets your wear requirements.
• Charpy Impact Testing: Essential for ensuring the impact resistance of parts used in low-temperature environments.

Maintaining these strict standards is just as critical as understanding cast steel production properties and composition when choosing the right material for heavy-duty industrial use.

---

Non-Destructive Testing (NDT) & Dimensional Accuracy

For high-stakes applications in the automotive or hydraulic sectors, we look beneath the surface. We utilize Ultrasonic Testing (UT), Magnetic Particle Inspection (MPI), and X-ray to detect internal porosity, cracks, or inclusions that aren’t visible to the naked eye.

ly, we guarantee dimensional precision using CMM (Coordinate Measuring Machines) and 3D laser scanning. This ensures every ductile iron casting meets the tightest tolerances outlined in your technical drawings.

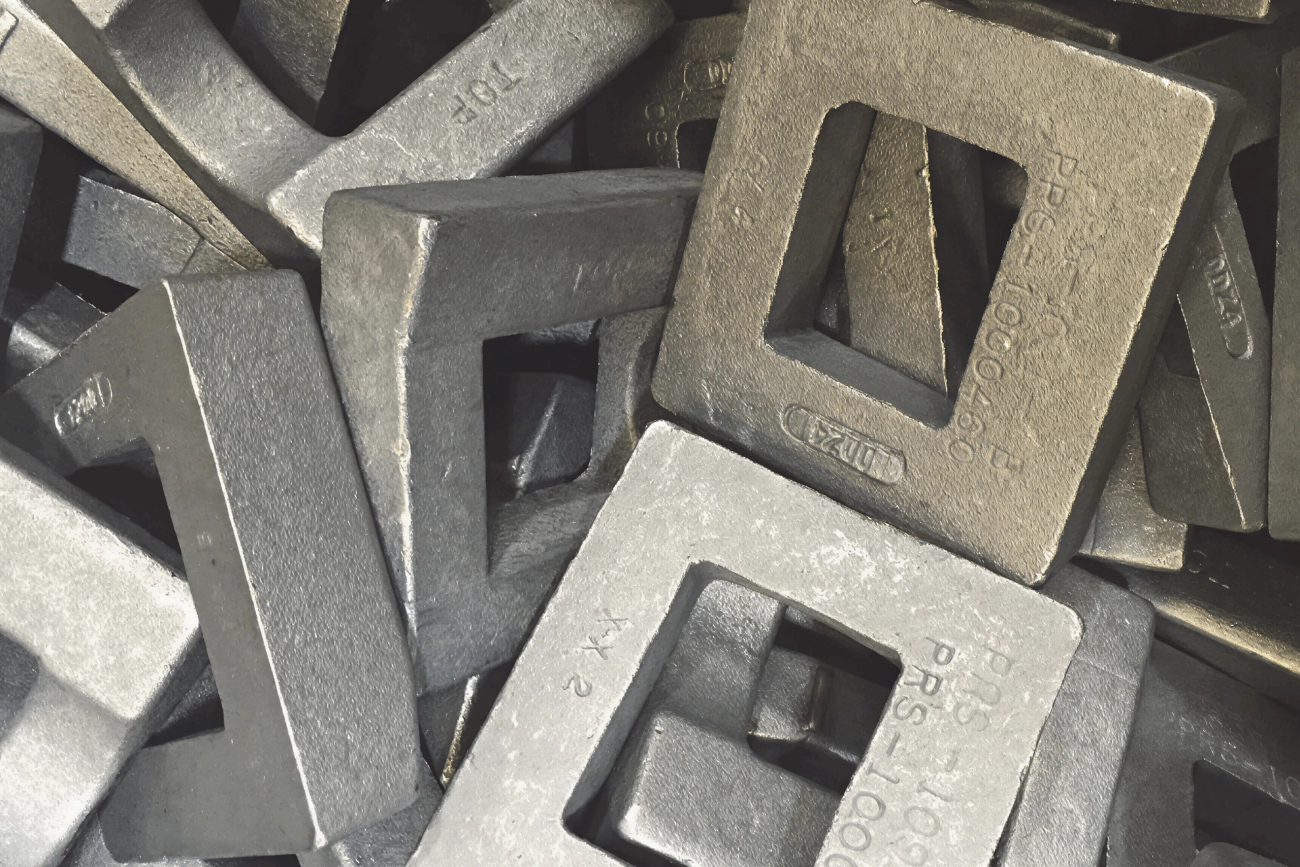

Key Industry Applications for Ductile Iron

Our ductile iron castings serve as the structural backbone for critical infrastructure across the United States. By leveraging the superior impact resistance and vibration damping of Nodular Cast Iron, we deliver components that outperform standard gray iron in high-stress environments.

Fluid Power and Flow Control

We manufacture high-durability components for the water, oil, and gas sectors where leak-proof performance is mandatory.

• Pump Housings & Valve Bodies: Engineered to handle high internal pressures without deformation.
• Impellers: Precision-cast to ensure hydraulic balance and long-term wear resistance.

Automotive and Transportation

In the automotive world, the strength-to-weight ratio of Spheroidal Graphite (SG) Iron makes it a preferred choice over heavy steel forgings.

• Control Arms & Steering Knuckles: Critical safety components that require high fatigue strength.
• Driveline Components: Reliable brackets and mounts that absorb road shock and engine vibration.

Agriculture and Heavy Equipment

Farmers and operators need machinery that won’t fail in the field. Our castings, often enhanced by specialized heat treatment services, provide the toughness required for heavy-duty cycles.

• Agricultural Gearbox Housings: Robust protection for tractor transmissions and power take-offs.

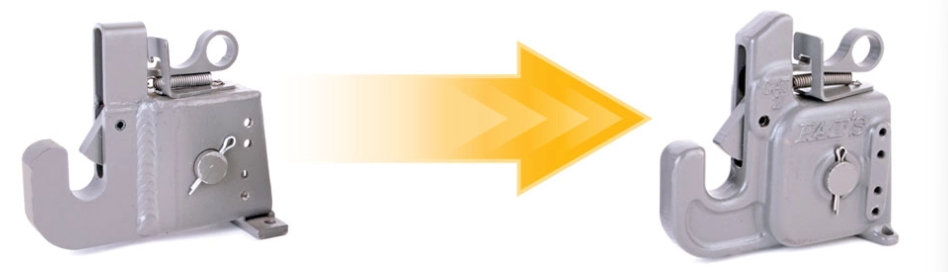

• Tractor Components: Support brackets and hitch parts designed for maximum towing capacity.

Construction and Mining

For the toughest jobs on earth, we provide ductile iron castings that stand up to abrasive materials and extreme hydraulic forces.

• Wear Plates: High-hardness components for mining crushers and earthmovers.
• Hydraulic Manifolds: Complex internal geometries cast to near-net-shape to manage high-pressure fluid circuits in excavators.
• Suspension Parts: Heavy-duty joints for off-road construction vehicles.

Surface Finishing & Protective Coatings

Every ductile iron casting we produce is finished to meet the rigorous environmental demands of the American market. Our process begins with professional shot blasting to the Sa 2.5 standard, effectively removing all foundry scale and oxidation to create the ideal surface profile for superior coating adhesion.

High-Performance Protective Solutions

We provide a variety of finishing options designed to enhance the longevity and aesthetics of your nodular iron components:

• Electrophoresis (E-coat): This provides 100% coverage even for complex internal geometries, offering excellent corrosion resistance as a standalone finish or a high-quality primer.
• Powder Coating: A thick, durable layer that provides high impact resistance and is available in a wide range of custom colors.
• Hot-Dip Galvanizing: The gold standard for parts exposed to the elements, ensuring long-term rust prevention in construction and agricultural environments.
• Primer Painting & Anti-Rust Oil: We offer industrial primers for secondary finishing or specialized anti-rust oils to protect machined surfaces during international transit and warehouse storage.

Our commitment to quality ensures that every part is delivered ready for immediate assembly or installation. You can stay informed on our latest quality benchmarks and foundry production updates to see how we maintain these high standards.

Why Partner With Our Ductile Iron Foundry?

We provide end-to-end solutions for ductile iron castings, moving beyond simple production to offer full engineering support and logistical reliability. Our focus is on delivering high-performance nodular cast iron components that meet the rigorous standards of the United States industrial market.

Choosing the right partner means finding a facility that understands which casting process is the most important commercially for your specific application, ensuring both cost-efficiency and part integrity.

Engineering & Technical Expertise

We simplify the transition from design to production. Our team provides comprehensive OEM/ODM expertise, working directly with your native files to ensure every detail is captured before the first pour.

• Complete Drawing Support: We accept and process 2D and 3D files, including STEP, IGS, and PDF formats.
• Prototyping to Production: Seamless scaling from initial samples to high-volume manufacturing.
• Material Optimization: Advice on selecting the right Spheroidal Graphite (SG) Iron grade to balance weight and strength.

Quality Assurance & Global Logistics

Our facility is built on a foundation of reliability. We adhere strictly to ISO 9001:2015 quality management systems to ensure every batch of ductile iron casting meets your mechanical requirements and dimensional tolerances.

Whether you need complex housings or heavy-duty structural parts, we integrate precision and artistry in top CNC machining projects to deliver finished, ready-to-install components. We combine short lead times with competitive B2B pricing to keep your supply chain moving without compromising on quality or performance.

Ductile Iron Casting FAQ

Answers to the most common technical questions about ductile iron casting and how we handle production for our B2B partners.

What is the difference between ductile iron and gray iron?

The main difference is the shape of the graphite. In gray iron, graphite forms flakes, which makes the metal brittle and prone to cracking. In nodular cast iron, we add magnesium to turn those flakes into spheres. This spheroidal graphite (SG) iron structure allows the metal to bend and resist impact without snapping, offering much higher durability for high-stress parts.

Which ASTM A536 grade is best for high-impact applications?

For environments where impact resistance is critical, ASTM A536 65-45-12 is the industry standard. It provides a perfect balance of tensile strength and ductility. If your application requires even higher toughness or operates in cold temperatures, grade 60-40-18 is the best choice due to its superior elongation properties.

Can you provide fully machined, ready-to-install components?

Yes. We deliver complete machined casting components that are ready for your assembly line. Our facility features precision CNC centers for milling, boring, and drilling to meet tight tolerances. Many of our clients who utilize our specialized casting services benefit from our ability to handle both the foundry work and secondary machining under one roof, which simplifies the supply chain.

How do you ensure graphite nodularity during casting?

We maintain strict control over the magnesium inoculation process to ensure the graphite forms correctly. Our quality team performs:

• Thermal Analysis: Real-time testing of the molten metal before pouring.
• Spectrometer Checks: Verifying the chemical composition of every heat.
• Microstructure Inspection: Confirming that graphite nodularity meets or exceeds 85% to guarantee part integrity.

What are your typical lead times for custom tooling and production?

We focus on keeping your projects on schedule with predictable timelines:

• Design & Tooling: 3 to 4 weeks for mold creation and initial samples.
• Mass Production: 4 to 6 weeks depending on order volume and machining requirements.
• Shipping: We offer various logistics options to ensure your ductile iron castings arrive at your US facility on time and within budget.
