What is Shell Mould Casting (The Croning Process)?
Shell mould casting, also known as the Croning process, is a high-precision manufacturing technique that utilizes a resin-coated sand mixture and a heated metal pattern to form a hardened shell. At Precisionvast, we’ve mastered this process to provide a superior “middle ground” in the foundry industry, offering a high-performance alternative for parts that require more detail than traditional casting can provide.
The Strategic “Middle Ground”
We position shell molding as the ideal solution for projects that demand high accuracy without the premium price tag of investment casting:
- Cost-Effective: Achieves high-volume efficiency with lower overhead than lost-wax methods.
- Superior Precision: Delivers much tighter tolerances and better dimensional stability than standard sand casting.
- Reduced Finishing: The smooth “shell” surface results in a near-net shape output, drastically cutting down on secondary machining costs.
The Precisionvast Advantage
With over 20 years of expertise, we specialize in the intricate management of complex geometries and high-performance alloys. We understand the priorities of the US market—reliability, precision, and ROI. Our team ensures that every casting meets rigorous structural standards, providing engineers and procurement specialists with a dependable, factory-direct solution for their most demanding applications.
Shell Mould Casting Technical Specifications & Design Parameters
When you choose shell mould casting, you are investing in a process that bridges the gap between basic sand casting and high-end investment casting. We focus on tight dimensional casting tolerance (DCT) and superior surface quality to ensure your parts are ready for assembly with minimal post-processing.
Key Performance Standards
Our production lines are optimized to hit specific engineering benchmarks that satisfy the rigorous demands of the US industrial market.
| Parameter | Specification |
|---|---|
| Dimensional Tolerance | ISO 8062-3 (DCTG 6-8) |
| Surface Roughness ($Ra$) | 3.2 to 6.3 $mu m$ |
| Weight Range | 0.5kg to 50kg (1.1 lbs to 110 lbs) |
| Minimum Wall Thickness | 3mm (Aluminum) / 5mm (Steel) |
Precision and Surface Quality
- Surface Roughness ($Ra$): Achieving a smooth surface roughness ($Ra$) of 3.2 to 6.3 $mu m$ is a hallmark of our process. This level of detail drastically cuts down on secondary CNC machining costs.
- Design Flexibility: We handle complex geometries that traditional methods struggle with. For projects involving heavier materials, our expertise in carbon steel precision casting ensures that even parts with a 5mm wall thickness maintain perfect structural integrity.
- Tolerance Control: By adhering to ISO 8062-3 standards, we provide the repeatability needed for high-volume automotive and hydraulic components.
- Near-Net Shape: Our goal is to deliver parts as close to the final dimensions as possible, reducing waste and lead times for your project.

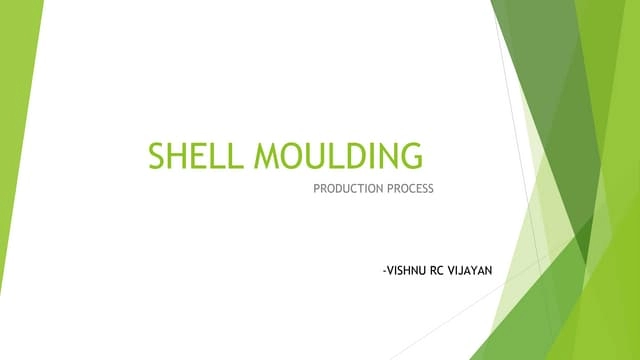

The 6-Step Shell Mould Casting Workflow
At Precisionvast, we treat shell mould casting as an exact science. Our workflow ensures that every component—from complex gears to thin-walled housings—meets the highest industrial standards through a repeatable, high-precision process.
1. Pattern Preparation
The process begins with high-quality metal pattern equipment, typically machined from Aluminum or Iron. We preheat these patterns to a precise range of 230°C to 340°C to ensure the resin reacts correctly upon contact.
2. Shell Formation (Dump Box Inversion)
We utilize a phenolic resin binder mixed with high-purity silica sand. Using the dump box inversion method, the sand-resin mixture is applied to the heated pattern. The heat causes the thermosetting sand to bond, forming a durable 5–10mm shell that captures every intricate detail of the design.
3. Curing and Hardening
The shell remains on the pattern and moves into a high-temperature oven. This curing stage fully polymerizes the resin, giving the mold the structural integrity needed to withstand the pressure of molten metal without deforming.
4. Mold Assembly & Shell Core Production
Once cured, the shell halves are stripped from the pattern. If the part requires internal cavities, we integrate shell core production into the assembly. The two halves are then securely clamped or bonded together to prevent parting line mismatch and maintain tight tolerances.

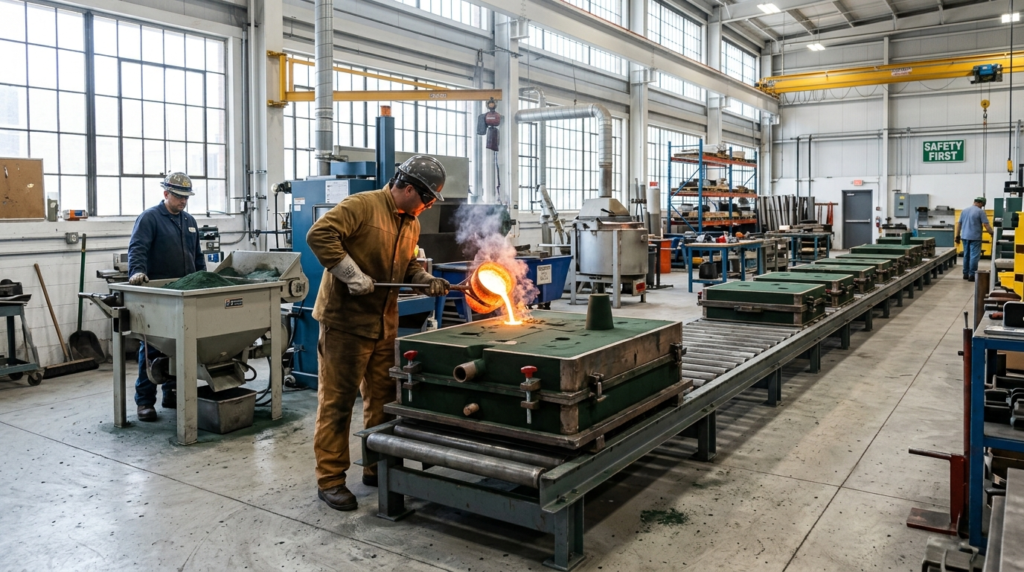

5. The Controlled Pour
We use induction melting to prepare the specific alloy. Because we work with diverse materials, understanding the best heat-resistant metals for high-temperature applications is critical to managing thermal expansion and ensuring a clean fill during the pour.
6. Shakeout and Cleaning
After the metal solidifies, the shell is broken away. The casting undergoes shot blasting and cleaning to remove any remaining sand, leaving a smooth surface finish that often eliminates the need for secondary machining.
Workflow at a Glance
| Stage | Key Action | Result |
|---|---|---|
| Pattern | Heat to 230°C+ | Optimal resin activation |
| Molding | Dump Box Inversion | Consistent 5–10mm shell thickness |
| Assembly | Clamping & Core Setting | Precision internal/external geometries |
| Finishing | Shot Blasting | Near-net shape surface quality |
Material Versatility in Shell Mould Casting
Our shell mould casting facility is designed to handle both ferrous and non-ferrous casting with surgical precision. We select specific sand-resin ratios to ensure the mold integrity matches the metallurgical needs of each unique alloy, providing a reliable foundation for high-performance components.
Common Alloys We Pour
| Material Category | Specific Grades | Primary Applications |
|---|---|---|
| Cast Iron | Gray Iron (HT200-300), Ductile Iron | Automotive gears, cylinder blocks |
| Steels | Carbon & High-Alloy Steels | Heavy machinery, wear-resistant parts |
| Stainless Steel | 304, 316, 17-4 PH | High-temperature alloy casting for fluid handling |
| Aluminum | 300 & 400 Series | Aerospace impellers, electronic housings |
- Cast Iron Performance: We produce ductile iron components that provide the superior toughness and vibration damping required for high-stress automotive environments.
- Corrosion Resistance: Our team specializes in stainless steel grades that demand the smooth surface finish only a high-quality phenolic resin binder system can provide.
- Specialized Steel Alloys: For heavy-duty industrial applications, our carbon and alloy steels offer the high-wear resistance necessary for long-term field durability.
- Aerospace Aluminum: For complex geometries like impellers, our shell molding ensures thin-wall integrity and lightweight strength that meets strict aviation standards.
By matching the right alloy with our specialized molding process, we deliver near-net shape parts that are ready for service with minimal post-pour machining.

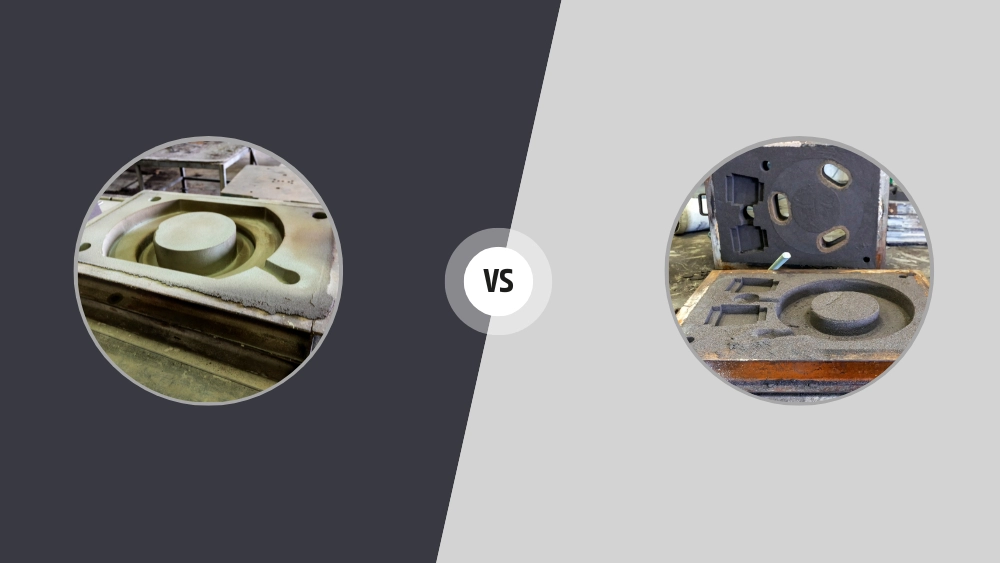

Why Choose Shell Mould Casting Over Sand Casting?
While green sand casting is a reliable workhorse for simple, bulky parts, shell mould casting is the superior choice for high-precision components that require a “near-net shape.” We focus on this process because it bridges the gap between the rough finish of sand casting and the high cost of investment casting. By using a rigid, resin-bonded shell, we ensure your parts remain dimensionally stable throughout the entire cooling process.
Key Performance Advantages
- Significant Machining Savings: Because we achieve tighter tolerances and a smoother surface finish, your secondary CNC machining costs are slashed. Most parts require only minimal finishing on critical mating surfaces.
- Superior Dimensional Stability: The thermosetting sand mixture resists thermal expansion better than traditional damp sand. This prevents “mold wall movement,” ensuring the grades of carbon steel castings we produce meet your exact specs every time.
- Automated Consistency: Unlike manual sand molding, our shell process is highly automated. This makes it the ideal solution for high-volume production runs where part-to-part consistency is mandatory.
Comparison: Shell Moulding vs. Green Sand Casting
| Feature | Green Sand Casting | Shell Mould Casting |
|---|---|---|
| Surface Roughness ($Ra$) | 12.5 – 25 $mu m$ | 3.2 – 6.3 $mu m$ |
| Dimensional Accuracy | Low to Moderate | High (ISO 8062-3) |
| Minimum Wall Thickness | 6mm+ | 3mm – 5mm |
| Machining Allowance | Heavy (3-5mm) | Minimal (1-2mm) |
| Production Scalability | Manual/Labor Intensive | High/Automated |
By choosing shell mould casting, you aren’t just buying a raw part; you are investing in a more efficient manufacturing workflow that reduces waste and speeds up your assembly line.
