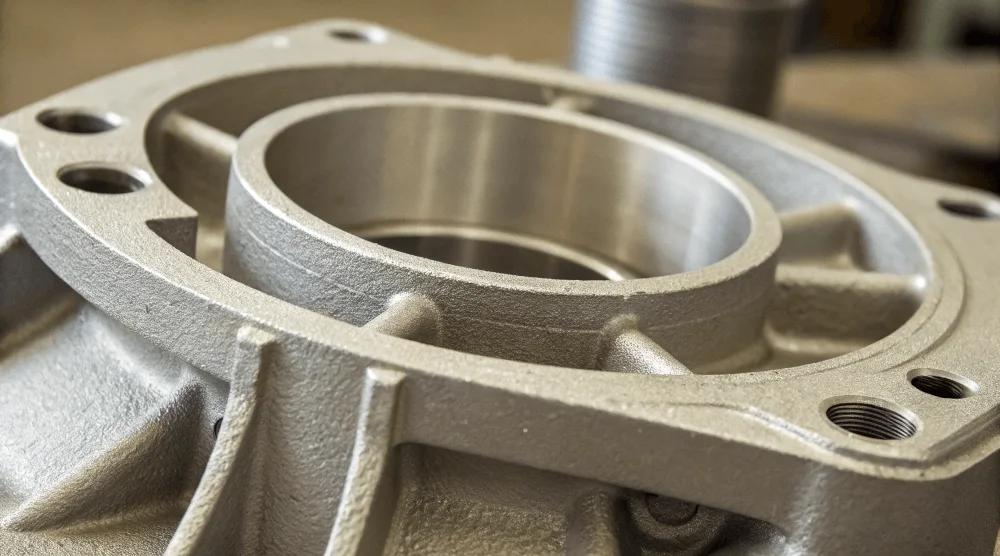

Low pressure die casting is a widely used method for creating precise metal components with minimal defects. However, many businesses struggle to understand how this process works and how it benefits production. This guide will help demystify the process, explaining its advantages and applications.
Low pressure die casting is a method used for creating high-quality metal parts by injecting molten metal into a mold under controlled pressure. This technique provides a solution for industries requiring precision and minimal defects.
Many manufacturers face challenges with traditional casting methods that struggle to meet the precision or quality standards needed for complex designs. Low pressure die casting overcomes these issues by allowing for a higher level of control and more detailed results. Let’s take a deeper dive into how it works and why it could be the solution you’ve been looking for.
1. What is Low Pressure Die Casting?
Low pressure die casting is a method in which molten metal is injected into a mold under low pressure. This differs from high-pressure die casting by using a lower force, resulting in reduced defects and a higher-quality finish for parts.
Low pressure die casting works by introducing molten metal into the mold cavity under low pressure, which helps ensure high precision and better quality casting.
The benefits of low pressure die casting include high-strength castings, better surface finish, and the ability to create parts with thin walls and complex geometries. Here’s a breakdown of the process:
Process Steps:
- Melting: The metal is heated to a molten state.
- Injection: The molten metal is injected into the mold under low pressure.
- Cooling: The part cools in the mold.
- Ejection: Once cooled, the part is removed from the mold.
| Step | Description | Time Required |
|---|---|---|
| Melting | Metal is heated to molten state | 30-45 minutes |
| Injection | Molten metal injected into mold under low pressure | 1-2 seconds |
| Cooling | The part solidifies within the mold | 2-3 minutes |
| Ejection | Part is removed from the mold | 1 minute |
2. How Does Low Pressure Die Casting Work?
Low pressure die casting involves a controlled injection process that differs from high-pressure die casting. The molten metal is injected at a lower pressure, which minimizes the risk of defects, such as air pockets and material fractures.
Low pressure die casting works by forcing molten metal into a mold under controlled pressure, resulting in higher-quality parts with fewer defects.
To understand its efficiency, we break down the main steps and advantages of using low pressure in die casting. The key is ensuring that the metal fills the mold evenly, without excessive turbulence. Here’s how it plays out:
Low Pressure Die Casting Method:
- Metal is heated: First, the metal is melted in a furnace.
- Controlled injection: The molten metal is then injected under low pressure into a metal mold, often using gravity to aid in the process.
- Solidification: The mold cools, solidifying the metal.
- Part ejection: Once solidified, the part is removed from the mold, ready for finishing.
Why Low Pressure Matters:
- Lower Defects: The slow injection process allows air pockets to escape, resulting in a smoother finish.
- Better Quality: Parts produced have better density and fewer imperfections compared to high-pressure castings.
| Process Step | Low Pressure Die Casting | High Pressure Die Casting |
|---|---|---|
| Injection Speed | Slow, controlled injection | Fast, rapid injection |
| Defects | Fewer defects, smooth finish | More defects, rough finish |
| Material Strength | Higher density, strong parts | Lower density, weaker parts |
3. Why Choose Low Pressure Die Casting Over Other Methods?
Choosing low pressure die casting offers several advantages over other casting methods, such as high-pressure die casting or sand casting. It provides superior precision, fewer defects, and cost savings on high-volume production runs.
Low pressure die casting is preferable because it reduces defects, improves part quality, and is more cost-efficient for larger production runs.
The method is particularly beneficial for industries that require high precision but don’t want the high costs associated with high-pressure die casting. Let’s explore why this method is often chosen over others:
Comparison with Other Casting Methods:
| Method | Advantages | Disadvantages |
|---|---|---|
| Low Pressure Die Casting | High precision, fewer defects, cost-efficient | Limited to specific materials |
| High Pressure Die Casting | Quick production, strong parts | High costs, more defects |
| Sand Casting | Flexible, inexpensive | Poor finish, lower precision |
4. What Are the Key Benefits of Low Pressure Die Casting?
Low pressure die casting provides several key benefits that make it an attractive option for businesses producing high-quality parts. These benefits include fewer defects, the ability to create thin-walled parts, and reduced waste.
The benefits of low pressure die casting are numerous, including better quality, fewer defects, and reduced costs.
Low pressure die casting is highly valued for its ability to produce intricate and complex parts with a high degree of precision. It also offers a more affordable alternative for mass production compared to other casting methods.
Key Benefits:
- Reduced Defects: Parts are made with fewer air bubbles or fractures.
- High Precision: Allows for complex and detailed designs.
- Cost-Effective: Ideal for high-volume production.
| Benefit | Impact |
|---|---|
| Reduced Defects | Fewer air pockets, smoother surface |
| High Precision | Can produce complex and detailed parts |
| Cost-Effective | Lower material waste, cheaper production |
5. What Are the Main Applications of Low Pressure Die Casting?
Low pressure die casting is used in many industries, including automotive, aerospace, and medical, where precision and durability are required for manufacturing components.
Low pressure die casting is applied in industries like automotive, aerospace, and medical, where high-quality, durable components are needed.
Applications in Various Industries:
| Industry | Application Examples |
|---|---|
| Automotive | Engine blocks, transmission housings |
| Aerospace | Aircraft components, structural parts |
| Medical | Surgical instruments, medical devices |
6. How to Choose the Right Equipment for Low Pressure Die Casting?
Selecting the right equipment for low pressure die casting is critical to ensure the production of high-quality parts. The right die casting machine can improve efficiency, reduce defects, and enhance overall product quality.
Choosing the right equipment involves assessing the production volume, material type, and complexity of the parts to be cast.
To make the most of your investment, it’s important to consider various factors when choosing equipment. The quality of the die casting machine directly impacts the precision of the cast parts and the overall productivity of the process. Here’s a guide to help in selecting the right equipment:
Factors to Consider:
- Production Volume: Higher volumes may require more automated equipment.
- Material Compatibility: Make sure the equipment is compatible with the specific metals or alloys you intend to use.
- Part Complexity: Machines with higher capabilities are necessary for more intricate designs.
- Machine Size and Capacity: Choose machines with adequate capacity to handle the size and complexity of the parts.
| Equipment Factor | Consideration | Impact on Production |
|---|---|---|
| Production Volume | High or low volume production needs | Higher volume requires more automation and precision |
| Material Compatibility | Suitable for specific alloys (e.g., aluminum, magnesium) | Ensures material strength and quality |
| Part Complexity | Complexity of the design or geometry | More complex parts need advanced equipment |
| Machine Capacity | Size and weight handling capacity | Affects the maximum size of parts produced |
7. What Materials Are Used in Low Pressure Die Casting?
Low pressure die casting can use a variety of materials, with the most common being aluminum, zinc, and magnesium. Each material offers distinct advantages depending on the intended application.
The most common materials for low pressure die casting include aluminum, zinc, and magnesium, each chosen for their unique properties.
These materials are ideal for manufacturing lightweight yet durable parts that meet the stringent requirements of industries such as automotive, aerospace, and medical. Here’s a comparison of these materials in terms of their suitability for different applications:
Material Comparison:
| Material | Properties | Common Applications |
|---|---|---|
| Aluminum | Lightweight, corrosion-resistant, good thermal conductivity | Automotive parts, engine components |
| Zinc | Good strength, high ductility, cost-effective | Consumer electronics, die castings |
| Magnesium | High strength-to-weight ratio, low density | Aerospace, military applications |
8. What Are the Key Challenges in Low Pressure Die Casting?
While low pressure die casting offers many advantages, it also comes with its own set of challenges. These include the potential for defects, mold wear, and the need for precise temperature control during production.
Challenges such as defects, mold maintenance, and temperature control can affect the quality of cast parts.
Addressing these challenges requires careful planning and adherence to best practices. The following sections will explore common problems in low pressure die casting and how to resolve them:
Common Challenges:
- Defects: Issues like porosity, surface blemishes, and air pockets.
- Mold Wear: Molds can degrade over time due to high heat and pressure.
- Temperature Control: Maintaining the correct temperature during casting is crucial for achieving the desired material properties.
| Challenge | Cause | Solution |
|---|---|---|
| Defects | Air pockets, improper cooling | Optimize pressure and cooling rates |
| Mold Wear | Heat and mechanical stress | Regular mold maintenance and material selection |
| Temperature Control | Inconsistent mold temperature | Implement automated temperature monitoring systems |
9. How Do Tooling and Mold Design Impact Low Pressure Die Casting?
Tooling and mold design are critical to achieving the best results in low pressure die casting. Poor design can lead to defects, reduced precision, and higher production costs.
A well-designed mold is essential for achieving precision, reducing defects, and ensuring consistent quality in cast parts.
The mold design should consider factors like material flow, cooling rates, and part ejection. Tooling, which includes dies and inserts, must be designed for durability and ease of maintenance to ensure consistent performance.
Tooling and Mold Design Considerations:
| Consideration | Impact | Solutions |
|---|---|---|
| Material Flow | Ensures even distribution of molten metal | Proper gating and venting design |
| Cooling Rates | Affects the final part strength and quality | Optimized cooling channels in the mold |
| Part Ejection | Easier removal of the part, reduces defects | Smooth mold surface and appropriate ejection pins |
10. How Does Low Pressure Die Casting Affect Material Properties?
Low pressure die casting affects the properties of the material being cast, such as strength, surface finish, and material density. The casting process can be adjusted to achieve desired characteristics based on the specific application.
Low pressure die casting improves material properties by ensuring consistent density, high strength, and better surface finishes.
When the molten metal is injected under low pressure, it allows for more controlled cooling, which can positively influence the strength and durability of the final product. By managing cooling rates and injection pressure, manufacturers can enhance specific material properties.
Impact on Material Properties:
| Property | Effect of Low Pressure Die Casting | Applications Affected |
|---|---|---|
| Material Density | Higher density reduces the likelihood of defects | Aerospace, automotive parts requiring high strength |
| Strength | Controlled cooling enhances material strength | Engine components, structural parts |
| Surface Finish | Smoother finish with fewer defects | Medical devices, precision instruments |
By understanding these challenges and implementing solutions such as optimized tooling design and temperature control, manufacturers can maximize the benefits of low pressure die casting, ensuring the production of high-quality parts.
11. How Does Low Pressure Die Casting Compare to Sand Casting?
Low pressure die casting and sand casting are two popular casting methods, each with its unique advantages. While low pressure die casting offers better precision and fewer defects, sand casting is more versatile and cost-effective for simple designs.
Low pressure die casting offers superior quality and precision compared to sand casting, making it the better choice for high-volume production and complex designs.
While sand casting is typically more affordable for small-scale production and simple parts, it falls short in producing the high-quality, intricate parts that low pressure die casting can achieve. Let’s take a closer look at how these two methods compare:
Comparison of Low Pressure Die Casting and Sand Casting:
| Property | Low Pressure Die Casting | Sand Casting |
|---|---|---|
| Precision | High precision with fewer defects | Lower precision, more defects |
| Cost | More expensive, suitable for mass production | More cost-effective for small-scale runs |
| Complexity | Ideal for complex designs and intricate parts | Better suited for simpler parts |
| Material Variety | Limited to specific alloys | Wider range of materials can be used |
12. What Are the Environmental Impacts of Low Pressure Die Casting?
Low pressure die casting, like any industrial process, has an environmental footprint. However, this method can be more sustainable than others by minimizing waste and energy consumption.
Low pressure die casting has a lower environmental impact compared to high-pressure die casting, making it a more sustainable choice for mass production.
The process is more energy-efficient and produces less material waste, making it an attractive option for companies looking to reduce their environmental footprint. However, steps can still be taken to further enhance sustainability, such as using recyclable materials and optimizing energy use in the casting process.
Environmental Impact Comparison:
| Impact Area | Low Pressure Die Casting | Other Die Casting Methods |
|---|---|---|
| Energy Consumption | More energy-efficient | Higher energy usage due to rapid injection |
| Material Waste | Reduced waste, optimized filling | Higher material waste and defects |
| Recyclability | More recyclable materials used | Limited recycling options |
13. How Can Low Pressure Die Casting Help With Product Design?
Low pressure die casting offers significant advantages in product design. It allows designers to create complex, lightweight, and highly durable parts without the limitations seen in other casting methods.
Low pressure die casting supports intricate and detailed product designs, giving designers more freedom to innovate and produce high-performance parts.
The method is ideal for manufacturing parts that require both high precision and minimal weight, making it suitable for industries such as automotive and aerospace. It also allows for the use of thin-walled designs and geometries that would be impossible with traditional casting methods.
Design Advantages:
| Design Feature | Low Pressure Die Casting | Traditional Casting Methods |
|---|---|---|
| Complexity | Allows for highly complex and detailed designs | Limited by mold and tooling constraints |
| Material Weight | Can produce lightweight parts with strong properties | Heavier parts due to material limitations |
| Durability | Stronger parts due to controlled cooling | Lower strength and durability in many cases |
14. What Are the Cost Factors in Low Pressure Die Casting?
When evaluating the cost of low pressure die casting, it’s important to consider factors such as equipment, material, labor, and mold maintenance. While the upfront costs may be higher, the benefits for high-volume production often outweigh the investment.
The costs associated with low pressure die casting are driven by the need for specialized equipment, high-quality materials, and skilled labor, but the savings from reduced defects and increased production efficiency make it cost-effective in the long run.
For manufacturers, cost optimization is essential, and understanding these key cost drivers can help make better financial decisions. The initial investment in machinery can be offset by the cost savings achieved through higher-quality output and reduced waste.
Cost Breakdown:
| Cost Factor | Low Pressure Die Casting | Other Casting Methods |
|---|---|---|
| Initial Equipment Cost | Higher initial investment | Lower upfront costs |
| Material Cost | Higher-grade materials, reduced waste | Less expensive materials, more waste |
| Labor Costs | Requires skilled labor for precision work | Lower labor cost for simpler processes |
15. What Are the Latest Advancements in Low Pressure Die Casting Technology?
Recent advancements in low pressure die casting technology have focused on improving efficiency, automation, and material usage. These innovations are helping manufacturers streamline operations, reduce costs, and improve the quality of their cast parts.
Advancements in low pressure die casting have led to more efficient processes, greater automation, and improved part quality, helping manufacturers stay competitive in a demanding market.
Technological improvements include the use of automated systems for temperature control, robotic handling of cast parts, and improvements in mold materials. These innovations are crucial for companies looking to maintain high production volumes while reducing defects and operational costs.
Technological Advancements:
| Innovation | Impact on Production | Benefits |
|---|---|---|
| Automated Systems | Enhances precision and speed | Reduces labor costs, increases efficiency |
| Robotic Handling | Streamlines part removal and transport | Reduces human error, increases safety |
| Advanced Mold Materials | Improves mold durability and lifespan | Reduces mold wear, lowers maintenance costs |
These advancements enable manufacturers to keep up with growing demands while maintaining a focus on quality, efficiency, and cost-effectiveness. By adopting these technologies, businesses can continue to capitalize on the benefits of low pressure die casting.
Conclusion
Low pressure die casting is an essential technique for manufacturers who need high-quality, precision parts at a reasonable cost. By offering superior accuracy and fewer defects, it is an ideal solution for high-volume production runs. Whether you’re in the automotive, aerospace, or medical industry, this method can help ensure that your products meet the highest standards.
By adopting low pressure die casting, you can streamline your production processes and achieve high-quality results with minimal defects. Consider incorporating this method into your operations to enhance production efficiency and product quality.
FAQ Section
- Q1: What is low pressure die casting?
Low pressure die casting is a casting process that uses controlled low pressure to inject molten metal into a mold, creating precise parts with fewer defects. - Q2: How does low pressure die casting work?
The process works by injecting molten metal into a mold cavity under low pressure, helping the metal flow smoothly and produce parts with a better finish and fewer defects. - Q3: What are the benefits of low pressure die casting?
The main benefits are fewer defects, high precision, and cost-efficiency, especially for mass production of complex parts. - Q4: What materials are used in low pressure die casting?
Common materials include aluminum, zinc, and magnesium, each with its own set of properties suited for different applications. - Q5: What industries use low pressure die casting?
Low pressure die casting is widely used in automotive, aerospace, and medical industries for producing high-quality, durable components.
