Sand casting is a crucial method used in metalworking to create complex parts in industries like automotive, aerospace, and construction. But how does it actually work, and what makes it so effective?
Sand casting involves creating molds from sand to pour molten metal into, forming shapes. It is highly versatile and cost-effective, making it an excellent option for producing durable metal components.
The process of sand casting is fascinating, and understanding its steps and benefits will help you choose the right manufacturing method for your needs. Let’s dive into the details.
1. What is Sand Casting?
Sand casting is one of the oldest and most common methods for producing metal castings. It involves creating a mold from sand, which is then filled with molten metal to form a shape. While the process has evolved over time, it remains a go-to solution for many manufacturers due to its simplicity and versatility.
The sand casting process is cost-effective, flexible, and capable of producing complex shapes, making it ideal for industries like automotive and aerospace.
Let’s break down the components involved in sand casting and how it all comes together to form a finished product.
The Sand Casting Process
- Mold Preparation: The first step is creating the mold. Sand is compacted around a pattern to form a cavity in the shape of the desired part.

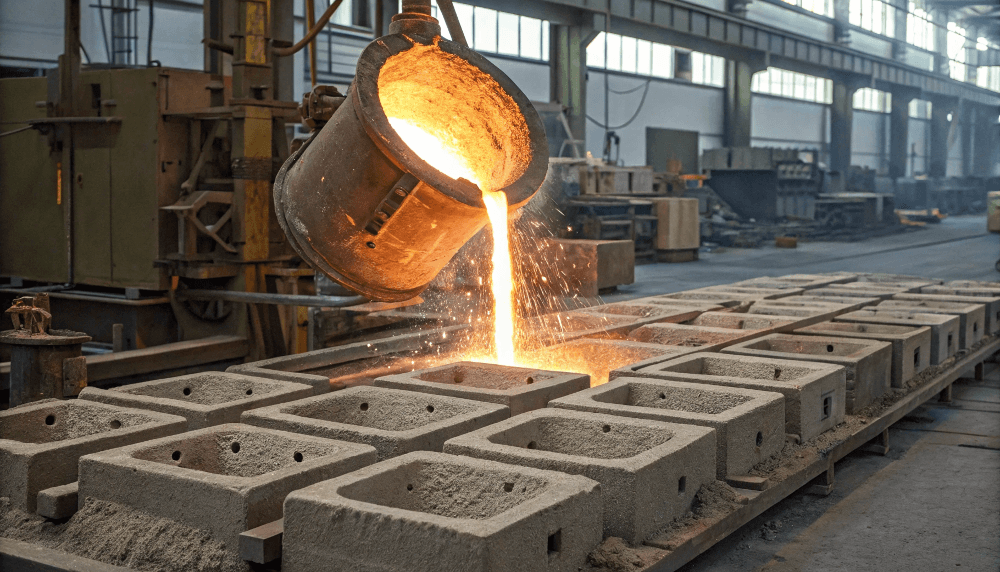

- Metal Pouring: Once the mold is ready, molten metal is poured into it. The metal cools and solidifies, taking the shape of the mold.
- Mold Removal: After cooling, the mold is broken away to reveal the cast metal part.
Sand casting allows for intricate designs, and the mold can be reused, making it a cost-effective method for large-scale production.
Types of Sand Used
The quality of sand is crucial for the casting process. The most commonly used types of sand include green sand, which contains moisture and clay, and resin-bonded sand, which provides more precise results.
Table 1: Types of Sand Used in Sand Casting
| Sand Type | Composition | Advantages | Applications |
|---|---|---|---|
| Green Sand | Sand, clay, and water | Cost-effective, reusable | General casting, automotive parts |
| Resin-Bonded Sand | Sand, resin binder | High precision, better detail | Aerospace, fine components |
| No-Bake Sand | Sand and chemical binders | Minimal shrinkage, smooth surface | Industrial and large-scale casting |
2. How Does Sand Casting Work?
The sand casting process is straightforward but requires precision. Understanding the steps in more detail will show how it remains one of the most popular techniques for creating metal parts.
Sand casting works by creating a mold from sand, adding molten metal, and then allowing it to cool and solidify into the desired shape.
Creating the Mold
The mold is made by packing sand around a pattern, which is a model of the part you want to create. After the mold is made, it’s left to dry and harden.
Pouring Molten Metal
Once the mold is set, molten metal (such as aluminum or iron) is poured into it. The metal fills the cavity formed by the sand mold and takes on the shape of the pattern.
Cooling and Solidification
The molten metal is left to cool and solidify inside the mold. This process can take several hours, depending on the size of the casting. Once solidified, the metal part is removed, and the mold is broken apart.
The precision with which the mold is made will determine the quality of the final casting.
Table 2: Sand Casting Process Overview
| Step | Description | Key Equipment | Average Duration |
|---|---|---|---|
| Mold Preparation | Pattern is packed into sand to create mold cavity | Sand compaction machine | 1-2 hours |
| Metal Pouring | Molten metal poured into mold cavity | Furnace, ladle | Minutes (varies by size) |
| Cooling and Solidifying | Metal cools and solidifies | Cooling racks, air cooling | Hours to overnight |
| Mold Removal | Breaking or removing the mold | Vibrators, manual labor | 1-2 hours after solidification |
Key Benefits of Sand Casting
- Cost-effective: Sand is inexpensive and reusable.
- Versatility: Sand casting can produce parts of various sizes and shapes.
- Complex Shapes: Sand molds can be made to create intricate designs that would be difficult to produce with other casting methods.
3. What Are the Benefits of Sand Casting?
Sand casting offers numerous advantages, making it a preferred method for many industries. Let’s explore why it continues to be a popular choice for manufacturers.
Sand casting is cost-effective, versatile, and able to produce complex shapes. These benefits make it an excellent option for many manufacturing needs.
Cost-Effectiveness
One of the main reasons sand casting remains popular is its cost-effectiveness. The materials, such as sand and binder, are relatively inexpensive, and the molds can be reused multiple times, reducing production costs.
Versatility
Sand casting can be used to produce parts of virtually any size, from small components to large, heavy-duty parts used in machinery. It’s perfect for industries that require a wide variety of products with complex geometries.
Capability for Complex Shapes
Unlike other casting methods, sand casting allows for complex and intricate shapes. This capability makes it ideal for industries such as aerospace and automotive, where precision and design complexity are essential.
Applications in Multiple Industries
Sand casting is used in a variety of industries, including:
- Automotive: For engine blocks, pistons, and other parts.
- Aerospace: For components like turbine blades and aircraft frames.
- Construction: For structural elements and machinery parts.
Table 3: Key Benefits of Sand Casting
| Benefit | Description | Industries |
|---|---|---|
| Cost-Effective | Uses inexpensive materials, reusable molds | Automotive, construction |
| Versatility | Can produce a wide range of part sizes and types | Aerospace, mining |
| Complex Shapes | Can create intricate designs | Aerospace, automotive |
The versatility of sand casting makes it suitable for both large and small-scale productions, allowing manufacturers to meet various needs.
4. What Are the Types of Sand Casting?
Sand casting has various types that offer different benefits depending on the needs of the project. Each type uses a slightly different method for creating the mold, which can affect the final product’s quality and detail. Understanding these types will help you choose the right approach for your casting needs.
The type of sand casting you choose can affect factors like precision, speed, and cost.
Green Sand Casting
Green sand casting is the most commonly used form of sand casting. It uses a mixture of sand, clay, and water to form the mold. The mold is not fully dried, so it remains “green” and flexible.
Shell Molding
Shell molding uses fine sand and a binder to create a thinner, more precise mold. This method is ideal for parts that require high precision, such as components for the aerospace industry.
No-Bake Molding
No-bake molding uses a chemical binder to form the mold, which hardens without baking. This method is quick and can be used for large parts with intricate designs.
Table 4: Types of Sand Casting and Their Characteristics
| Type | Description | Advantages | Best For |
|---|---|---|---|
| Green Sand | Uses a mixture of sand, clay, and water | Low cost, reusable mold | General casting, automotive |
| Shell Molding | Fine sand mixed with binder for high precision | Precise, smooth finish | Aerospace, high-detail parts |
| No-Bake Molding | Chemical binder hardens the mold without baking | Fast production, minimal shrinkage | Large parts, intricate designs |
5. What Materials Are Used in Sand Casting?
The materials chosen for sand casting are crucial to the quality and durability of the final part. Sand, metal, and binder materials must be carefully selected based on the specific requirements of the part being produced.
The materials used in sand casting must provide sufficient strength, durability, and thermal conductivity to handle the molten metal.
Sand Types
- Silica Sand: The most common sand used for casting due to its availability and high melting point.
- Chromite Sand: Used for high-quality castings and specific applications where high temperatures are involved.
Metals Used in Sand Casting
- Aluminum: Commonly used due to its light weight and good casting characteristics.
- Iron: Offers durability and strength for industrial parts.
- Steel: Ideal for high-strength parts but requires higher melting temperatures.
Table 5: Materials Used in Sand Casting
| Material Type | Common Use in Sand Casting | Properties | Ideal For |
|---|---|---|---|
| Silica Sand | Standard sand in green sand casting | High melting point, good durability | General purpose casting |
| Chromite Sand | High-precision castings | High temperature resistance | Aerospace, specialized castings |
| Aluminum | Lightweight, corrosion-resistant parts | Lightweight, good fluidity | Automotive, consumer goods |
| Iron | Strong, durable castings | High strength, wear resistance | Industrial machinery, parts |
| Steel | High strength, high performance | Tough, good mechanical properties | Heavy-duty equipment |
6. What Is the Role of the Mold in Sand Casting?
In sand casting, the mold is a crucial component because it forms the shape of the final product. The mold is made from sand, which can be shaped and manipulated to create even the most complex designs.
The mold is what gives the cast part its shape, and the precision of the mold directly affects the quality of the final casting.
Mold Design
The mold design must be created based on the part specifications. This includes the shape, size, and any details like holes or intricate patterns that need to be incorporated.
Mold Components
- Pattern: The replica of the part is used to create the mold cavity.
- Core: An insert used to create hollow areas within the casting.
- Gating System: A network of channels that guides the molten metal into the mold.
Table 6: Key Mold Components in Sand Casting
| Mold Component | Description | Function |
|---|---|---|
| Pattern | Replica of the part | Creates the cavity for molten metal |
| Core | Insert placed inside the mold cavity | Forms hollow areas in the part |
| Gating System | Channels that lead molten metal into the mold | Ensures proper flow of metal into the mold |
7. How Are Sand Casting Molds Created?
Creating a sand casting mold requires a series of precise steps to ensure that the final part will meet the desired specifications. The process is both technical and hands-on.
Mold creation involves shaping sand around a pattern and ensuring the mold has the necessary strength and stability to hold the molten metal.
Pattern Making
Patterns are often made from materials like wood or metal. These patterns are used to form the mold by pressing them into the sand. Once the mold is formed, the pattern is removed.
Core Making
For parts with hollow sections, cores are placed inside the mold cavity to create the desired voids.
Sand Compaction
The sand is compacted around the pattern and core to create a strong, durable mold that will hold up under the heat of the molten metal.
Table 7: Sand Casting Mold Creation Process
| Process Step | Description | Key Tools/Materials | Time Required |
|---|---|---|---|
| Pattern Making | Creating a pattern from material such as wood or metal | Pattern, wood, metal | 1-2 hours |
| Core Making | Making cores to create hollow areas in the casting | Sand, binder materials | 30 minutes to 1 hour |
| Sand Compaction | Compacting the sand around the pattern and core | Sand compaction equipment | 1-2 hours |
8. What Are the Common Defects in Sand Casting?
Despite being a reliable casting method, sand casting can still lead to defects if not executed properly. Understanding common defects can help prevent costly mistakes and improve production quality.
Common defects in sand casting include porosity, shrinkage, and surface imperfections. Identifying and addressing these defects early will save time and resources.
Types of Defects
- Porosity: Air pockets formed in the casting, leading to weak spots.
- Shrinkage: Occurs when the molten metal cools and contracts, leaving voids.
- Surface Defects: Imperfections on the surface of the casting, often due to mold material or metal impurities.
Causes of Defects
- Incorrect sand preparation
- Inconsistent metal pouring
- Insufficient mold strength
Table 8: Common Sand Casting Defects
| Defect Type | Description | Causes | Solutions |
|---|---|---|---|
| Porosity | Air pockets formed inside the metal | Poor mold preparation, air in the metal | Improve mold compaction, degas the metal |
| Shrinkage | Voids caused by metal contraction during cooling | Cooling rate, mold design | Use risers, control cooling rate |
| Surface Defects | Imperfections on the casting surface | Impurities, mold issues | Refine sand quality, inspect mold |
9. How is the Sand Casting Mold Removed?
After the molten metal has cooled and solidified, the next step is removing the mold to reveal the cast part. This is a delicate process that requires careful handling to avoid damaging the finished product.
Mold removal is crucial for ensuring that the final cast part is not damaged and that it meets the required specifications.
Methods of Mold Removal
- Breaking: The mold is simply broken apart to reveal the part.
- Vibrating: A mechanical vibrating process is used to shake the sand away from the casting.
- Air Blasting: In some cases, compressed air is used to remove fine sand particles from the part.
Table 9: Mold Removal Methods
| Method | Description | Equipment Needed | Best For |
|---|---|---|---|
| Breaking | Mold is manually or mechanically broken apart | Manual labor, hammers | Small to medium castings |
| Vibrating | Vibrators used to shake sand away from casting | Vibrating machines | Larger castings, complex shapes |
| Air Blasting | Compressed air is used to remove fine sand | Compressed air system | Delicate parts, fine details |
10. What Are the Finishing Steps After Sand Casting?
After the sand casting is complete, several finishing steps must be taken to ensure that the part meets the required specifications and quality standards. These steps remove any excess material, smooth the surface, and ensure the final casting is ready for use.
Finishing steps are essential to enhance the quality and performance of the final part, ensuring it is free from defects and ready for its intended application.
Removing Excess Material
- Gate and Runner Removal: The gate and runner system used to pour molten metal into the mold must be cut away.
- Cleaning: The part is cleaned to remove any remaining sand or metal residues from the casting.
Surface Finishing
- Grinding: Excess material and surface imperfections are ground down to create a smooth finish.
- Polishing: The part is polished to a high gloss if a smoother surface is required.
Inspection and Testing
Once the part is finished, it undergoes thorough inspection to ensure it meets dimensional and quality specifications. Testing can include visual inspection, dimensional measurements, and sometimes even X-ray analysis.
Table 10: Sand Casting Finishing Steps
| Step | Description | Equipment Needed | Time Required |
|---|---|---|---|
| Gate and Runner Removal | Removing the channels used for pouring metal | Cutting tools, saws | 1-2 hours |
| Cleaning | Removing sand and metal residue | Brushes, water jets | 1-2 hours |
| Grinding and Polishing | Smoothing and finishing the surface | Grinding wheels, polishing tools | 2-4 hours |
| Inspection | Checking for defects and dimensions | Measuring tools, inspection machines | 1-2 hours |
11. What Industries Use Sand Casting?
Sand casting is a versatile and widely used process in many industries. From producing small components for consumer goods to large structural parts for heavy machinery, sand casting plays a crucial role in various sectors.
Sand casting is employed in multiple industries due to its ability to produce both simple and complex metal parts at a relatively low cost.
Automotive Industry
The automotive industry relies heavily on sand casting to produce parts like engine blocks, pistons, and crankshafts. These parts require strength, precision, and durability, all of which sand casting provides.
Aerospace Industry
The aerospace industry uses sand casting to produce critical components like turbine blades and engine housings. The ability to produce intricate, high-strength parts makes sand casting ideal for aerospace applications.
Construction and Mining
In the construction and mining industries, sand casting is used to create large, heavy-duty components such as machinery parts, gears, and structural supports.
Table 11: Industries Using Sand Casting
| Industry | Common Products Produced | Key Requirements |
|---|---|---|
| Automotive | Engine blocks, pistons, crankshafts | Strength, durability, precision |
| Aerospace | Turbine blades, engine housings | High-performance, lightweight |
| Construction | Structural components, machinery parts | Heavy-duty, strong materials |
12. How Can Sand Casting Be Improved?
While sand casting is an effective method, ongoing improvements in technology and material science continue to enhance the process. These improvements help increase efficiency, reduce defects, and ensure higher-quality parts.
Continuous innovation in sand casting technology is making the process more efficient, precise, and environmentally friendly.
Modern Advancements
- 3D Printing: Some manufacturers now use 3D printing technology to create sand molds, improving precision and reducing the need for traditional pattern-making.
- Automated Systems: Automation is helping reduce manual labor, increase production speeds, and improve mold consistency.
Sustainable Practices
- Recycled Sand: More companies are reusing sand from previous castings to reduce waste.
- Energy-Efficient Furnaces: The use of more energy-efficient furnaces helps lower the carbon footprint of sand casting operations.
Table 12: Improvements in Sand Casting Technology
| Improvement | Description | Impact |
|---|---|---|
| 3D Printing | Using 3D printers for mold creation | Increased precision, reduced pattern costs |
| Automated Systems | Implementing robots and machines for molding | Higher efficiency, fewer defects |
| Recycled Sand | Using sand from previous castings | Reduced waste, lower costs |
| Energy-Efficient Furnaces | Using more efficient furnaces for melting metal | Reduced energy consumption |
13. What Are the Costs Associated with Sand Casting?
The costs of sand casting depend on several factors, including the materials used, the size and complexity of the part, and the scale of production. Understanding these cost factors will help you make more informed decisions when choosing sand casting for your projects.
While sand casting is generally cost-effective, several factors can impact the final cost, including part size, material choice, and mold complexity.
Factors Affecting Cost
- Material Costs: The type of metal and sand used can significantly affect the overall cost of casting.
- Size and Complexity: Larger and more complex parts require more time and resources to produce, increasing the cost.
- Production Volume: Larger production runs often reduce the per-part cost, while small-scale production can be more expensive.
Table 13: Cost Factors in Sand Casting
| Factor | Impact on Cost | Possible Solutions |
|---|---|---|
| Material Costs | The cost of metals and sand used | Choosing cost-effective metals |
| Size and Complexity | Larger, more complex parts cost more | Optimizing part design for efficiency |
| Production Volume | Higher volume reduces cost per unit | Using automation for large-scale production |
14. How to Choose a Sand Casting Supplier?
Choosing the right supplier is essential for ensuring high-quality, cost-effective parts. When selecting a sand casting supplier, several factors should be considered to make sure they meet your needs.
Selecting the right supplier will help you maintain production efficiency, ensure part quality, and minimize delays in your project.
Key Factors to Consider
- Experience and Expertise: Choose a supplier with experience in the specific type of sand casting you need.
- Quality Control: Make sure the supplier has stringent quality control measures in place.
- Lead Times: Consider the supplier’s ability to meet deadlines and deliver on time.
Table 14: Factors for Choosing a Sand Casting Supplier
| Factor | Considerations | Key Questions to Ask |
|---|---|---|
| Experience and Expertise | Experience with the type of casting required | “What types of parts have you cast in the past?” |
| Quality Control | Inspections, testing procedures | “What quality control steps do you take?” |
| Lead Times | Ability to meet delivery deadlines | “What is your typical lead time?” |
15. What Are the Future Trends in Sand Casting?
The future of sand casting looks promising, with advancements in technology and materials driving its evolution. The adoption of new techniques and sustainability practices is likely to shape the industry for years to come.
As technology evolves, sand casting will continue to improve in efficiency, precision, and environmental impact.
Emerging Technologies
- AI and Machine Learning: AI could be used to optimize mold design and predict casting defects before they occur.
- Advanced Materials: New alloys and sand materials are being developed to improve casting quality and reduce environmental impact.
Sustainability
- Green Sand Casting: Green sand casting, which uses less energy and fewer resources, is expected to become more widely adopted.
- Carbon Footprint Reduction: As industries focus on sustainability, sand casting will continue to evolve toward greener practices.
Table 15: Future Trends in Sand Casting
| Trend | Description | Potential Impact |
|---|---|---|
| AI and Machine Learning | Using AI to optimize designs and reduce defects | Improved efficiency and quality |
| Advanced Materials | New materials that improve casting quality | Stronger, more efficient castings |
| Green Sand Casting | Using eco-friendly sand materials | Reduced environmental impact |
Conclusion
In conclusion, sand casting is an incredibly valuable process in the world of manufacturing. It’s cost-effective, versatile, and capable of creating complex shapes that other methods might struggle with. Understanding how sand casting works will help you determine if it’s the right solution for your next project.
If you are looking for a reliable casting process that combines cost-efficiency and precision, sand casting might just be what you need.
Table 16: Applications of Sand Casting in Industries
| Industry | Common Products Produced | Casting Requirements |
|---|---|---|
| Automotive | Engine blocks, transmission cases | Durability, precision |
| Aerospace | Turbine blades, aircraft frames | High-performance, lightweight |
| Construction | Structural components, machinery | Heavy-duty, strong materials |
FAQ
Q1: What is sand casting?
Sand casting is a metal casting process where sand is used to form molds for molten metal. It is commonly used in industries like automotive, aerospace, and construction for producing complex metal parts.
Q2: How does sand casting work?
In sand casting, a pattern is used to create a mold out of sand. Molten metal is poured into the mold, where it cools and solidifies. Once the metal is hardened, the mold is broken to reveal the finished part.
Q3: What are the benefits of sand casting?
Sand casting is cost-effective, versatile, and capable of producing intricate shapes. It is ideal for manufacturing large parts in industries such as automotive, aerospace, and construction.
Q4: What materials are used in sand casting?
Sand casting typically uses sand as the mold material, along with binders to hold the sand together. Various metals such as aluminum, steel, and iron are used for the casting.
Q5: What industries use sand casting?
Sand casting is widely used in industries such as automotive, aerospace, construction, and mining, where durable and complex metal parts are required.
